APEX AD10 IO Line Installation#
The adapter cable can connect different types or quantities of pin interfaces, and can also expand the functions of the device without replacing the device. The following introduces the installation methods of the most commonly used 48 - pin and 32 - pin adapter cables of the miivii series products:
48PIN#
32PIN#
Installation and Usage Instructions#
Installation Sequence: Install the 48PIN adapter cable with the orange interface first from left to right (determined by the orientation of the buckle. If the 32PIN is installed first, the buckle position will be blocked when installing the 48PIN).

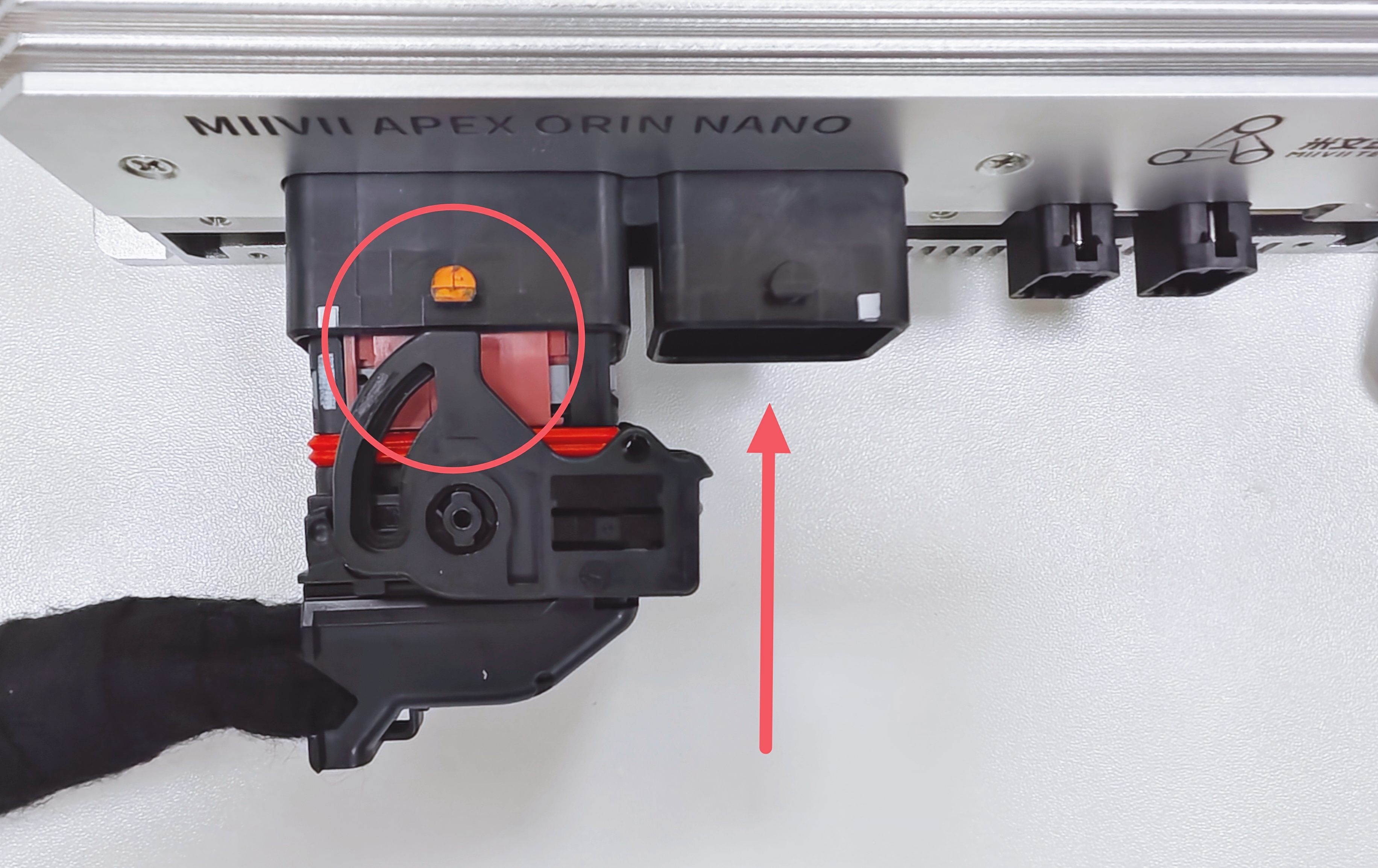

As shown in the figure, facing the front of the device, align the flat end of the buckle with the semi - circular protrusion, and push it in horizontally in the direction shown in the figure.
Hold the wire terminal firmly, and with the other hand, rotate the area in the circle shown in the figure clockwise by 90 degrees.

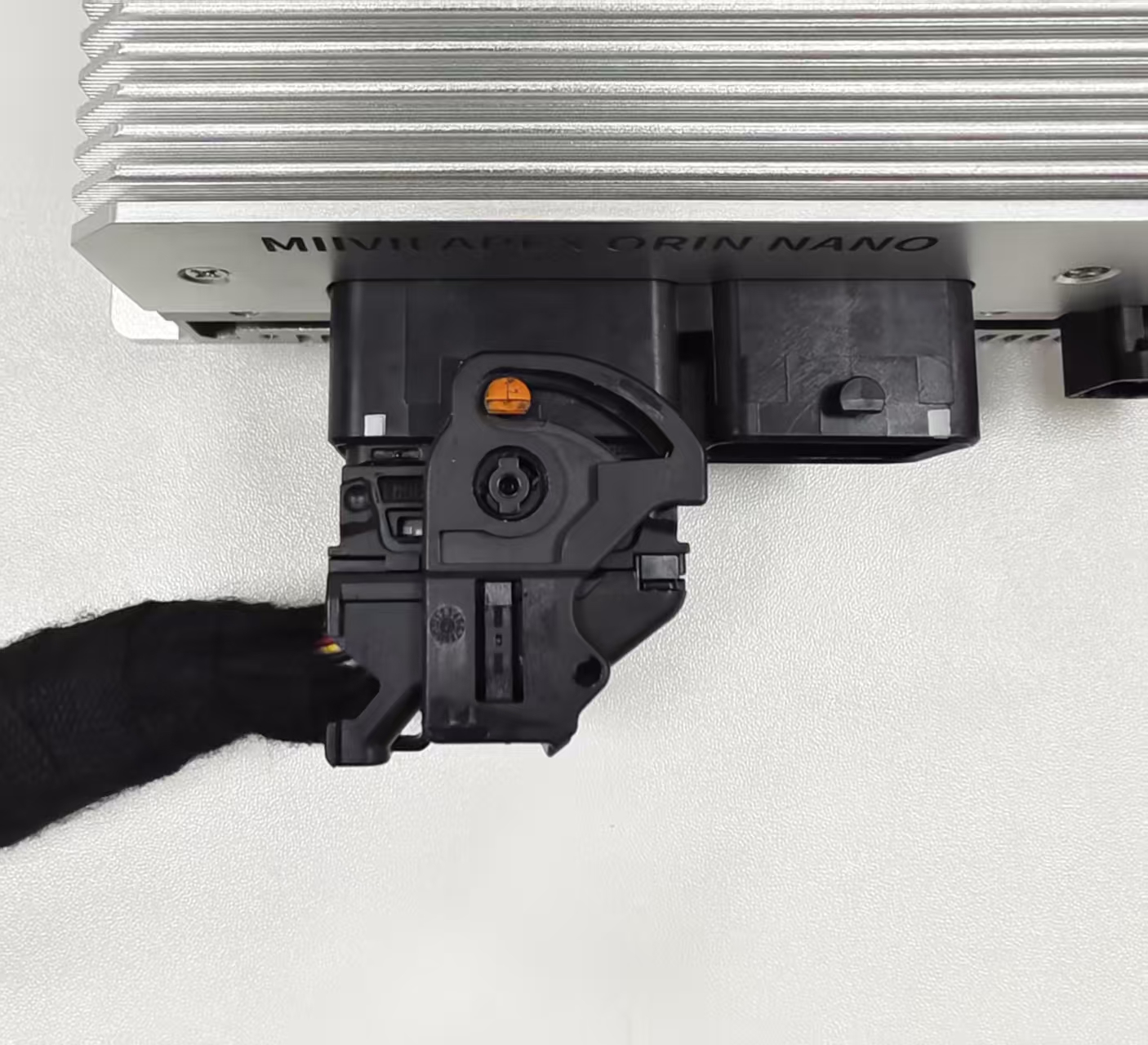

After the installation is completed, you can hear the clicking sound of the buckle.

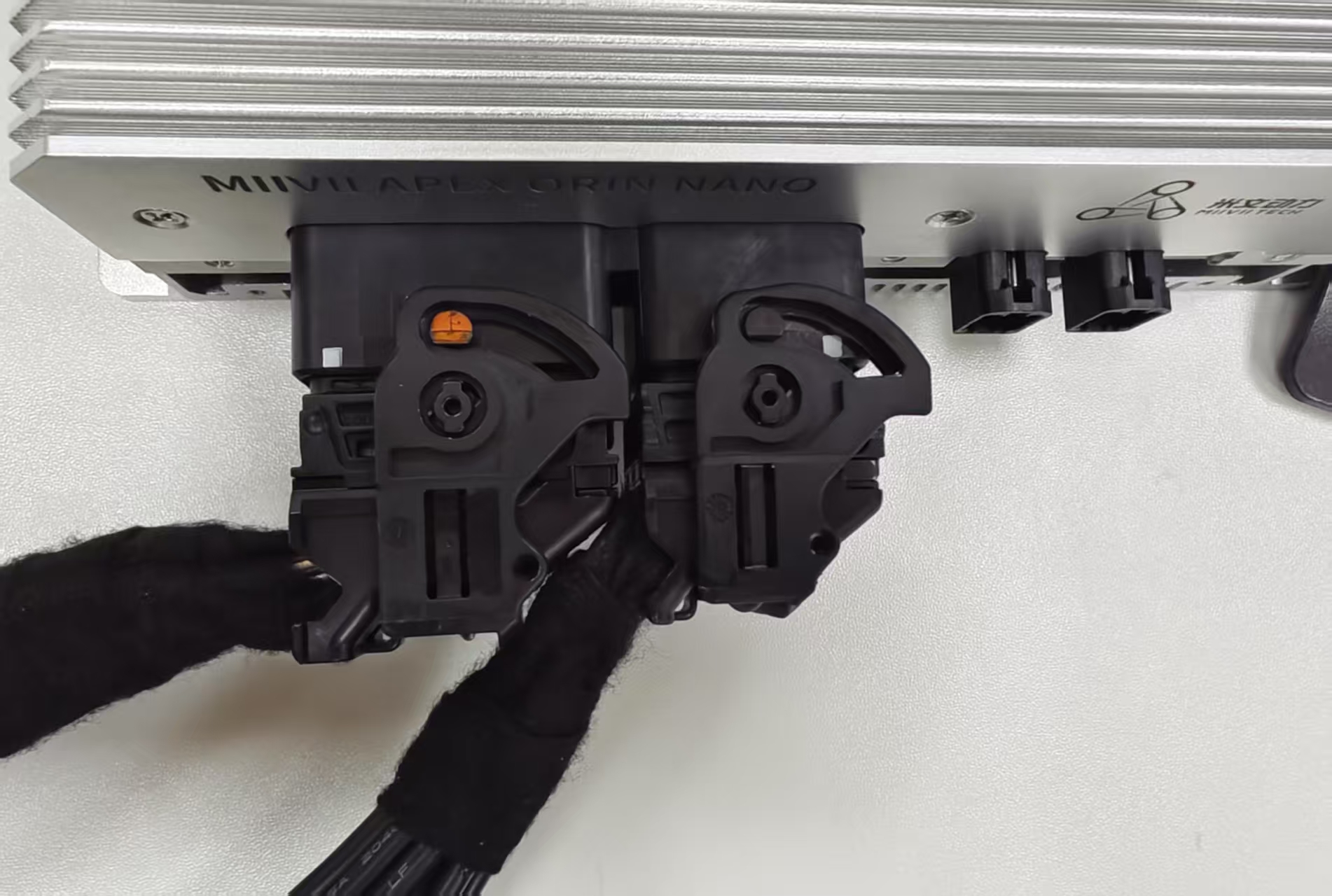

3）同样方式安装32PIN转接线
Disassembly instructions:#

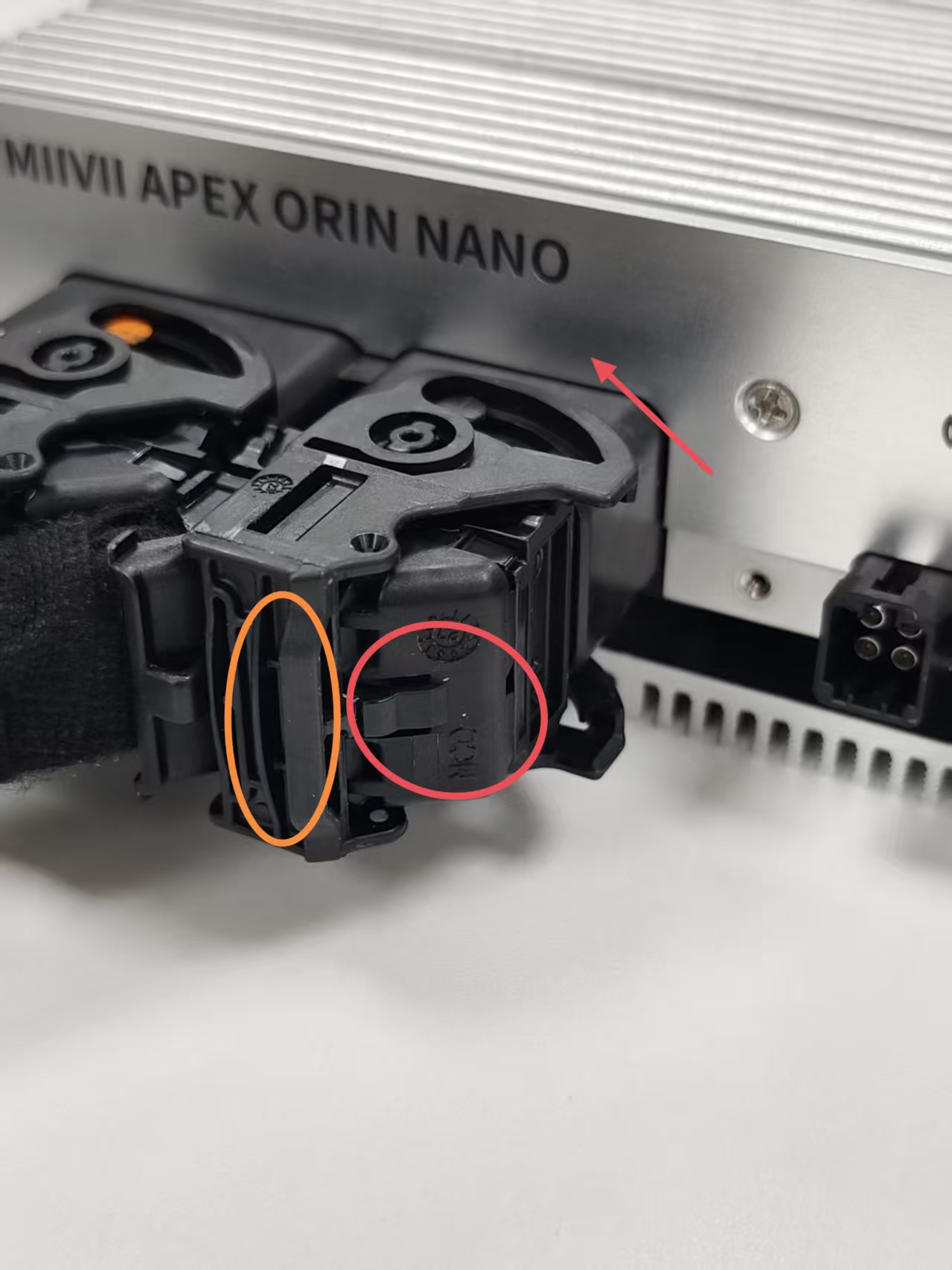

Forcefully press the protrusion at the red circle 1 shown in the figure, and at the same time, apply force at the orange circle to retract the slide buckle counterclockwise.
