BRD602 ORIN Power On#

Before the startup, the following items should be confirmed.

  • Confirm that the input power supply is DC 9 - 36V.

  • Use connection method 1 or connection method 2 to connect the power supply.

  • After checking that all connections are normal, power on the device.

Connection method 1: Use the power adapter and power transfer cable provided by Miwen to connect to the DC power interface.

Physical diagram of the power transfer cable

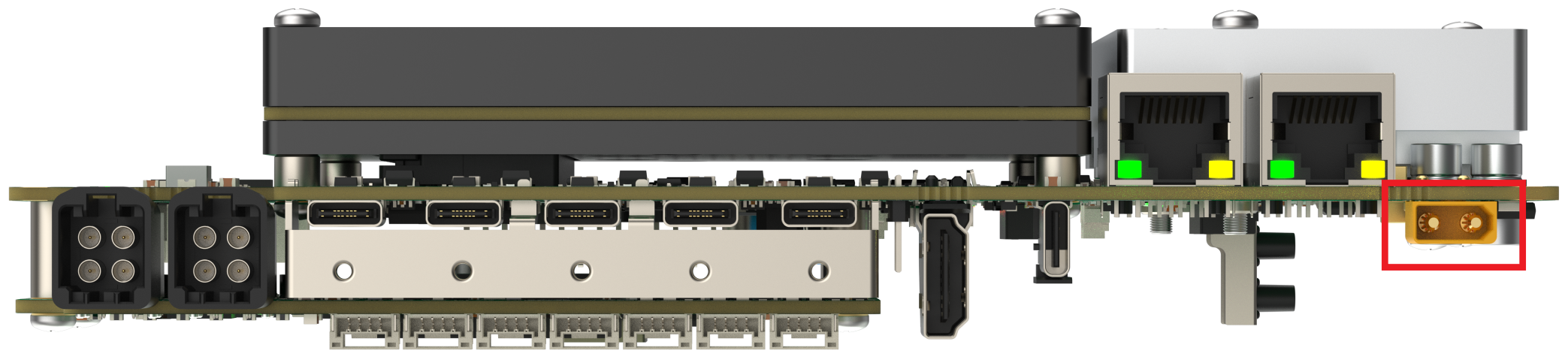

Connection method 2: Make a power supply with an XT30 male connector and directly connect it to the XT30 interface of the device.

Wiring sequence of the XT30 power interface of the device

#

Pin definition#

No

Pin

Description

1

+

Positive of DC power supply

2

-

Negative of DC power supply

Hardware specifications#

Input

Specification

DC

9～36V

Log In#

MiiVii device use Ubuntu. The default username is: nvidia, password is: nvidia

Shutdown#

Command line#

sudo poweroff

Reboot#

Command line#

sudo reboot

Suspend#

Command line#

sudo pm-suspend

Log Out#

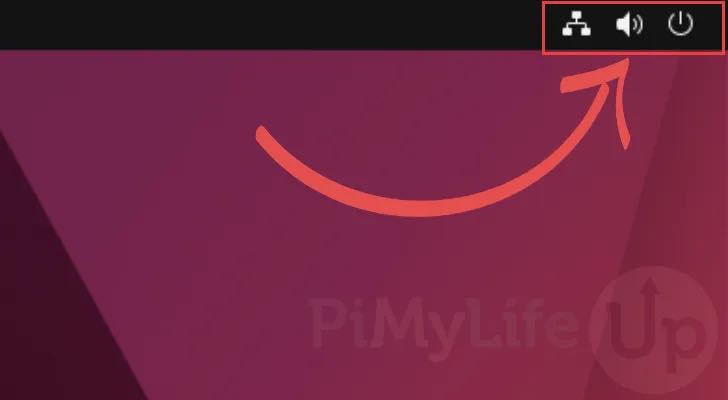

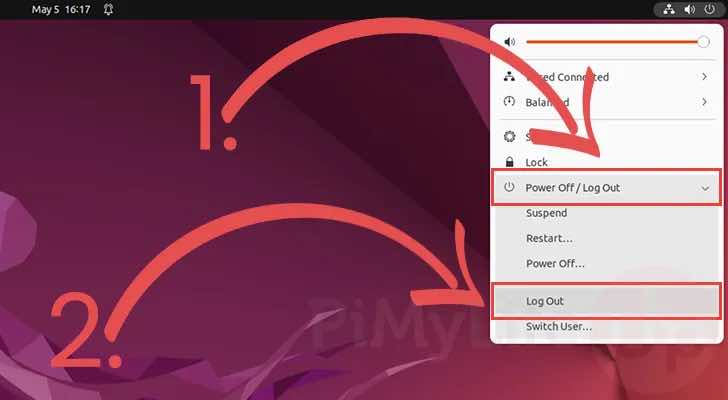

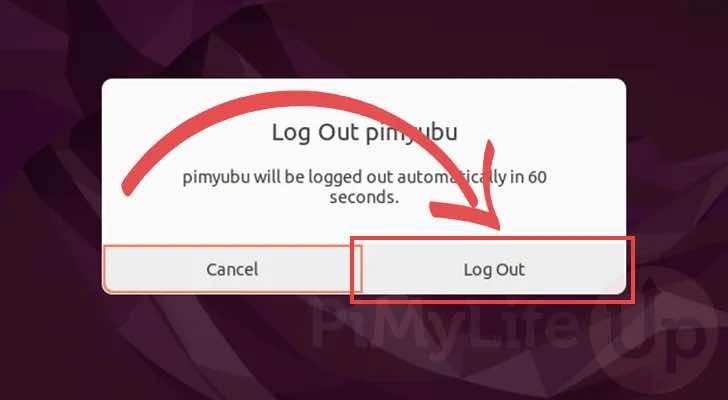

GUI#

Commandl ine#

logout

Troubleshooting of startup issues#

Phenomenon: The device cannot enter the system after being powered on.#

Check item 1: Check hardware connections#

Step 1: Confirm that the power adapter used meets the power supply requirements of the device#

Taking AD10 as an example, the power supply range is 9-36V, and it can start normally only if the power is at least 35W (no-load). For reference, please refer to the specification sheet:https://doc.miivii.com/Apex-AD10-User-Manual-CH/wiki/Apex-AD10-%E4%BA%A7%E5%93%81%E8%A7%84%E6%A0%BC%E4%B9%A6.html。

Other devices can directly refer to the product specification.

  • If it is confirmed that the adapter meets the requirements, proceed to “Step 2”.

  • If the adapter does not meet the requirements, it is necessary to replace it with an adapter that meets the power supply requirements.

Step 2: Cross-verify the adapter status#

Use the power adapter from “Step 1” to connect other devices that can normally power on and enter the system.

  • If other devices also fail to power on and enter the system normally, it indicates an “adapter failure”, and it is recommended to replace the adapter.

  • If other devices can power on and enter the system normally, it is necessary to perform “Troubleshooting Item 2: Observe the startup log”.

Check item 2: Observe the startup log#

Step 1: Connect to the serial port for debugging#

Operation method:https://doc.miivii.com/Apex-AD10-User-Manual-CH/wiki/Apex-AD10-DEBUG-UART.html。

  • If there is no output at all, it may be a hardware issue.

  • If there is partial startup log but it gets stuck, record the specific error information and send the log to Miwen Technical Support.

    • If you have the conditions to reflash the image, it is recommended to reflash the image to check if it is caused by the software system environment.

Operation method:https://doc.miivii.com/Apex-AD10-User-Manual-CH/wiki/Apex-AD10-%E5%9B%BA%E4%BB%B6%E7%83%A7%E5%86%99.html。

  • If you can log in, use df -h to check the hard disk usage, clear redundant files to reduce system usage, then restart and try again.
