BRD602 ORIN Fan Function Usage#
#

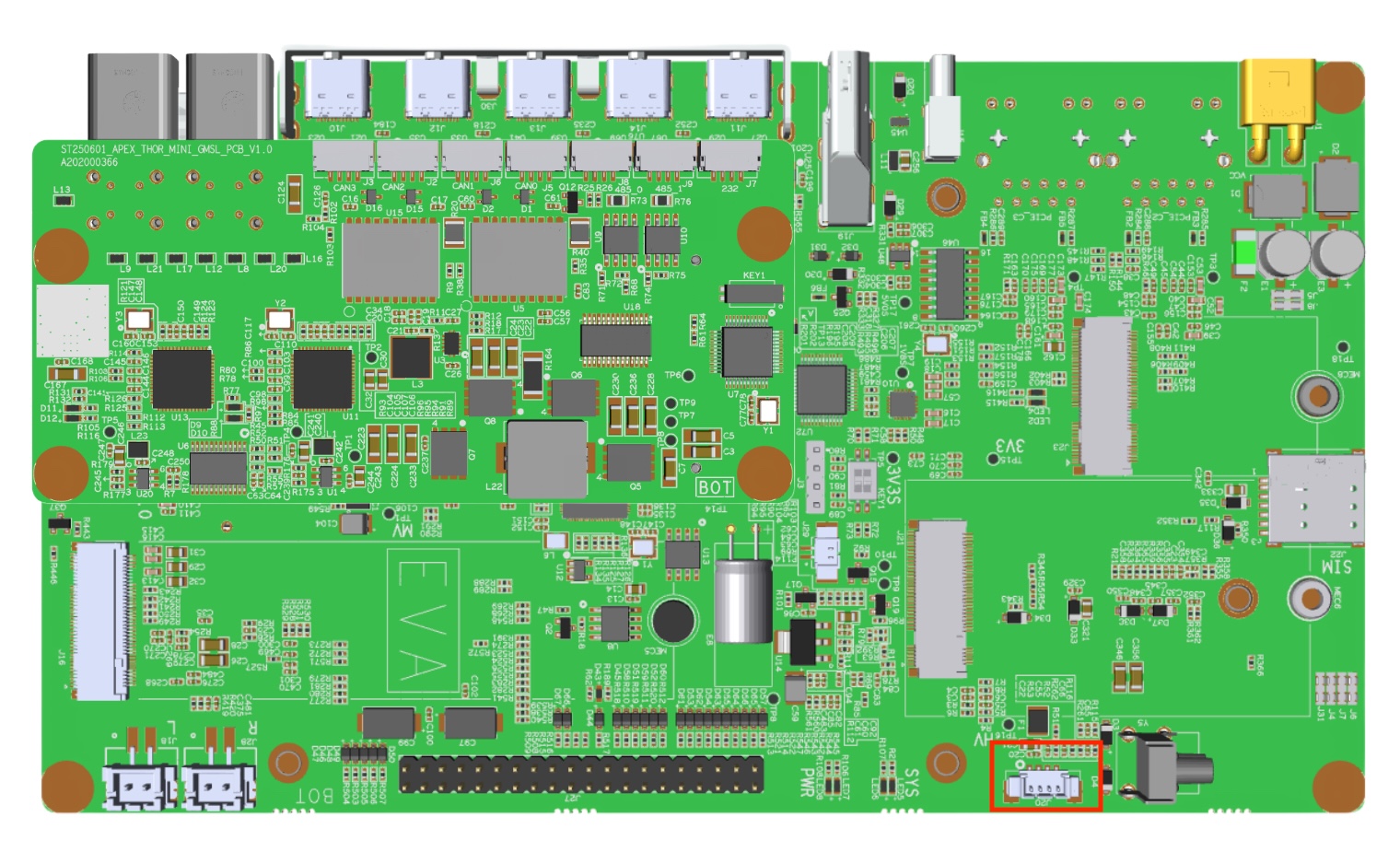

Hardware specifications#

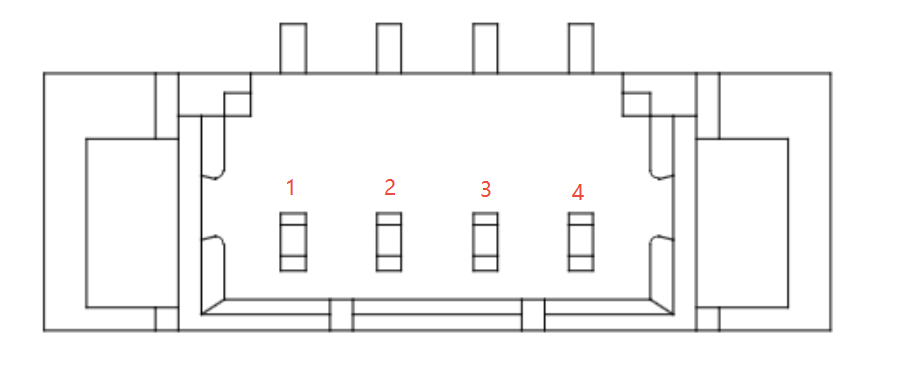

Pin definition#
PIN |
Signal definition |
|---|---|
1 |
GND |
2 |
DC_12VFAN |
3 |
FAN_TACH |
4 |
FAN_PWM |
Usage method#
How to obtain the fan speed#

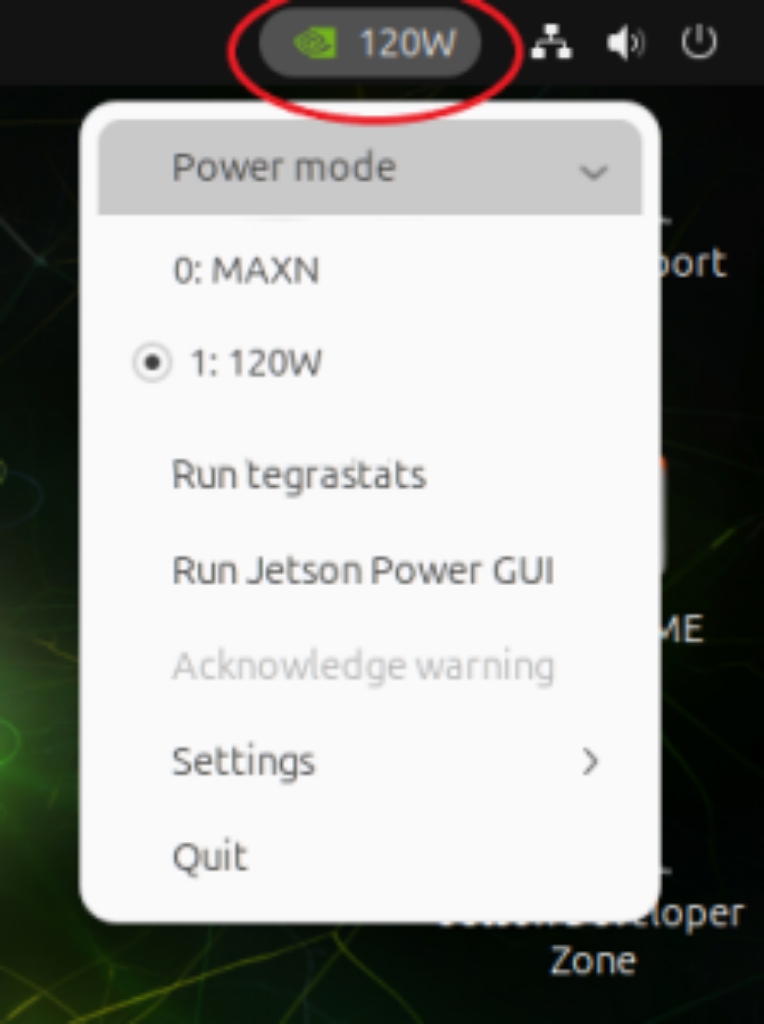

Select the green icon in the upper right corner.

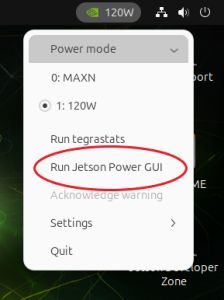

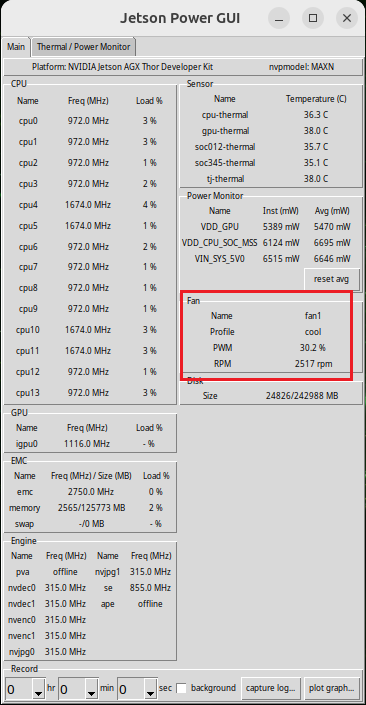

Select Jetson Power GUI, and from the pop-up program interface, you can see the current fan speed information.
The relationship between the fan speed and temperature#
Core temperature |
Fan speed |
|---|---|
45℃ |
2600rpm |
70℃ |
5750rpm |
94℃ |
6100rpm |
