BRD602 ORIN CAN terminal resistor DIP switch#

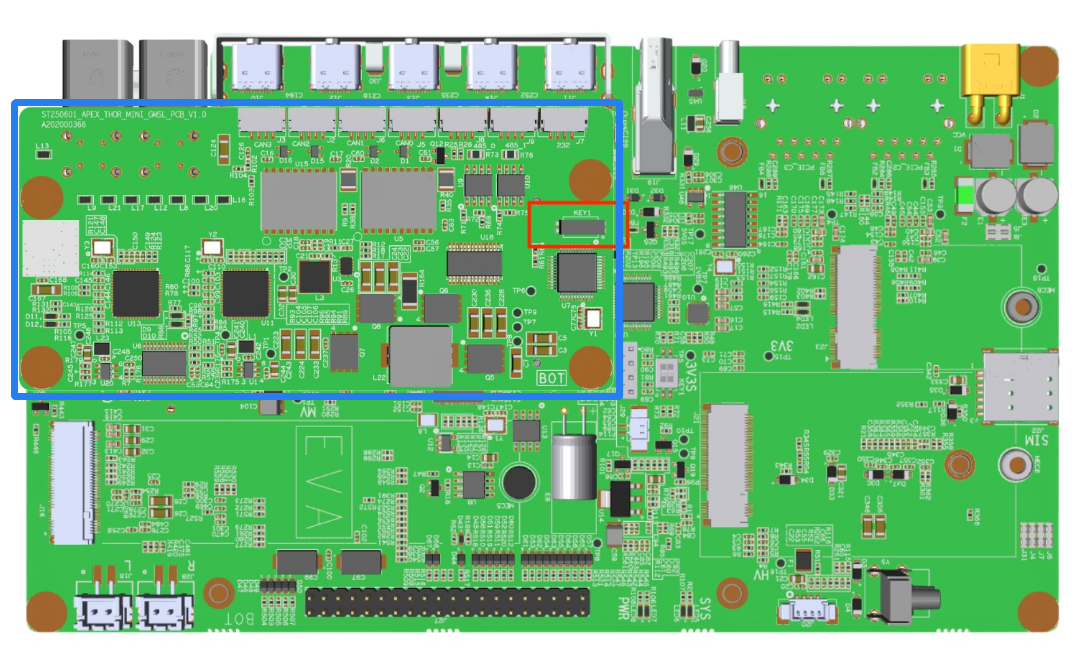

The blue outlined area indicates the sub-board of BRD601, while the red outlined area shows the CAN terminal resistor dip switches on the sub-board.#
Dip Switch Instructions:
1：CAN_0
2：CAN_1
Use CAN_0: Dip switch status: 10
Use CAN_1: Dip switch status: 01
Use both CAN_0 and CAN_1: Dip switch status: 11
Not using CAN: Dip switch status: 00

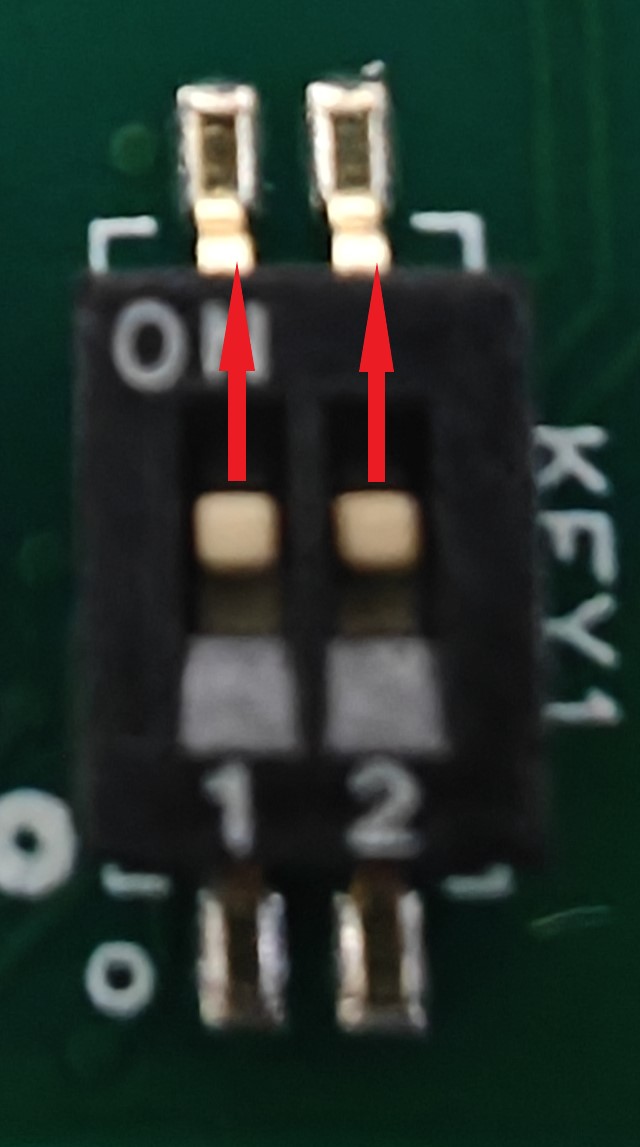

Current status: 11, both CAN_0 and CAN_1 are using 120 ohm terminal resistors (default).#

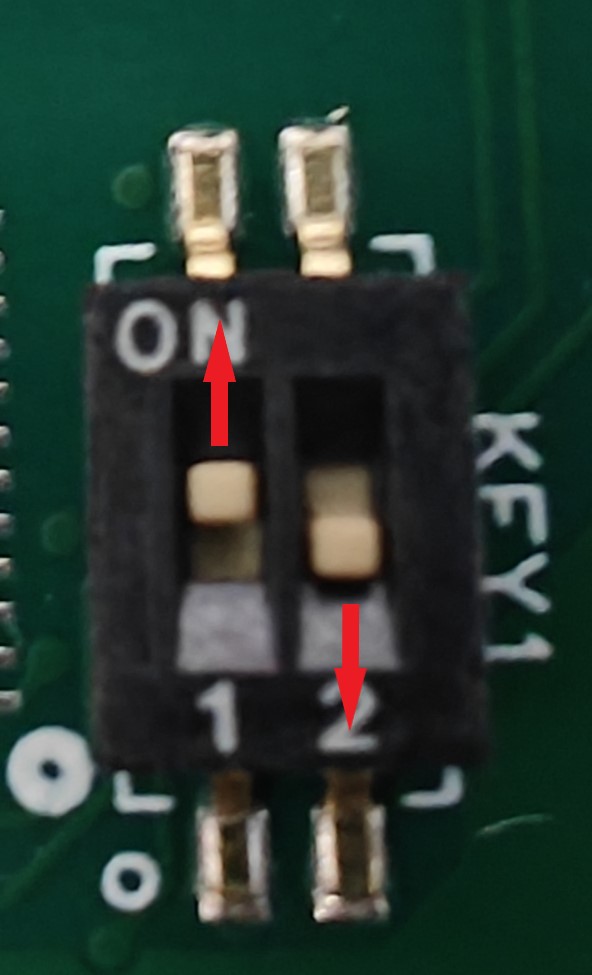

Current status: 10, CAN_0 is using a 120 ohm terminal resistor, and CAN_1 has no terminal resistor.#

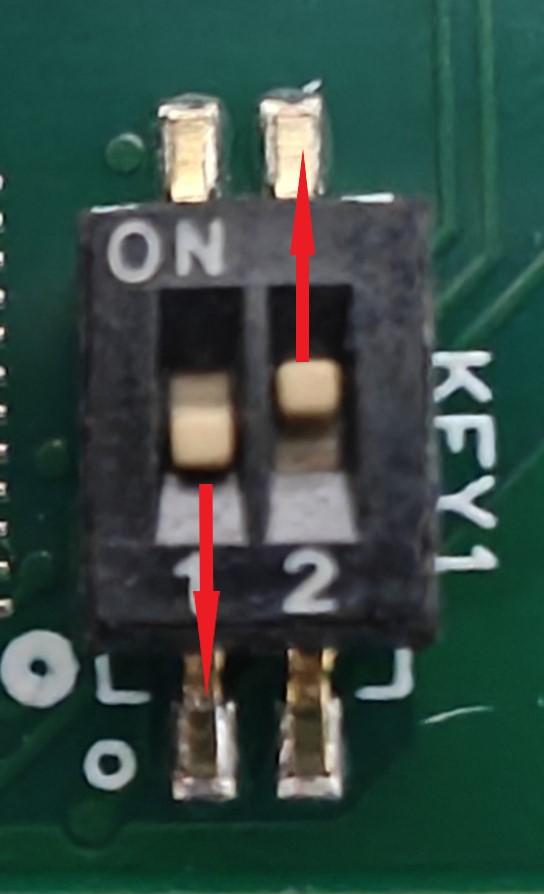

Current status: 01, CAN_0 has no terminal resistor, and CAN_1 is using a 120 ohm terminal resistor.#

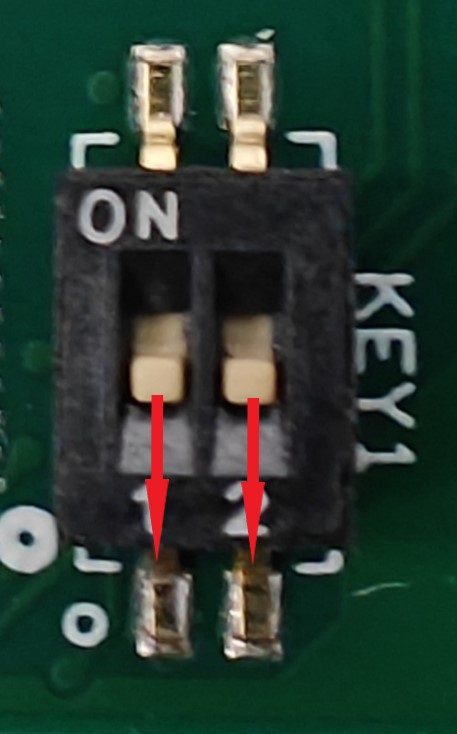

Current status: 00, both CAN_0 and CAN_1 do not have terminal resistors.#
