BRD602 ORIN Connector Description#
The purpose of the following information is for the convenience of customers to make cable.
Port |
Device Side Image |
Type |
Maker |
Device Side Model |
Cable Side Image |
Cable Side Model |
Comment |
|---|---|---|---|---|---|---|---|

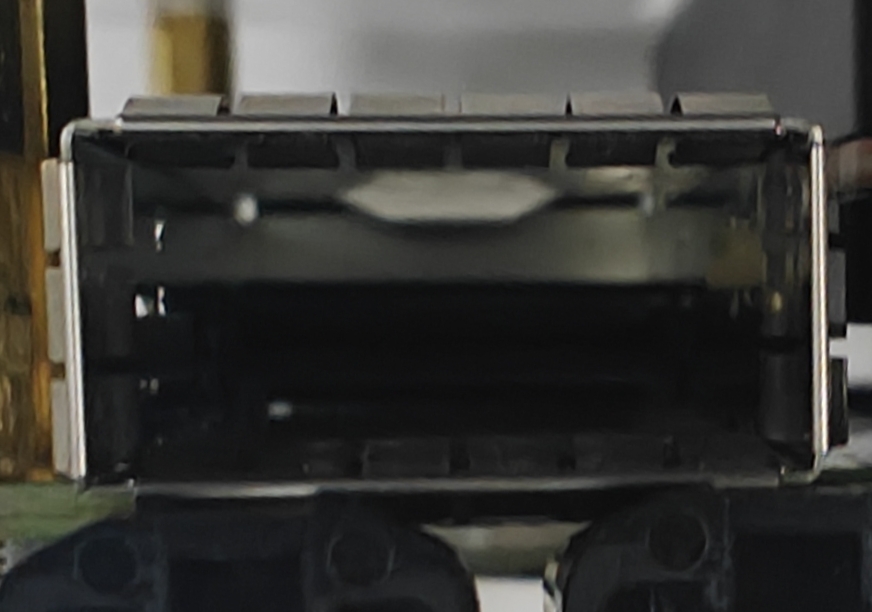

QSFP28 |
|
Standard |
TE |
1551920-2 |
|

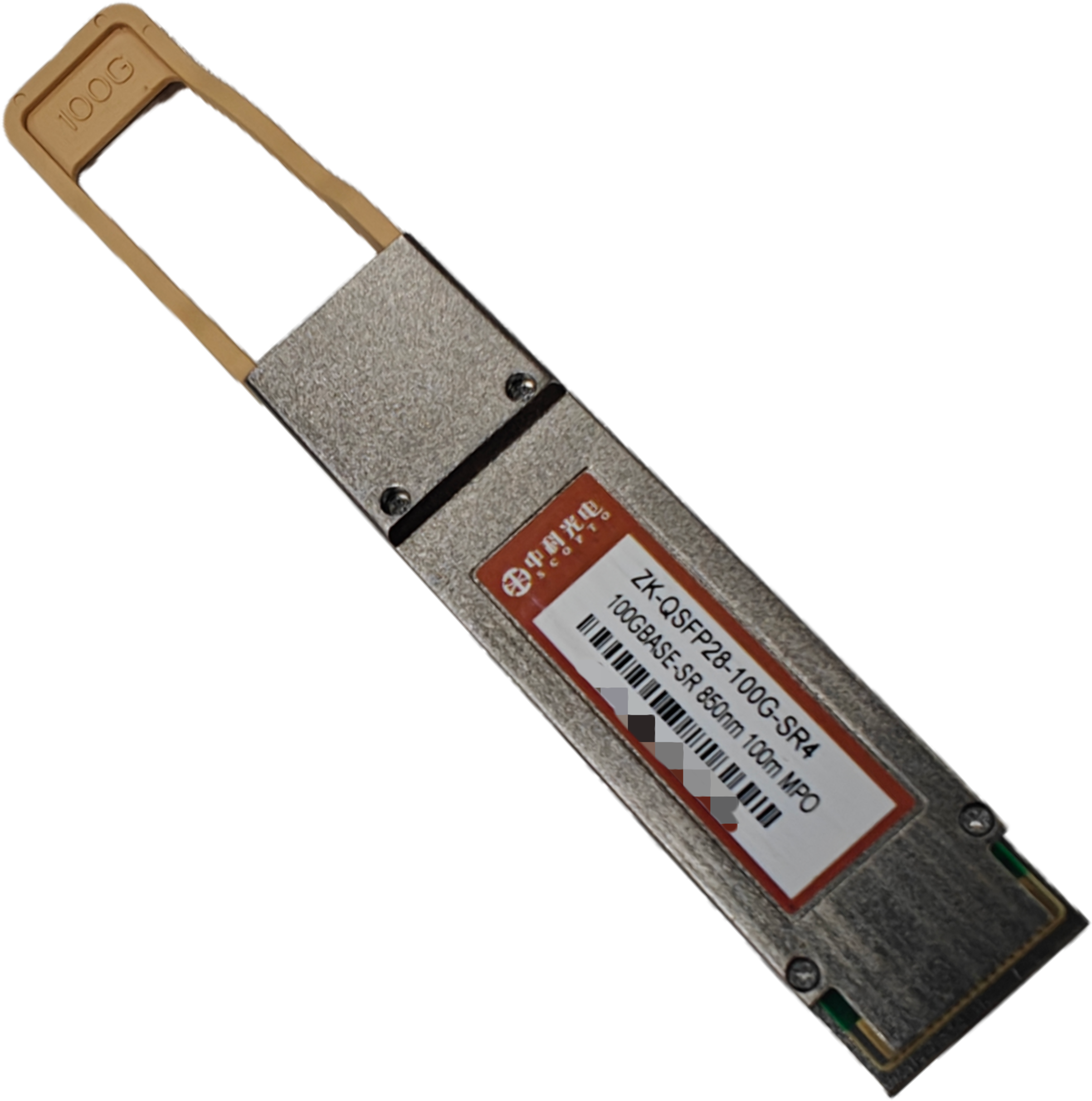

ZK-QSFP28-100G-SR4 |
|

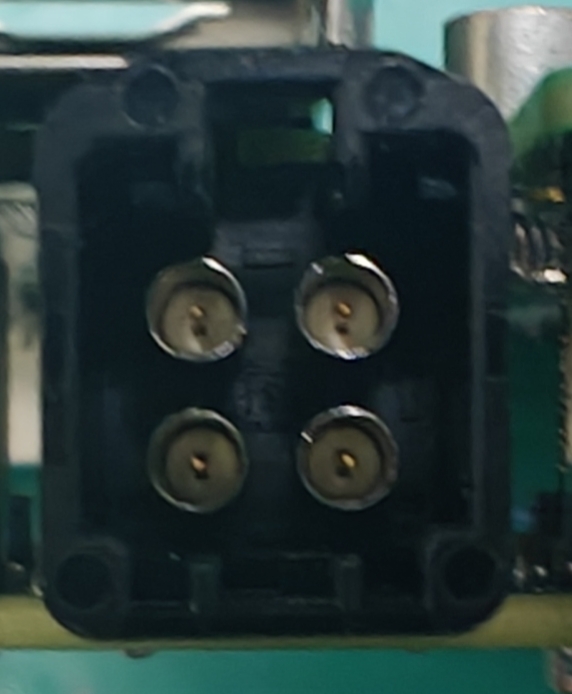

GMSL |
|
Dedicated |
SYNCONN |
1206011405 |
|
2235630130 |
|

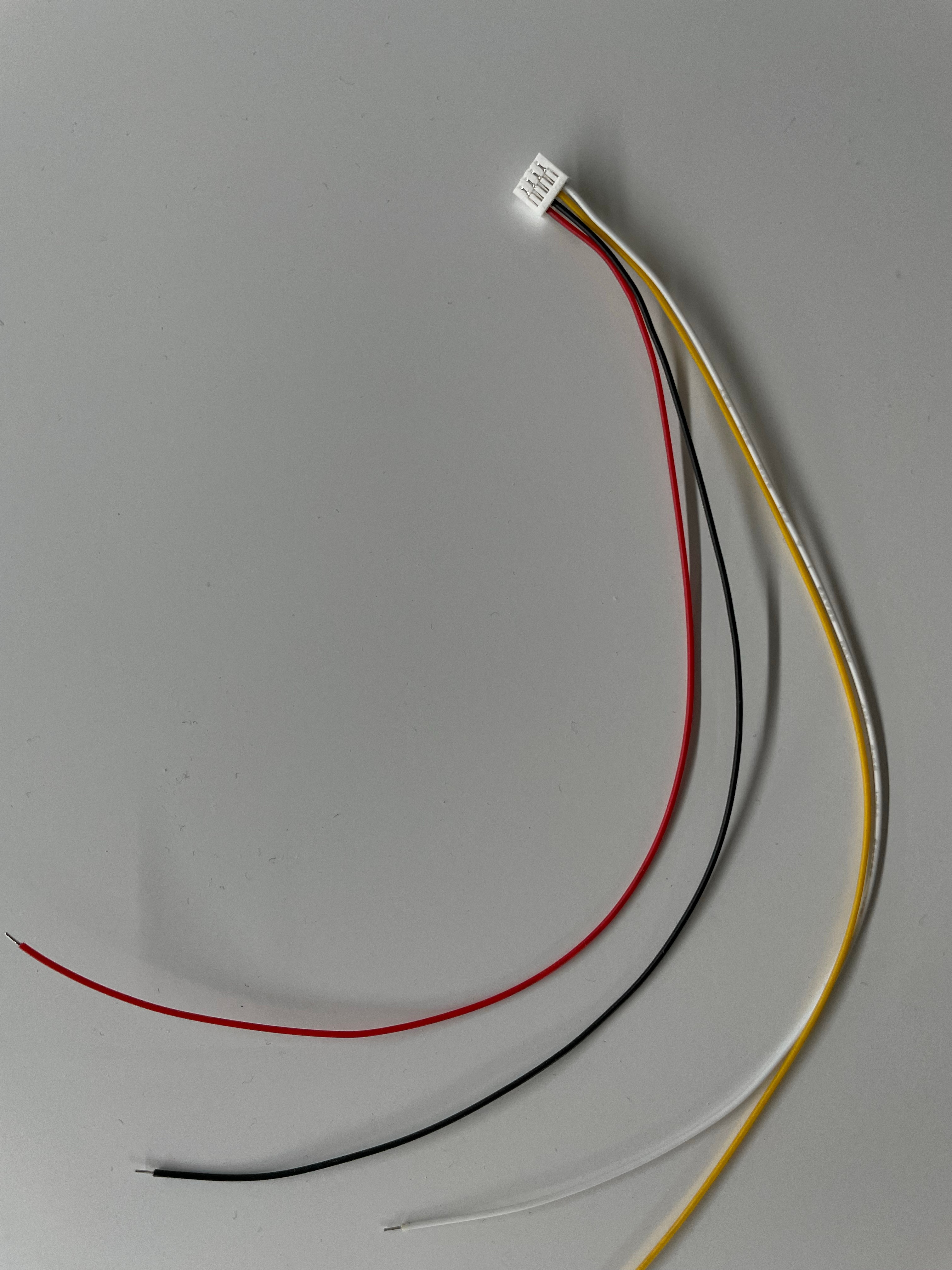

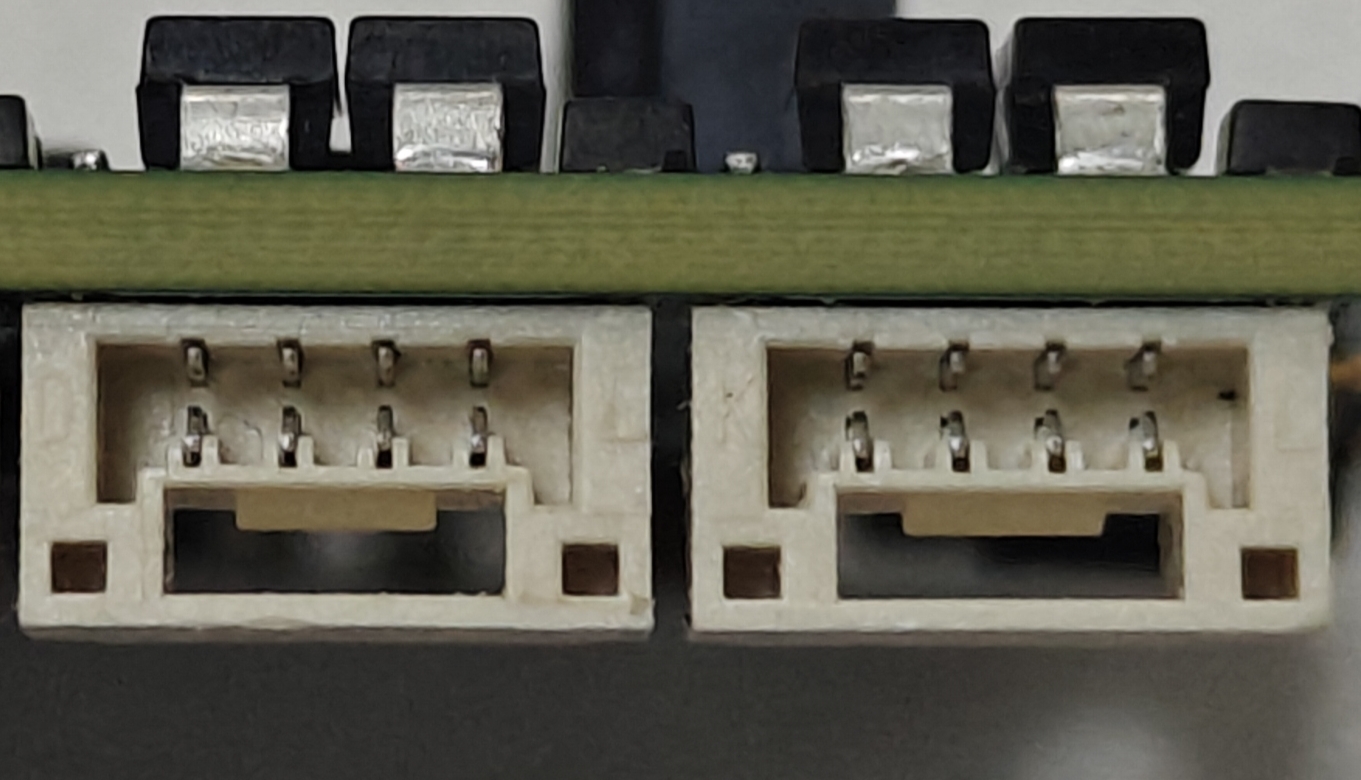

CAN/RS485/RS232 |
|
Standard |
CJT |
A1257WR-S-4P |
|
A1257H-4P |
|

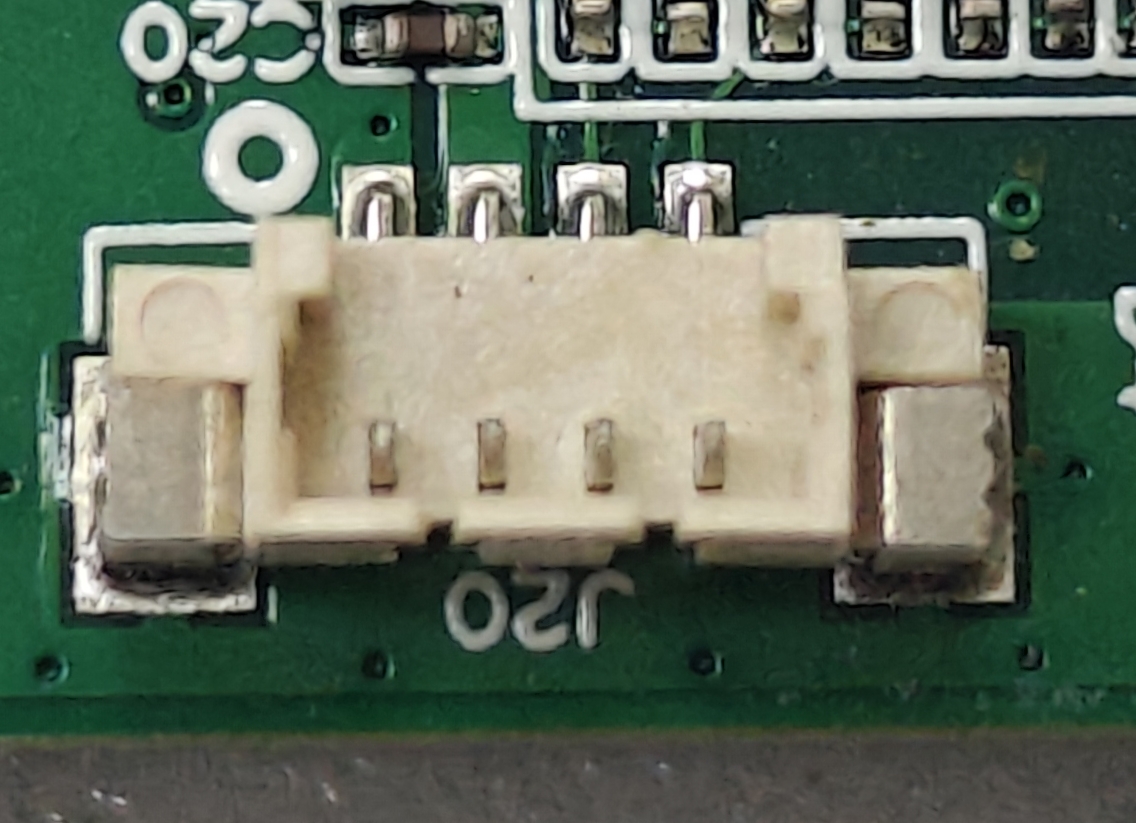

FAN |
|
Standard |
CJT |
A1251WV-S-4P |
A1251H-4P |
||

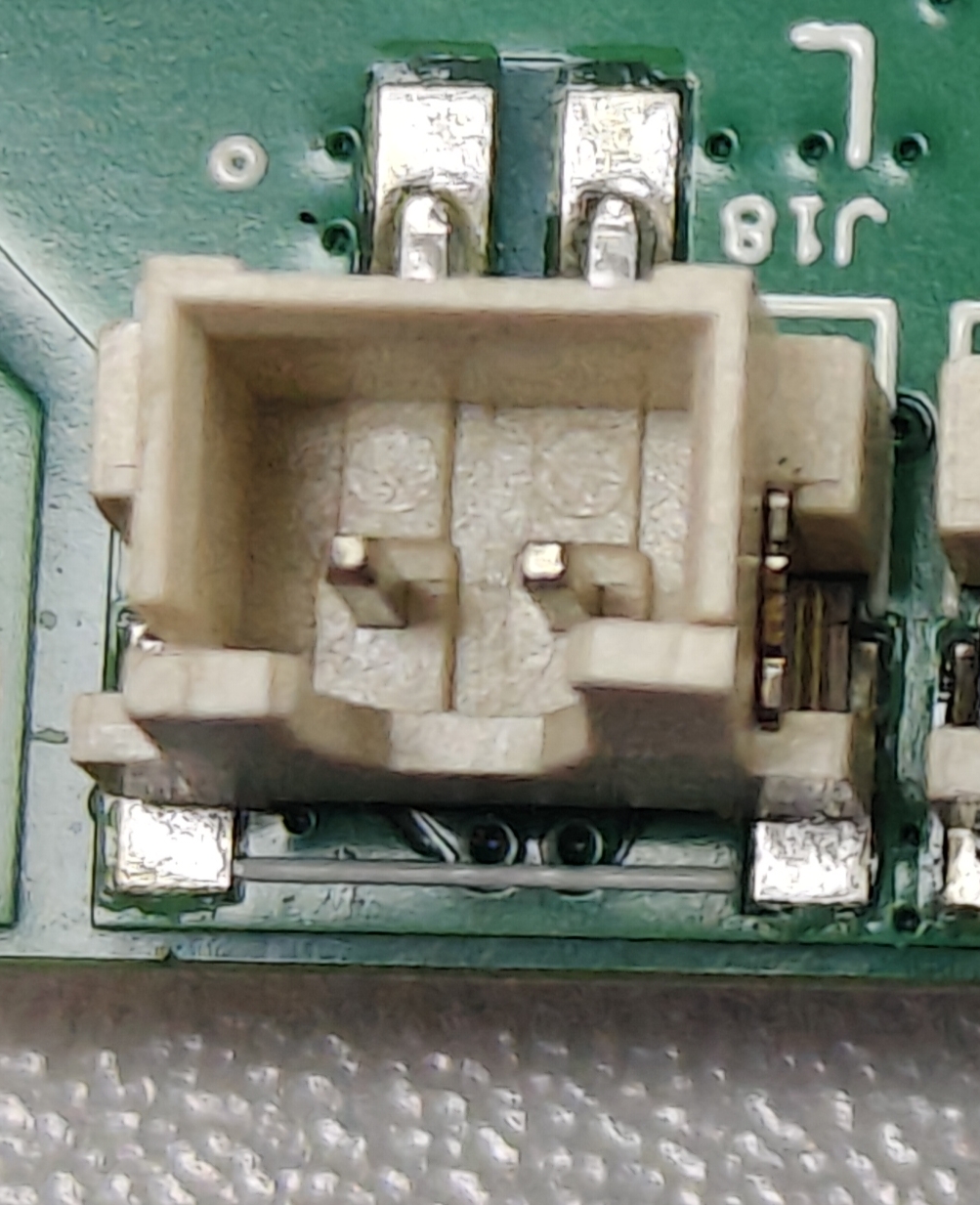

AUDIO |
|
Standard |
MEGASTAR |
ZX-XH2.54-2PLT |
|||

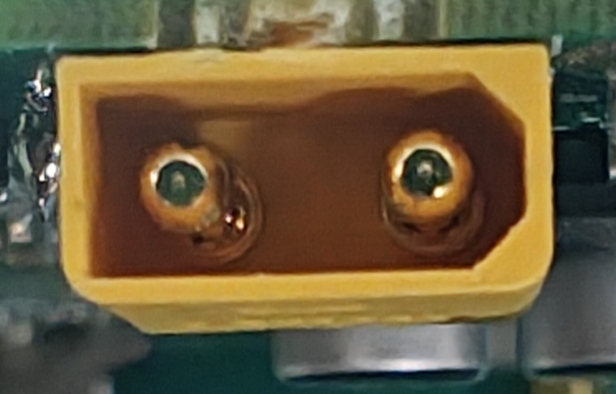

XT30 |
|
Standard |
AMASS |
XT30APW-M |
|

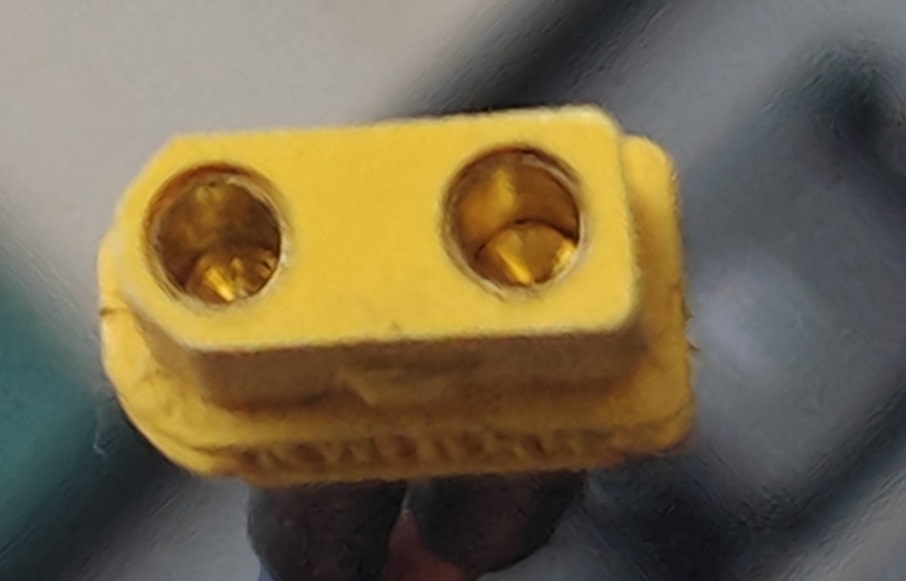

XT30UW-F |
#
Pin definition#
No |
Pin |
Description |
|---|---|---|
1 |
+ |
Positive of DC power supply |
2 |
- |
Negative of DC power supply |
Hardware specifications#
Input |
Specification |
|---|---|
DC |
9～36V |
