APEX THOR Interface Description#

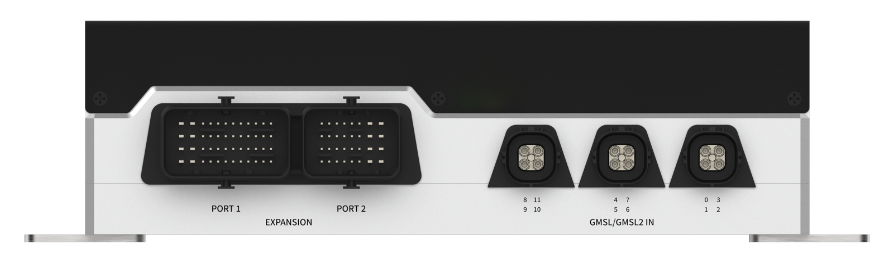

Positive Interface Description#
PORT |
Meaning |
|---|---|
EXPANTION PORT1 |
48 Pin IO port, which can lead out multiple functions through an adapter cable |
EXPANTION PORT2 |
32 Pin IO port, which can lead out multiple functions through an adapter cable |
GMSL/GMSL2 IN |
12-channel GMSL2 interface for connecting GMSL cameras |

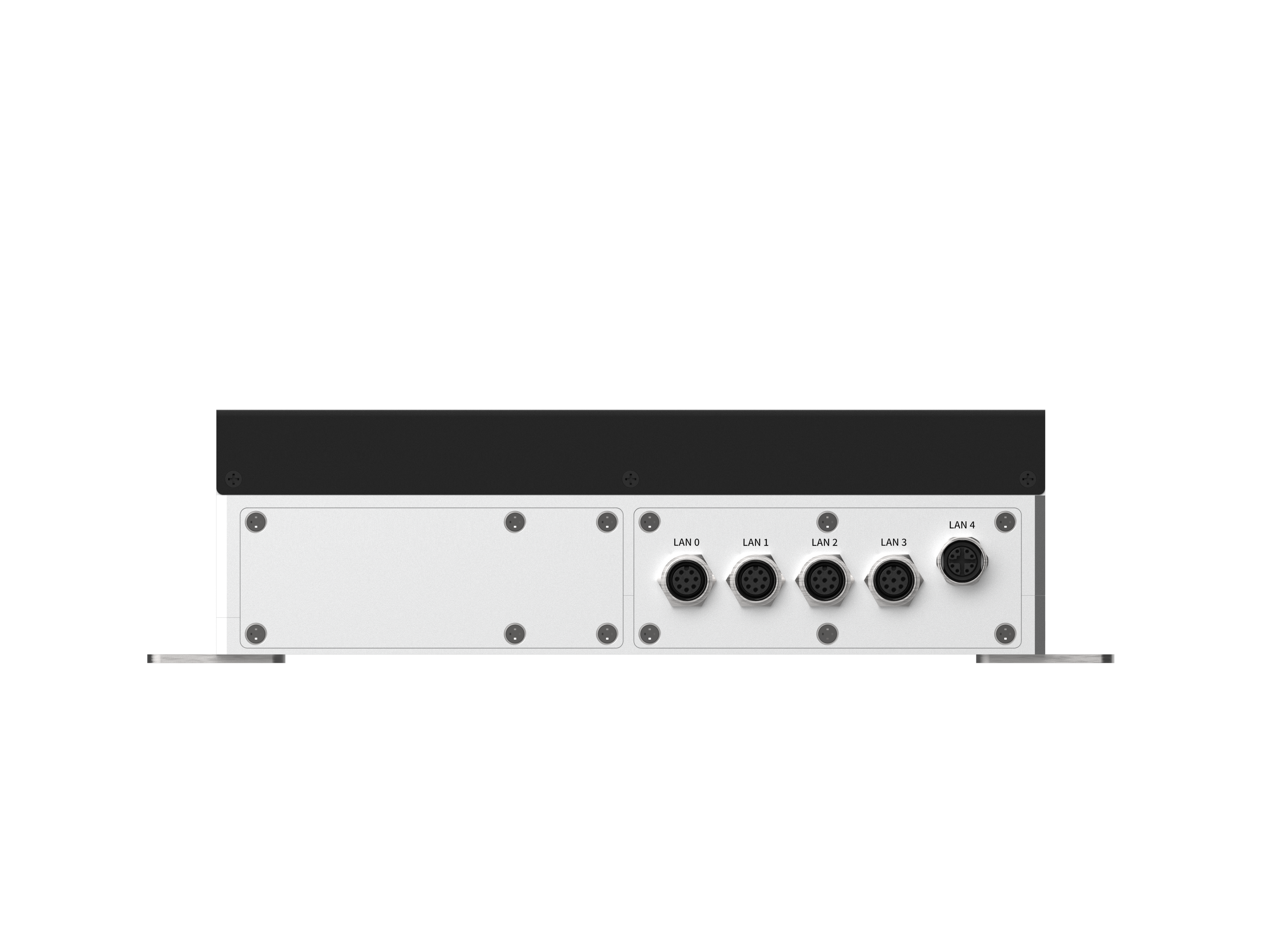

Explanation of the rear interfaces#
PORT |
Meaning |
|---|---|
LAN0 ~ LAN3 |
M12 A Code Gigabit Ethernet port |
LAN4 |
M12 X Code 10 Gigabit Ethernet Port |

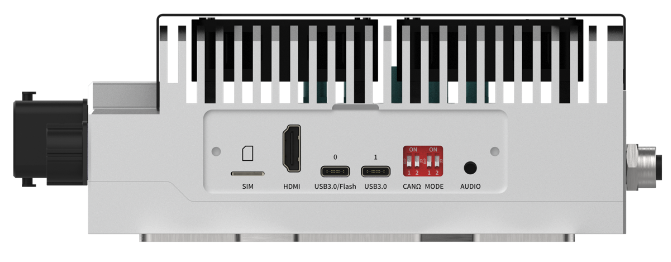

右侧#
PORT |
Meaning |
|---|---|
SIM |
SIM card interface |
HDMI |
HDMI Type A interface |
USB3.0/Flash |
USB 3.0 interface with programming function |
USB3.0 |
USB3.0 |
CAN |
Selection of CAN Terminal Resistors |
MODE |
Startup Mode Interface |
AUDIO |
3.5mm audio |

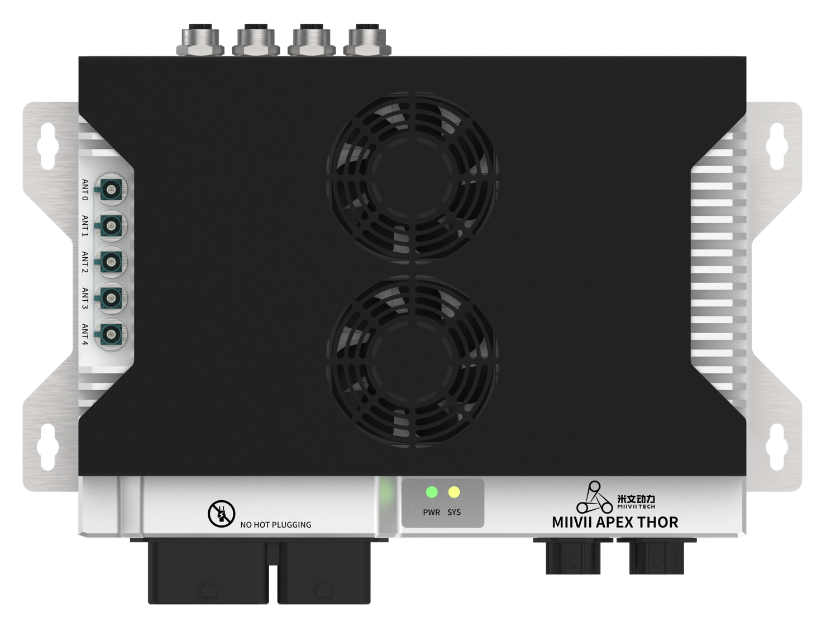

顶部接口说明#
PORT |
Meaning |
|---|---|
ANT0 ~ ANT4 |
antenna interface |
