APEX THOR Fan Function Usage#
Function Introduction#
The fan function in MIIVII APEX THOR is an important component. It dissipates the heat generated inside the device through continuous air flow, preventing overheating, thereby improving the stability and service life of the device.
The following is a detailed introduction to the fan structure, important parameters and functions.
Hardware specifications#
indicator |
Specification |
|---|---|
Noise level (dB) |
41.5dB |
Rotational speed (RPM) |
6100rpm±10% |
Usage method#
How to obtain the fan speed#

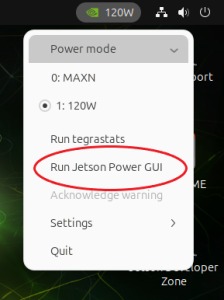

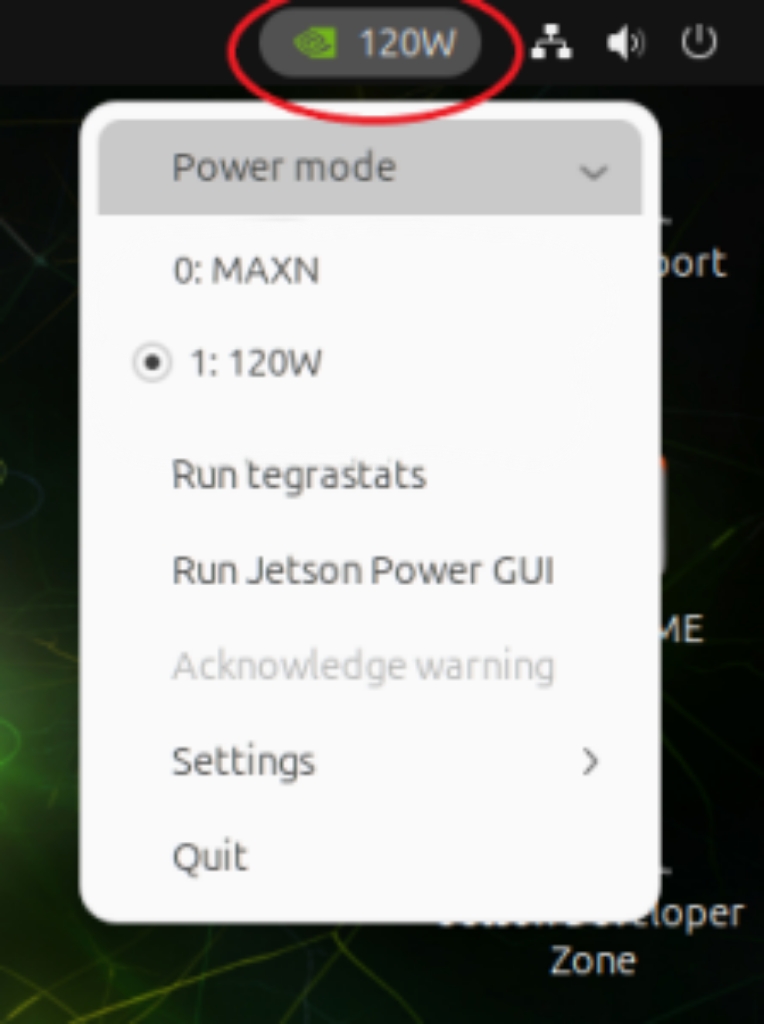

Select the green icon in the upper right corner.

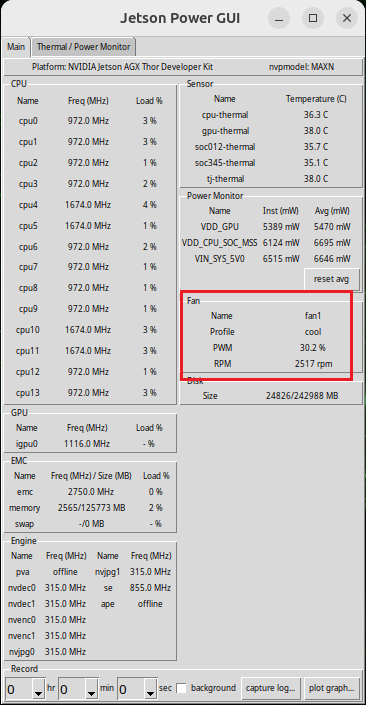

Select Jetson Power GUI, and from the pop-up program interface, you can see the current fan speed information.
The relationship between the fan speed and temperature#
Core temperature |
Fan speed |
|---|---|
45℃ |
2600rpm |
70℃ |
5750rpm |
94℃ |
6100rpm |
