APEX THOR Connector Description#
The purpose of the following information is for the convenience of customers to make cable.
Port |
Device Side Image |
Type |
Maker |
Device Side Model |
Cable Side Image |
Cable Side Model |
Comment |
|---|---|---|---|---|---|---|---|
I/O1 48 Pin |
|
Dedicated |
Molex |
502225-0801 |
|
64320-1319 |
|
I/O2 32 Pin |
|
Dedicated |
Molex |
502225-0801 |
|
64319-3211 |
|
Antenna |
|
Fakra Type Z |
N/A |
FAKRA Z-Code, Plug |
FAKRA Z-Code, Jack |
||

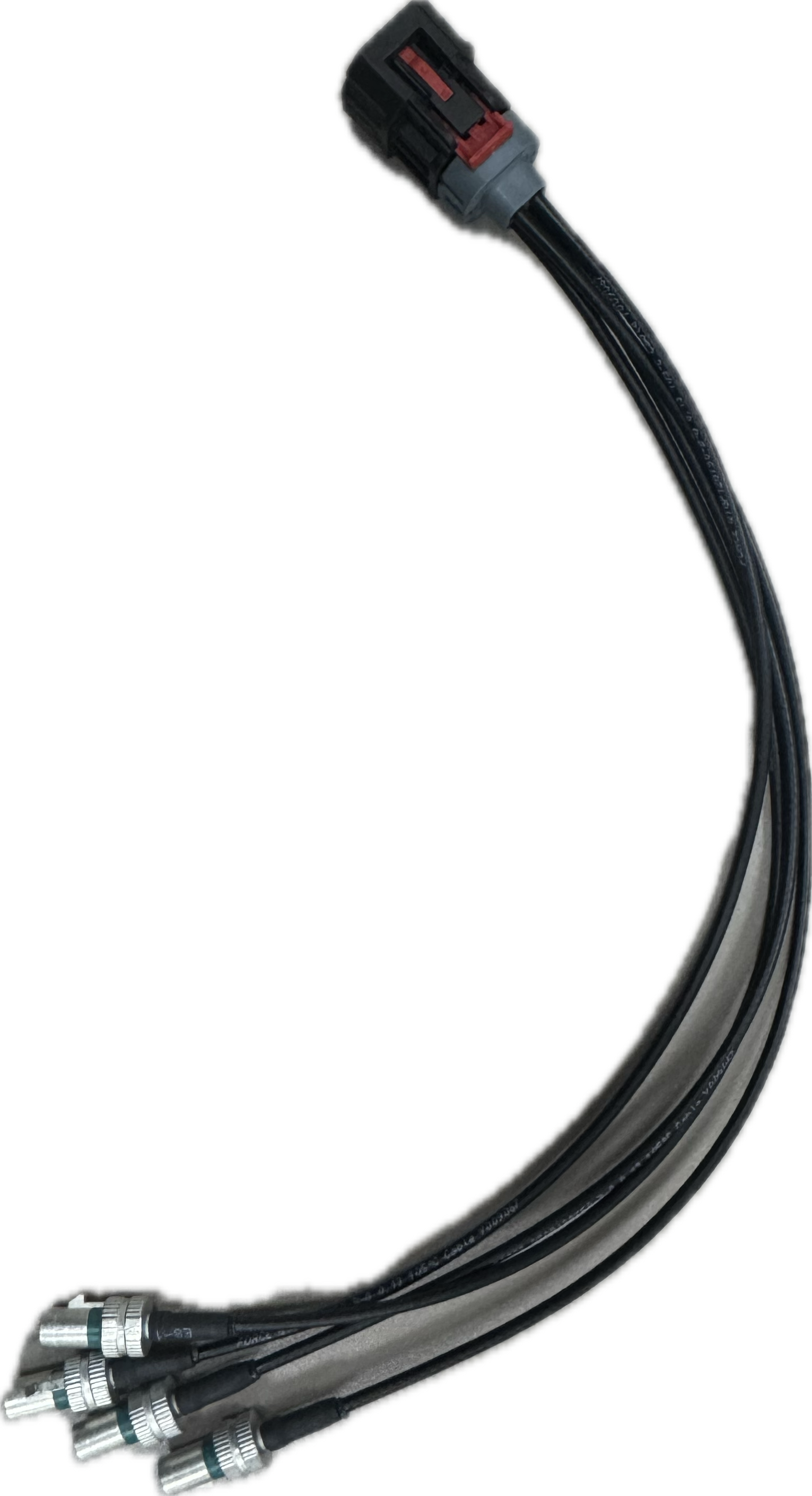

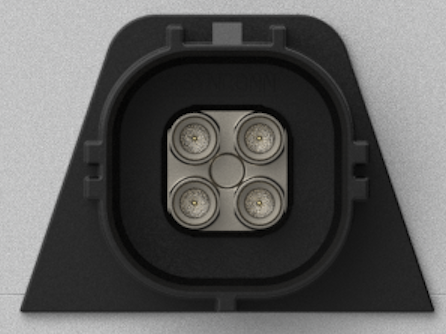

GMSL |
|
MNF042 A CODE/F |
SYNCONN |
212042-01461010 |
|
202121-16361010 |
|
1G Ethernet |
|
Standard |
N/A |
Female, M12 A -Code |
Male, M12 A-Code |
||
10G Ethernet |
|
Standard |
N/A |
Female, M12 X-Code |
Male, M12 X-Code |
Appendix#

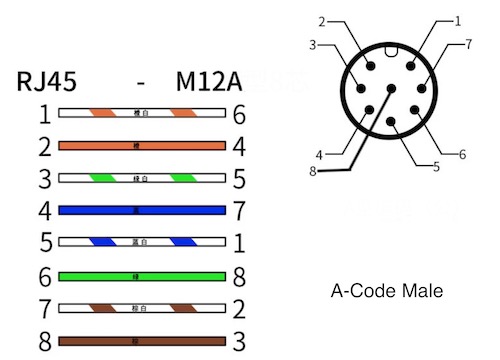

1G Ethernet M12 A-Code#
MiiVii Device(Female)
Cable(Male)

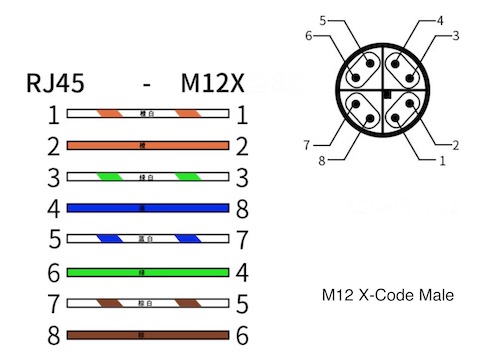

10G Ethernet M12 X-Code#
MiiVii Device (Female)
Cable (Male)

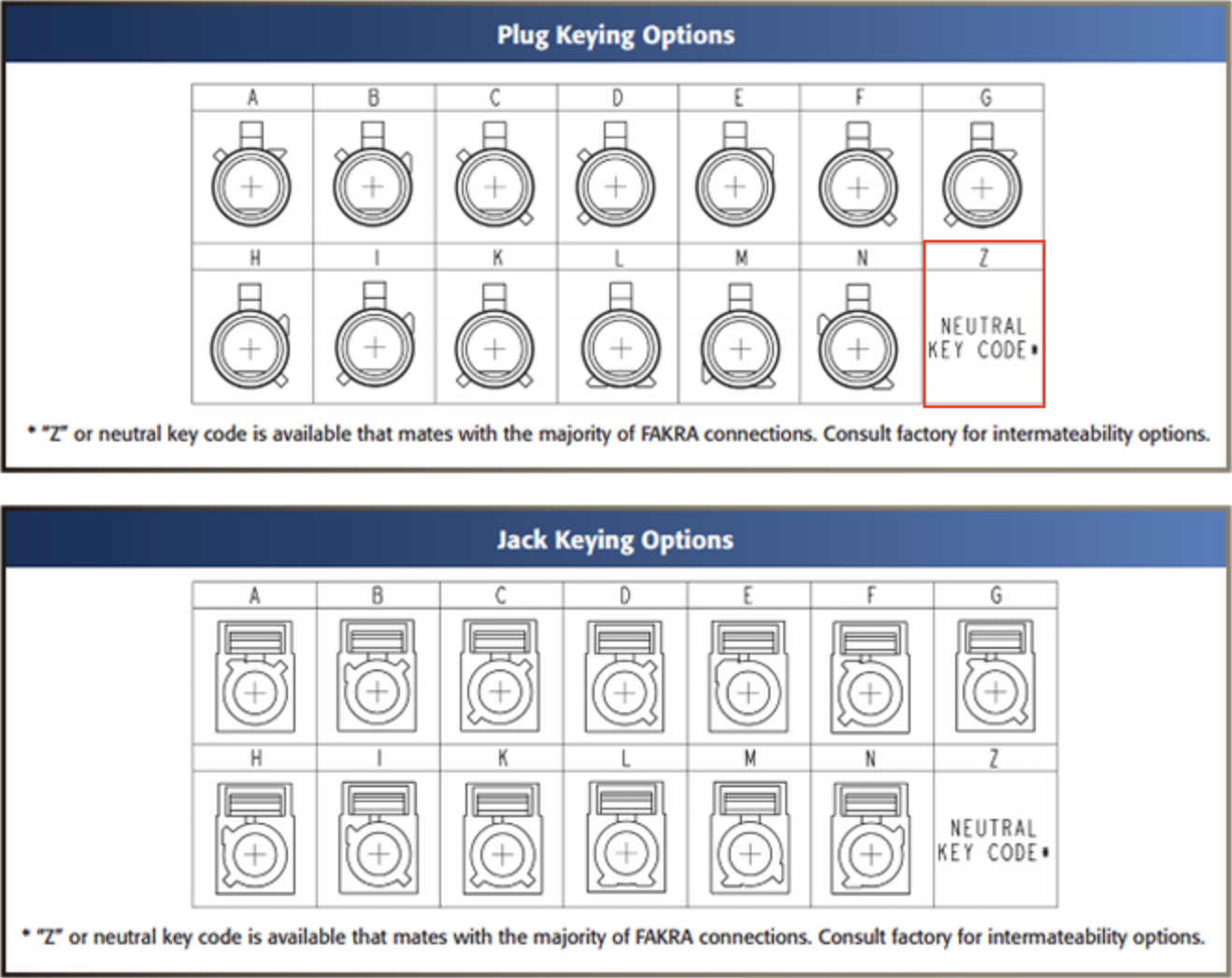

Fakra Z-Code#
