Apex Orin NX WIFI Usage#
Wireless Setting#
WiFi Setting#
Click the network icon in upper-right corner of the desktop. Find the name of your WiFi network and click on it. Enter your password and click ‘Connect’.
WiFi Connection

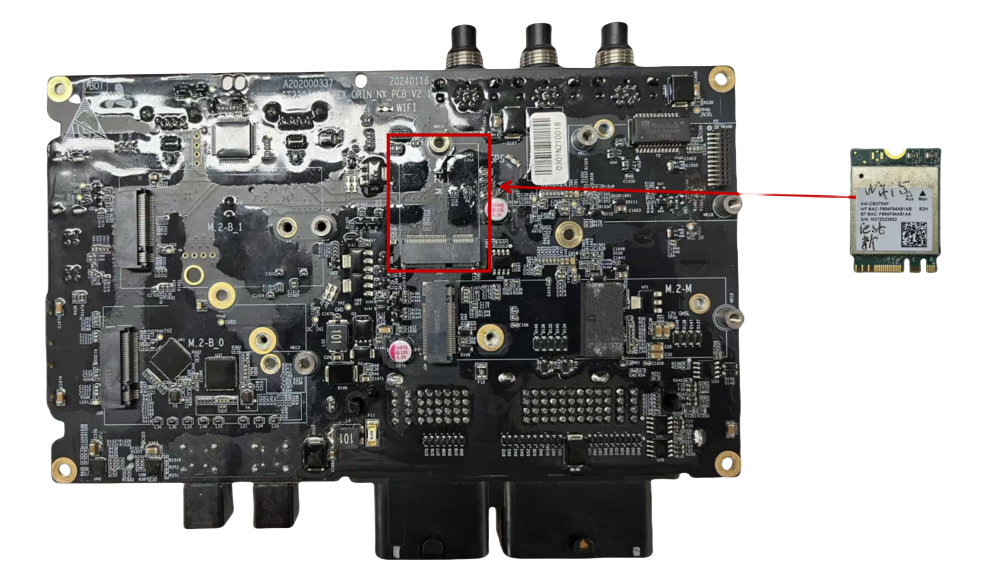

M.2 E WIFI Support List#
NO. |
Brand |
Product NO. |
Interface |
Module function |
Operating temperature |
Standard |
Spec |
Note |
---|---|---|---|---|---|---|---|---|
1 |
Azurewave |
AW-CB375NF |
M.2 E KEY |
WIFI+BT |
0°C~70°C |
IEEE 802.11 a/b/g/n/ac and Bluetooth 5.0 |
2.4 GHz:2.412 ~ 2.484 GHz 5 GHz:4.915 ~5.925GHz |
Notice#
Wifi module of Apex Orin NX, not support bluetooth function.
