Apex Orin NX Specification#
Brief#
MiiVii Apex Orin NX is an embedded AI supercomputer. It delivers massive computing capabilities and essential features to terminal devices. With shock resistance connector design, MiiVii Apex Orin NX is suitable for outdoor usage. In addition, MiiVii Apex Orin NX offers clock synchronization function.
Features#
Dual sim card support
M12 Ethernet
High-Precision Clock Synchronization
8×GMSL2 Camera with multiple camera brand support
-25℃-70℃ Operating temperature
Specifications#
Processor#
Jetson Orin NX 8GB |
Jetson Orin NX 16GB |
|
|---|---|---|
AI Performance |
70 INT8 Sparse TOPs |
100 INT8 Sparse TOPS |
GPU |
NVIDIA Ampere Architecture with 1024 NVIDIA CUDA cores and 32 Tensor cores Maximum Operating Frequency: 765 MHz |
NVIDIA Ampere Architecture with 1024 NVIDIA CUDA cores and 32 Tensor cores Maximum Operating Frequency: 918 MHz |
CPU |
6-core NVIDIA A78 CPU |
8-core NVIDIA A78 CPU |
Memory |
8 GB 128-bit LPDDR5 DRAM |
16 GB 128-bit LPDDR5 DRAM |
Deep Learning Accelerator |
1x NVDLA Engines, v2 |
2x NVDLA Engines, v2 |
Storage |
No on-module storage. Connect to external NVMe |
No on-module storage. Connect to external NVMe |
Encoder |
AV1：1x8K30, 2x4K60, 4x4K30, 10x1080p60, 20x1080p30 H.264：1x 4K60，2x4k30，5x 1080p60，11x 1080p30 H.265：1x 8K30，2x4k60，9x4k30, 8x 1080p60，18x 1080p30 VP9：15x 1080p30 |
AV1：1x8K30, 2x4K60, 4x4K30, 10x1080p60, 20x1080p30 H.264：1x 4K60，2x4k30，5x 1080p60，11x 1080p30 H.265：1x 8K30，2x4k60，9x4k30, 8x 1080p60，18x 1080p30 VP9：15x 1080p30 |
Decoder |
AV1：1x 4K60，3x4k30，6x 1080p60，12x 1080p30 H.265：1x 4K60，3x4k30，6x 1080p60，12x 1080p30 H.264：1x 4K60，2x 4K30，5x 1080p60，11x 1080p30 |
AV1：1x 4K60，3x4k30，6x 1080p60，12x 1080p30 H.265：1x 4K60，3x4k30，6x 1080p60，12x 1080p30 H.264：1x 4K60，2x 4K30，5x 1080p60，11x 1080p30 |
I/O#
Interface |
Specification |
|---|---|
Network |
3× Gigabit Ethernet Port in M12 A-Code |
Camera |
8× GMSL2 FAKRA TYPE C（10V,Transmission distance up to 15 meters, GMSL2 compatible with GMSL1） |
Video out |
1× HDMI 2.0（TYPE A） |
USB |
1× USB 3.0（TYPE A）, 1x USB2.0 (TYPE A) 1 x USB 2.0 (TYPE C) for Flash |
GPIO |
2× In（0-24V） 2× Out（0-24V） |
CAN FD |
2× CAN FD（Isolated voltage 3000V, with CAN chip Terminal resistor 120Ω） |
UART |
1× Debug（RS232）, 2× RS232, 2× RS485/RS422 |
SYNC I/O |
1× SYNC_IN（0-12V）, 1× SYNC_OUT（3.3V） |
User Expansion |
1× M.2 M Key（PCIe x4, 2280）, 2× M.2 B Key, 1x M.2 E Key, 2× Nano SIM Socket |
LED |
1× Power LED, 1× SYS LED |
Power Supply#
Power Supply |
Specification |
|---|---|
Input Type |
DC |
Input Voltage |
Wide input 9-36V DC |
Typical consumption |
30W |
Mechanical#
Mechanical |
Specification |
|---|---|
Dimensions (W×D×H) |
227mm×120mm×65mm (I/O ports excluded) |
Weight |
1.8Kg |
Environmental#
Environmental |
Spec |
|---|---|
Operating Temperature |
-25℃-70℃ |
Storage Temperature |
-40℃-80℃ |
Storage Humidity |
10%-90% non-condensing |
Vibration |
2Grms,10Hz~500Hz,1h/axis |
Protection |
IP5X |
Install Dimension#
Dimensions and mounting hole position as below:

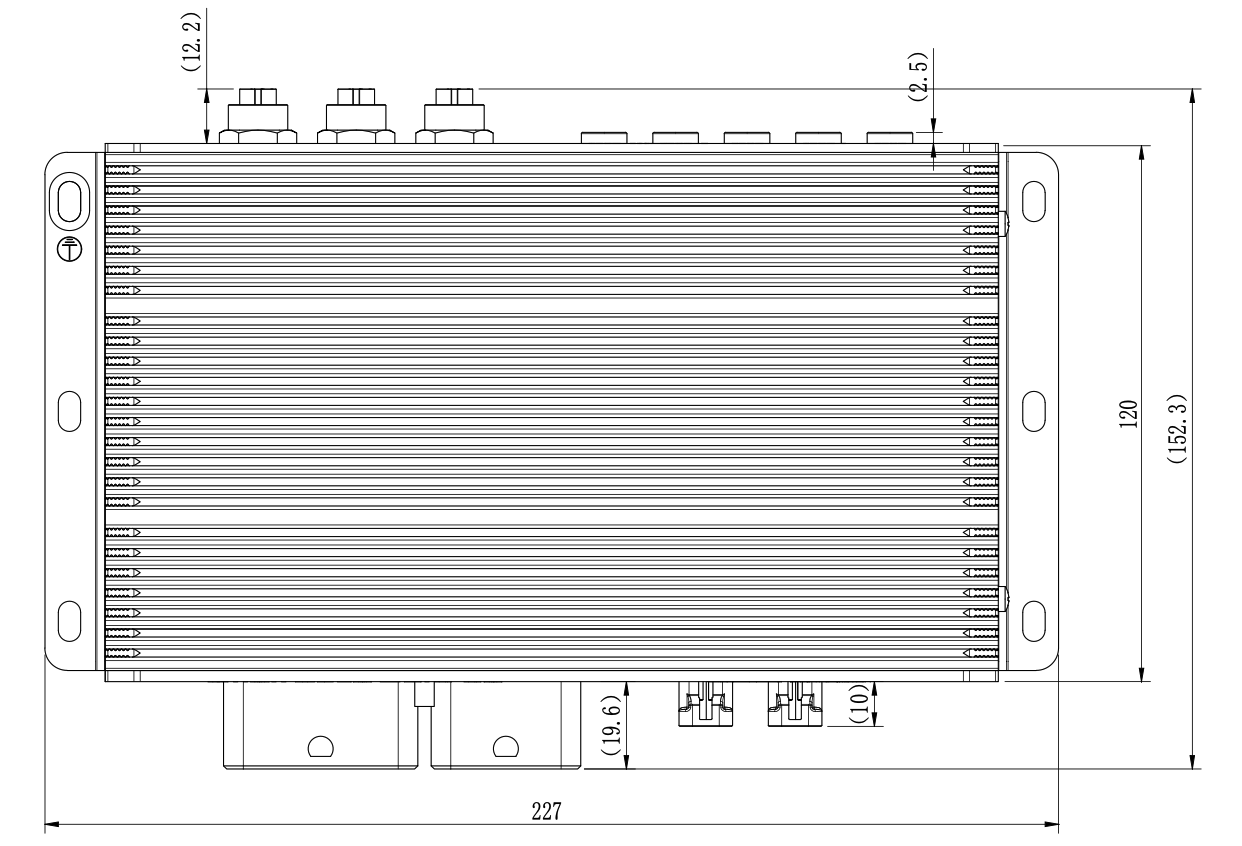

Top View#

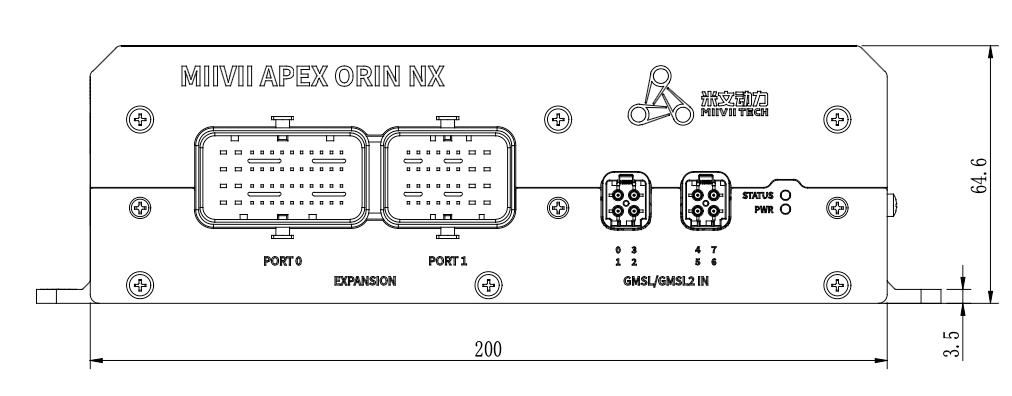

Side View#
