Apex Orin NX 4G Usage#

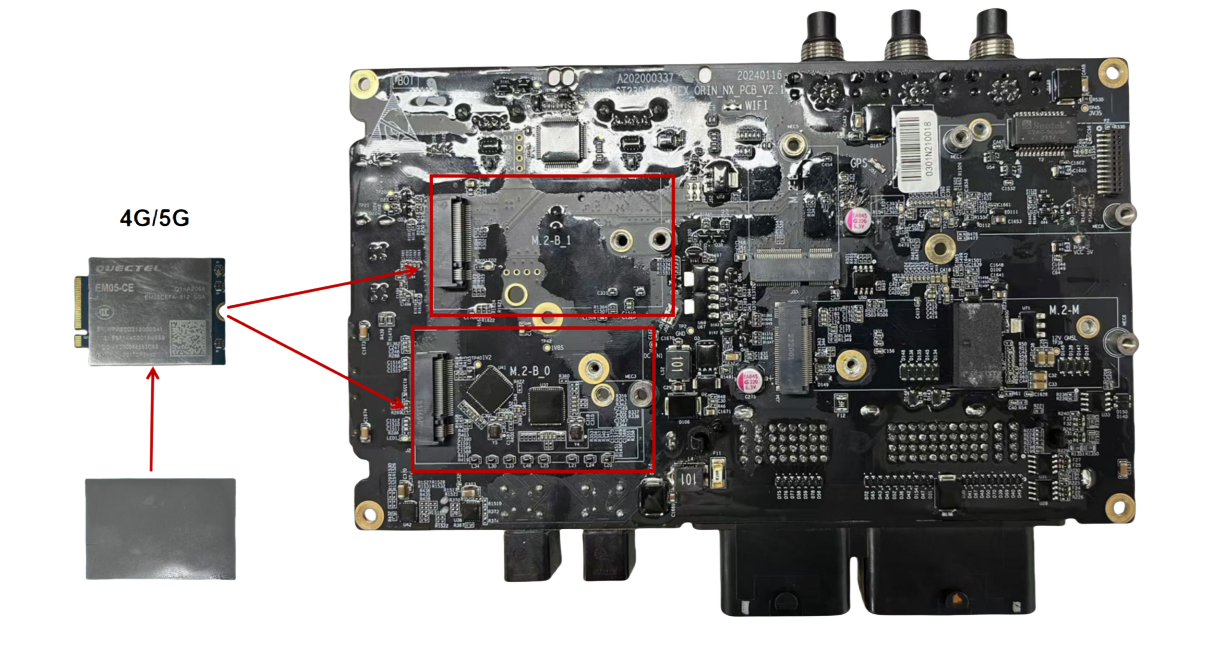

4G Module Installation#
Step1: Remove front screw.
Step2: Remove back screw.
Step3: Remove side screw.
Auto-start settings at boot#
Built-in driver does not require any additional configuration. It starts automatically and dials automatically when it is turned on.
Module configuration method#

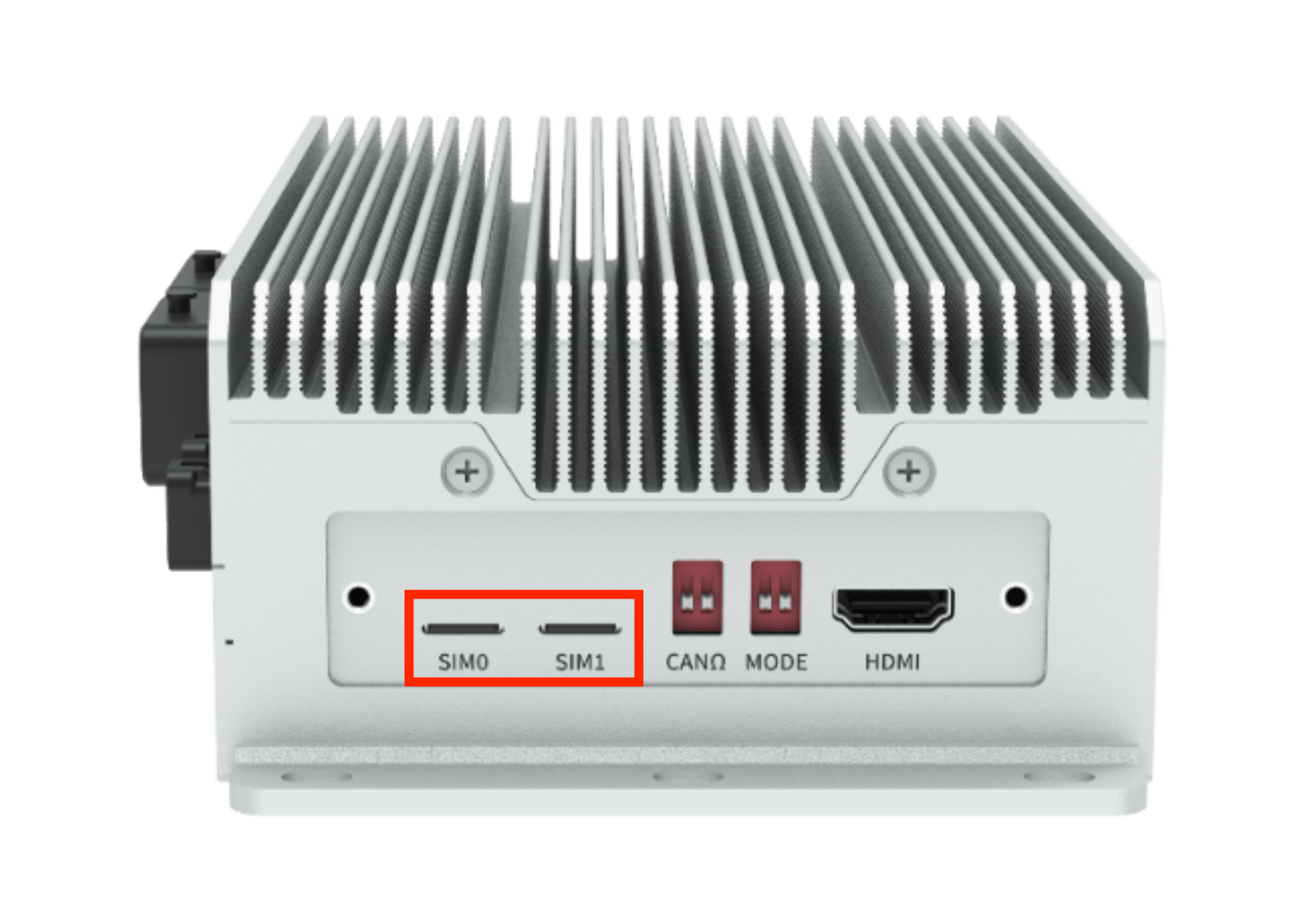

Please note that if you are using an IoT SIM card, there will be issues with binding the SIM card to the device hardware. Please confirm with your communications provider in advance.
System image integrates the corresponding module driver. After the module is installed, the system will automatically recognize it.
M.2 B Key 4G支持清单#
序号 |
品牌 |
产品型号 |
使用接口 |
模块功能 |
工作温度 |
规格 |
备注 |
|---|---|---|---|---|---|---|---|
1 |
移远 |
EM05-CE FA-512-SGA |
M.2 B Key |
4G |
-30ºC - 70ºC |
全网通 Speed Max130Mbps (Download)/Max30Mbps (Upload) |
