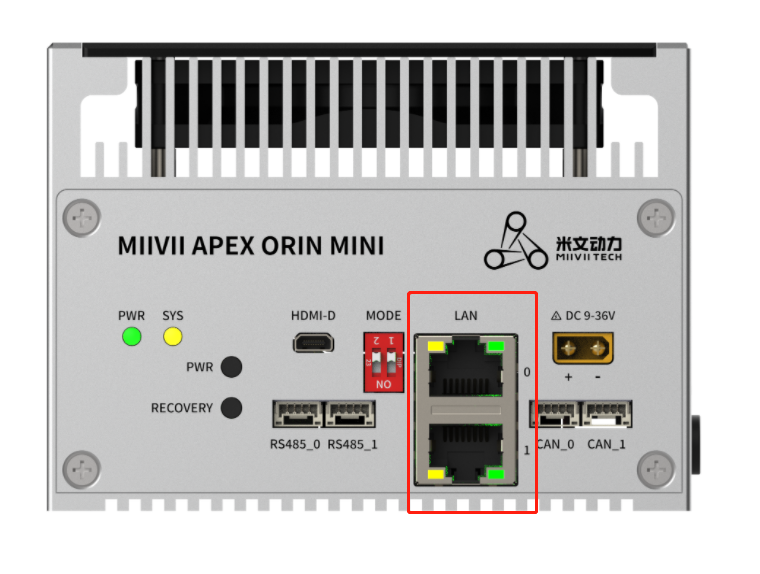

APEX ORIN MINI Gigabit Ethernet#
“Hardware Specifications”#

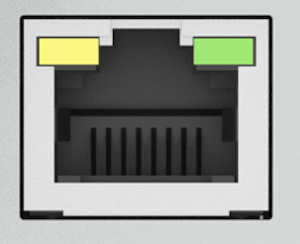

Yellow：Activity LED
Green：Speed LED
Activity LED Off |
Activity LED Orange |
Activity LED Flash of orange |
|
|---|---|---|---|
Speed LED Off |
No connection |
N/A |
10Mbps/100Mbps and data is transitting |
Speed LED Orange |
N/A |
N/A |
N/A |
Speed LED Green |
N/A |
N/A |
1Gbps and data is transitting |
Mapping of Gigabit Ethernet Device Nodes:#
Network Interface |
Network Device |
|---|---|
LAN0 |
eth0 |
LAN1 |
eth1 |
Usage Instructions:
The usage is the same as with a regular network interface.
