APEX ORIN MINI All Interface Descriptions#

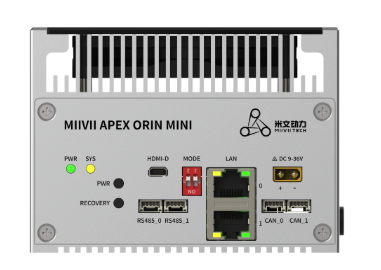

Front Interface Description#
Interface |
Description |
|---|---|
LAN0 |
Gigabit Ethernet Port |
LAN1 |
Gigabit Ethernet Port |
RECOVERY |
Recovery Key |
PWR |
Power Key |
RS485_0 |
485 Interface |
RS485_1 |
485 Interface |
CAN_0 |
CAN Port |
CAN_1 |
CAN Port |
HDMI-D |
Micro HDMI Port |
MODE |
Boot Mode Switch |
DC 9-36V |
Power Input Port |

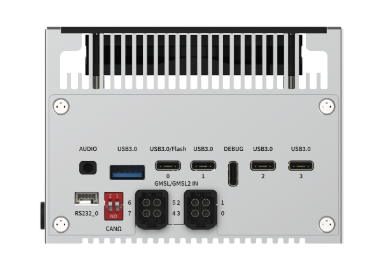

Side Interface Description#
#
Interface |
Description |
|---|---|
AUD |
3.5mm Audio Jack |
RS232 |
232 Port |
CAN2 |
CAN Switch |
USB2.0 |
USB 2.0 Port |
USB3.0/FLASH |
USB 3.0 Port with Flashing Capability |
DEBUG |
USB Type-C Debug Port |
USB3.0 |
USB 3.0 Port |
GMSL/GMSL2 IN |
GMSL2 Interface for Connecting GMSL Devices |

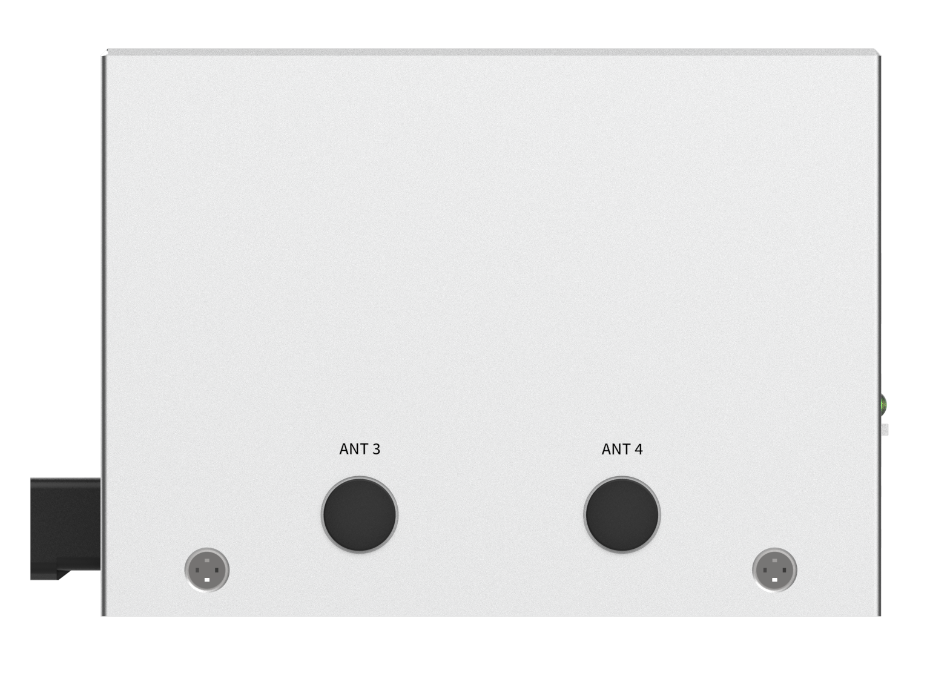

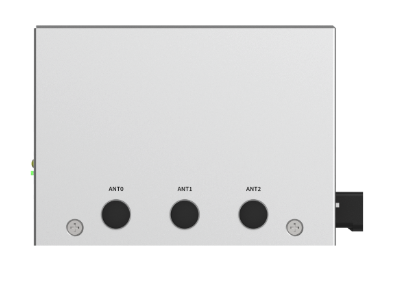

Side Interface Description#
Interface |
Description |
|---|---|
ANT0~5 |
Wireless Port |
