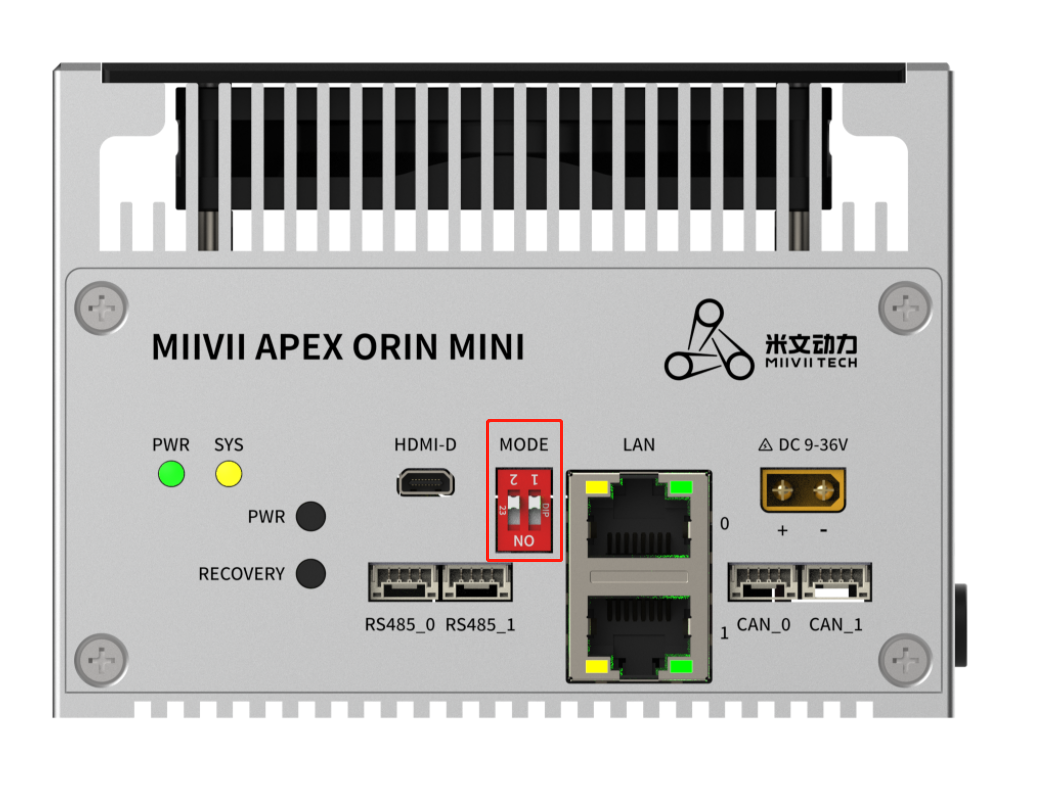

APEX ORIN MINI Boot Mode Switch

(Note: Because the direction of this dip switch is opposite to the other silk screen, please select the corresponding mode according to the diagram and the silk screen on the switch.)

Auto Mode(Default)

Device will boot automatically when power on.

Test Mode

Device will boot automatically, no matter the SOM is good/not. For factory usage.

Manual Mode

Device will not boot when power on, until power key is pressed.

IGN Mode

Device will not boot when power on, controlled by IGN.
