EVO ONX WIFI Usage#
WIFI Module Installation:#
Remove the following panel:#

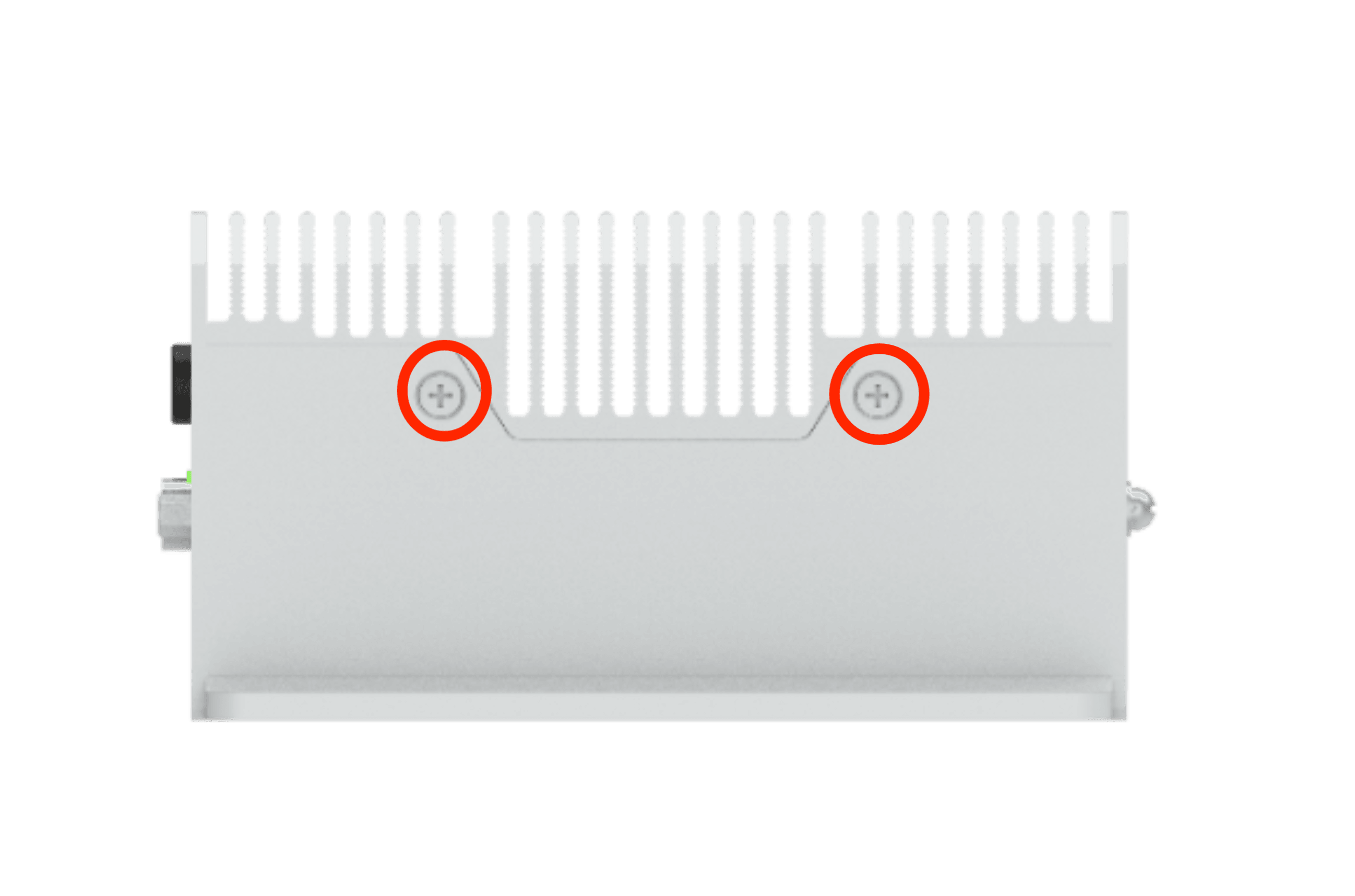

Left:#

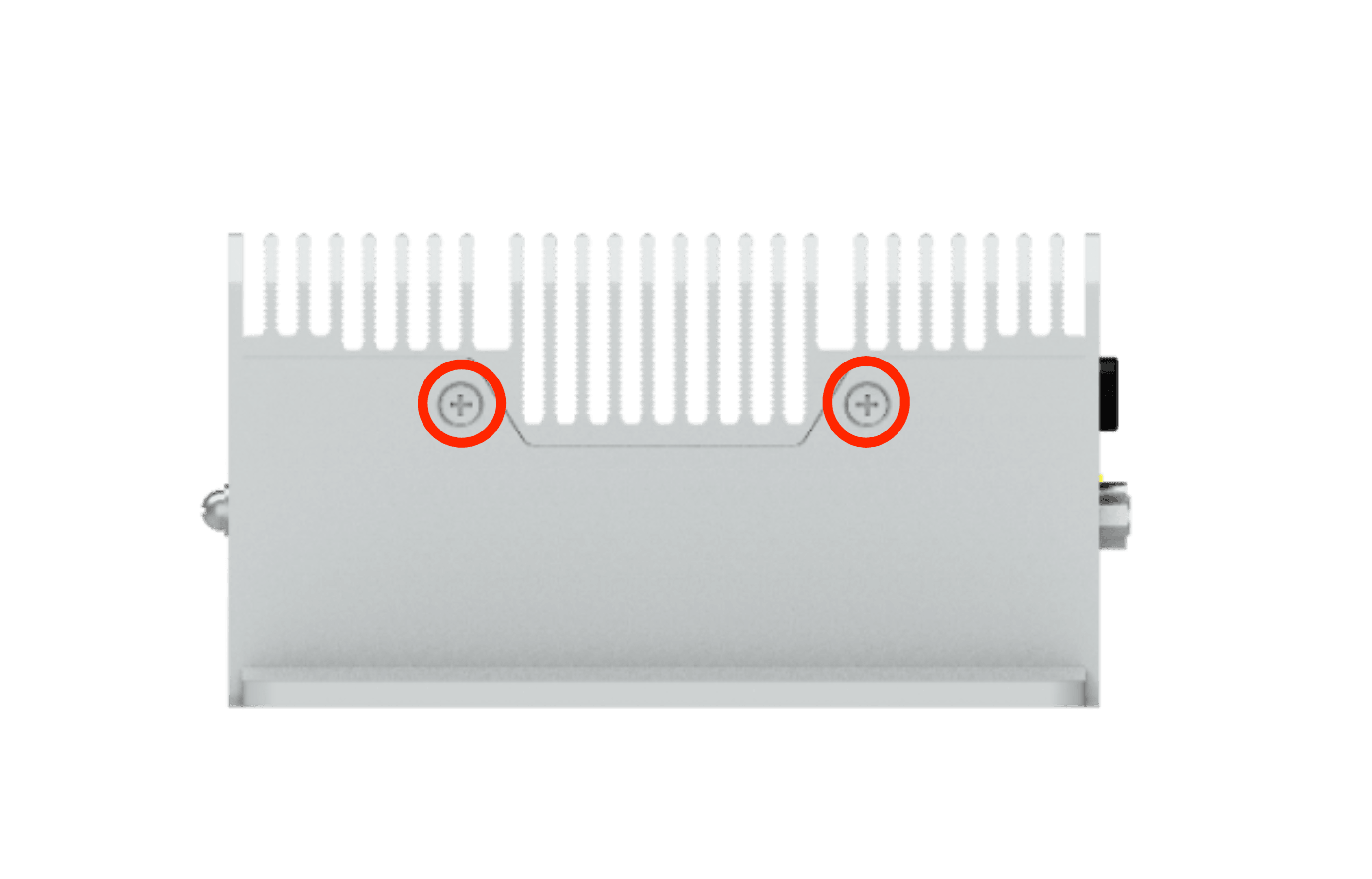

Right:#
#

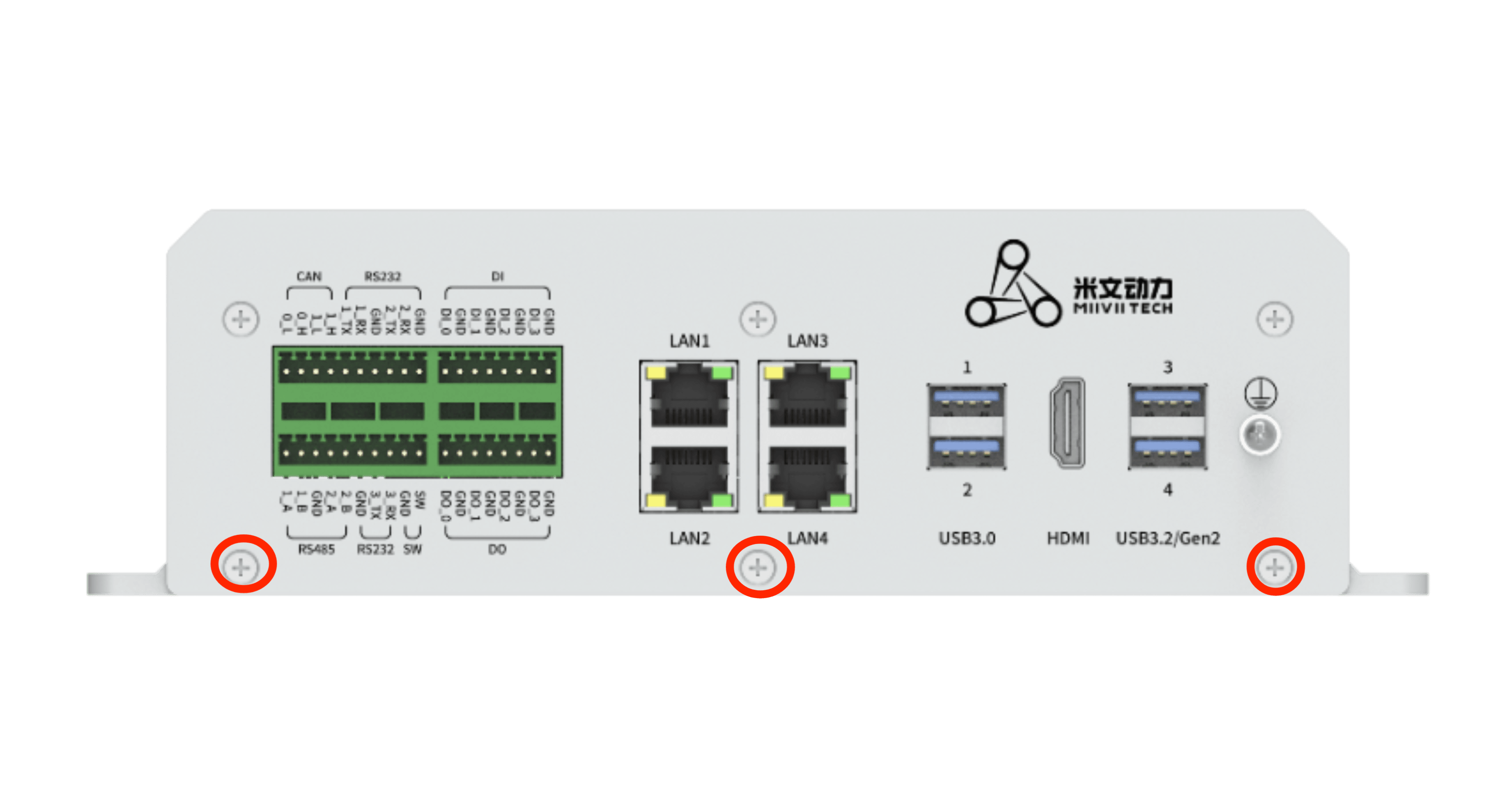

Front：#
#

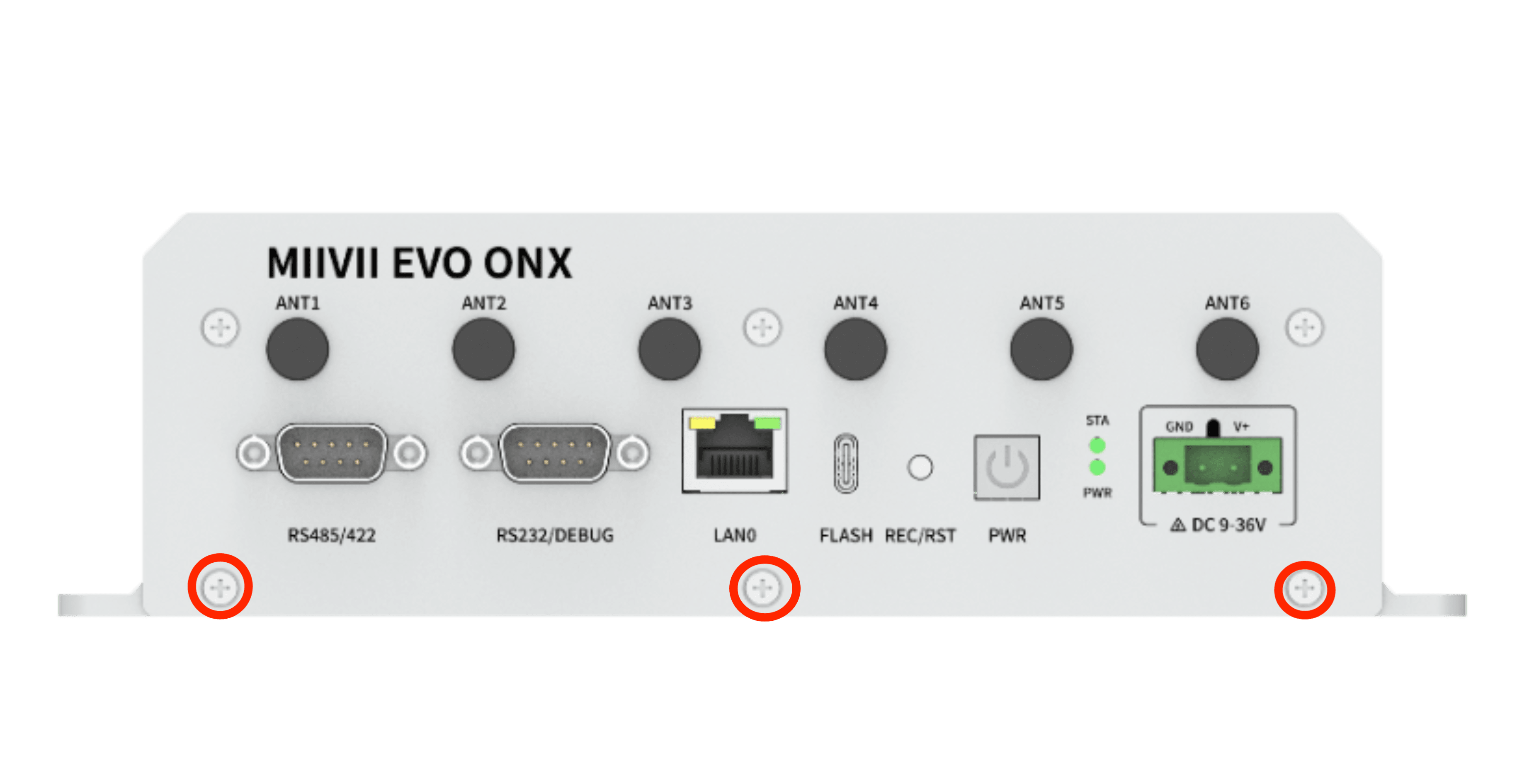

Back：#
#
WIFI Module Installation:#
Installation Steps:#
Install the WiFi module on the PCIe socket, securing it with one M3*6 cross-head screw with adhesive.
Connect the antenna extension cables, with IPEX interfaces clipped onto the WiFi module, and SMA interfaces secured to the device’s ANT5 and ANT6 antenna interfaces.
Secure the antennas to the device’s ANT5 and ANT6 antenna interfaces.
Reference Image:#
Required Accessories:#
WIFI Module x1
M3*6 Cross-Head Screw with Adhesive x1
IPEX to SMA Antenna Adapter Cable
M.2 E WIFI Support List#
NO. |
Brand |
Product NO. |
Interface |
Module function |
Operating temperature |
Standard |
Spec |
Note |
|---|---|---|---|---|---|---|---|---|
1 |
Azurewave |
AW-CB375NF |
M.2 E KEY |
WIFI+BT |
0°C~70°C |
IEEE 802.11 a/b/g/n/ac and Bluetooth 5.0 |
2.4 GHz:2.412 ~ 2.484 GHz 5 GHz:4.915 ~5.925GHz |
Wireless Setting#
WiFi Setting#

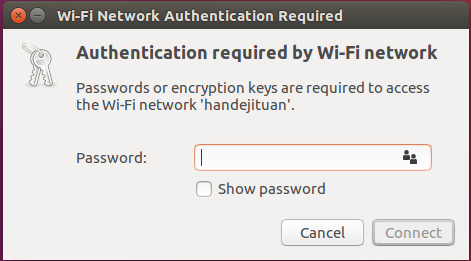

Click the network icon in upper-right corner of the desktop. Find the name of your WiFi network and click on it. Enter your password and click ‘Connect’.
WiFi Connection
