EVO ONX Power Interface#
Definition of Power Connector Pinout#
NO |
Pin |
Description |
|---|---|---|
1 |
GND |
DC power supply (negative) |
2 |
VCC |
DC power supply (positive) |
Hardware Specifications#
Input |
Specification |
|---|---|
DC |
9~36V |

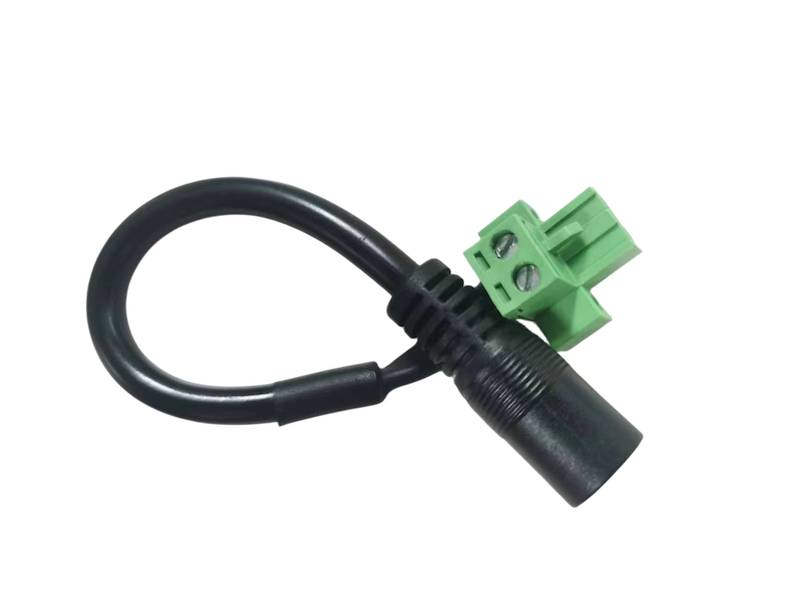

Power Adapter Cable#
Definition of Power Adapter Cable Pinout#
NO |
Pin |
Description |
|---|---|---|
1 |
VCC |
DC power supply (positive) |
2 |
GND |
DC power supply (negative) |
NO |
Pin |
Description |
|---|---|---|
1 |
VCC |
DC power supply (positive) |
2 |
GND |
DC power supply (negative) |
