APEX ORIN NANO Specification#

Brief#

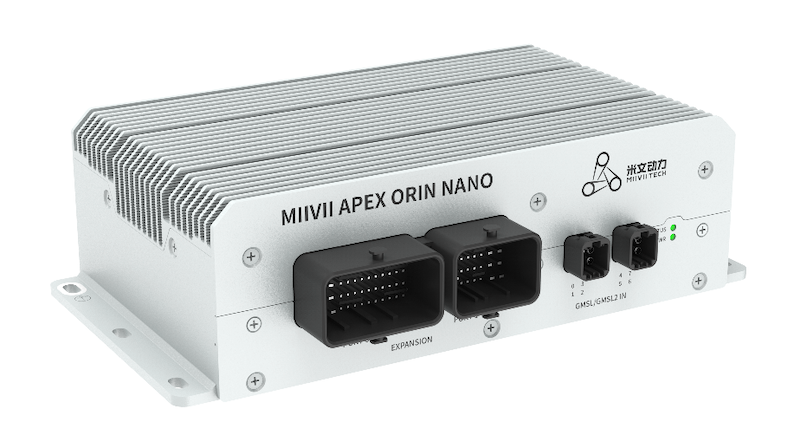

MIIVII APEX ORIN NANO is an embedded AI supercomputer. It delivers massive computing capabilities and essential features to terminal devices. With shock resistance connector design, MIIVII APEX ORIN NANO is suitable for outdoor usage. In addition, MIIVII APEX ORIN NANO offers clock synchronization function.

Features#

  • Dual sim card support

  • M12 Ethernet

  • High-Precision Clock Synchronization

  • 8×GMSL2 Camera with multiple camera brand support

  • -25℃-70℃ Operating temperature

Specifications#

Processor#

          Processor

Jetson Orin Nano 4GB

Jetson Orin Nano 8GB

AI Performance

34 INT8 Sparse TOPs

67 INT8 Sparse TOPS

GPU

512-core NVIDIA Ampere architecture GPU with
16 Tensor Cores

1024-core NVIDIA Ampere architecture GPU with
32 Tensor Cores

CPU

6-core Arm® Cortex®-A78AE v8.2 64-bit CPU
1.5MB L2 + 4MB L3

6-core Arm® Cortex®-A78AE v8.2 64-bit CPU
1.5MB L2 + 4MB L3

Memory

4GB 64-bit LPDDR5
51 GB/s

8GB 128-bit LPDDR5
102 GB/s

DL Accelerator

-

-

Storage

No on-module storage. Connect to external NVMe

No on-module storage. Connect to external NVMe

Video Encode

1080p30 supported by 1-2 CPU cores

1080p30 supported by 1-2 CPU cores

Video Decode

1x 4K60 (H.265)
2x 4K30 (H.265)
5x 1080p60 (H.265)
11x 1080p30 (H.265)

1x 4K60 (H.265)
2x 4K30 (H.265)
5x 1080p60 (H.265)
11x 1080p30 (H.265)

I/O#

Interface

Specification

Network

3× Gigabit Ethernet Port in M12 A-Code

Camera

8× GMSL2 FAKRA TYPE C（10V,Transmission distance up to 15 meters, GMSL2 compatible with GMSL1）

Video out

1× HDMI 2.0（TYPE A）

USB

2× USB 3.0（TYPE A, one have Flash function）

GPIO

2× In（0-24V） 2× Out（0-24V）

CAN FD

2× CAN FD（Isolated voltage 3000V, with CAN chip Terminal resistor 120Ω）

UART

1× Debug（RS232）, 2× RS232, 2× RS485/RS422

SYNC I/O

1× SYNC_IN（0-12V）, 1× SYNC_OUT（3.3V）

User Expansion

1× M.2 M Key（PCIe x4, 2280）, 2× M.2 B Key, 1x M.2 E Key, 2× Nano SIM Socket

LED

1× Power LED, 1× SYS LED

Power Supply#

Power Supply

Specification

Input Type

DC

Input Voltage

Wide input 9-36V DC

Typical consumption

30W

Mechanical#

Mechanical

Specification

Dimensions (W×D×H)

227mm×120mm×65mm (I/O ports excluded)

Weight

1.8Kg

Environmental#

Environmental

Spec

Operating Temperature

-25℃-70℃

Storage Temperature

-40℃-80℃

Storage Humidity

10%-90% non-condensing

Vibration

2Grms,10Hz~500Hz,1h/axis

Protection

IP5X

Install Dimension#

Dimensions and mounting hole position as below:

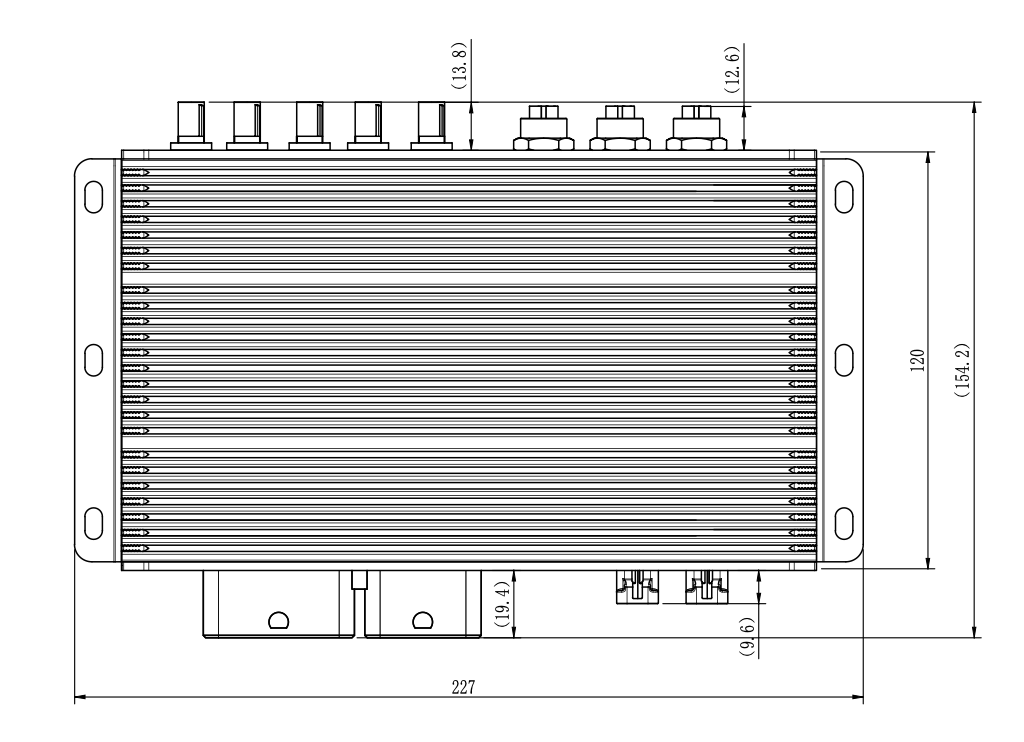

Top View#

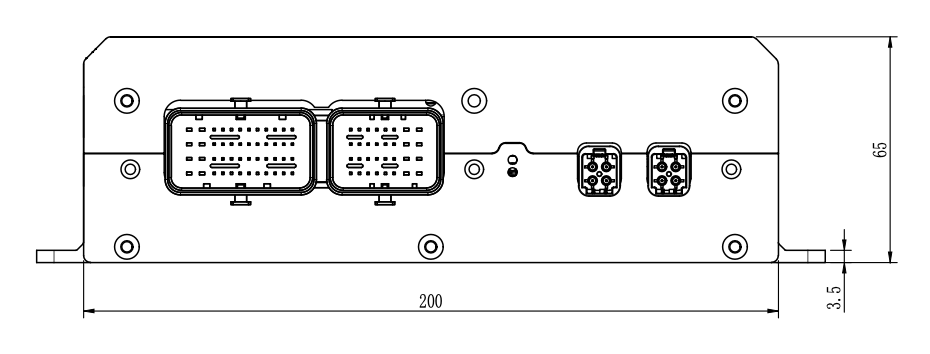

Side View#
