APEX ORIN NANO GPIO Digital Input

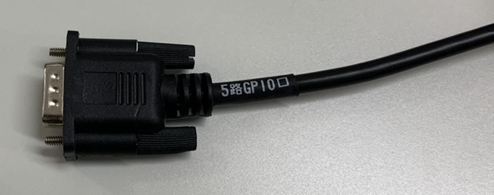

Hardware Connection

PIN Definition

接口名称	DB9针脚序号	接口说明	设备节点
DI_0	1	GPIO IN	/dev/gpio/di0
DI_1	2	GPIO IN	/dev/gpio/di1
DO_0	3	GPIO OUT	/dev/gpio/do0
DO_1	4	GPIO OUT	/dev/gpio/do1
GND	6-9	地

DO Hardware Specification

	Description
Vref	Voltage to be supplied externally at the user side.
Passive Load	E.g. LED, Relay, Solenoid Valve.
Active Sourcing Input	Active Sourcing Input, DI of PLC, e.g.

	Specification
Vref	3.3~36V

DO Usage

The usage of GPIO is as below

sudo /opt/miivii/features/gpio/bin/miivii_get_di_value <DI number>
#<DI number>: Represents the sequence number of the DI. 0 represents DI0, 1 represents DI1, and so on.
#The command return value is the current level value read from the DI, where 0 represents low level and 1 represents high level.

#Example: Read the input of DI0
#sudo /opt/miivii/features/gpio/bin/miivii_get_di_value 0

Compile sample code

cp -r /opt/miivii/features ~/
cd ~/features/gpio
sudo make;
