LITE NANO MINI 规格书#

简介 Brief#

米文Lite Nano MINI是一款专为智能图像分析设计的嵌入式人工智能计算机，能够为众多终端设备赋予高达0.5 TFLOPS(FP16)的计算力。Lite Nano MINI提供高效能的主动散热设计，具有抗冲击和防静电保护。同时Lite Nano MINI体积小巧，接口丰富。

产品外观#

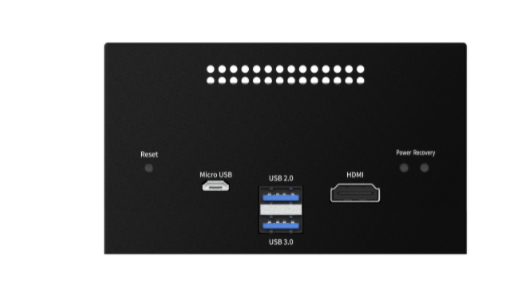

正视图#

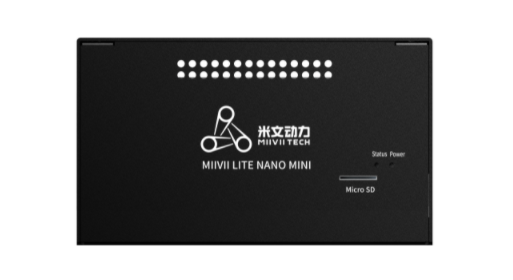

后视图#

左视图#

右视图#

俯视图#

仰视图#

特性#

  • 高效主动散热设计

  • 0℃-45℃工作温度

  • 工业级防静电

  • 体积小高性能

产品规格#

处理器模组#

处理器模组 Processor#

Specification

Processor

NVIDIA Jetson Nano

AI Performance

Up to 472GFLOPS

CPU

Quad-Core ARM® Cortex®-A57 MPCore

GPU

NVIDIA Maxwell™ Structure 128-Core NVIDIA CUDA® Core

Memory

4 GB 64 bit LPDDR4 1600 MHz – 25.6 GB/s

Storage

16GB eMMC 5.1

Video Encode

1x 4Kp30
2x1080p60
4x1080p30
4x720p60
9x720p30
(H.265 & H.264)

Video Decode

1x 4K60
2x 4K30
4x 1080p60
8x 1080p30
9x 720p60
(H.265 & H.264)

接口#


Interface

Quantity

Note

Function Key

Power Button

1


Recovery Button

1


Reset Button

1


Network

Ethernet

1×Gigabit Port

RJ45

Video output

HDMI

1×HDMI 2.0 TYPE A

5V 1A

USB

USB

1×USB 3.0 TYPE A
1×USB 2.0 TYPE A
1×USB 2.0 Micro USB

USB 5V, 1A
Micro USB as a Flashing Port

I/O

UART

1xRS232
1xTTL

TTL 3.3V

GPIO

3xDI
2xDO

3.3V

I2C

1


User Expansion

M.2

1×M.2 M Key

2242 NVME SSD

TF Socket

1xTF Slot

MicroSD card supported

供电#

Power Supply

Spec

Input Type

DC

Input Voltage

12V DC

Typical consumption

18W

结构#

Mechanical

Spec

Dimensions (W×H×D)

110mm×64mm×64mm

Weight

475g

环境#

Environmental

Spec

Operating Temperature

0℃-45℃, 0.2~0.3m/s air flow1

Storage Temperature

-25℃-80℃

Storage Humidity

10%-90% non-condensing

Vibration

1Grms,10Hz~500Hz,1h/axis

ESD

Touch 4KV, Air 8KV2

TVS

1KV

认证#

Certification

Status

CCC, CE, FCC, RoHS, SRRC

Processing

[1]  According to GB/T 2423-2008[2]  According to IEC 61000-4-2，Level 3

尺寸及安装#

LITE NANO MINI主体尺寸及安装孔位尺寸如图:(Unit:mm)

主视图#

左视图#

安装孔位图#
