EVO ONO WIFI Usage#
WIFI Module Installation:#
Remove the following panel:#

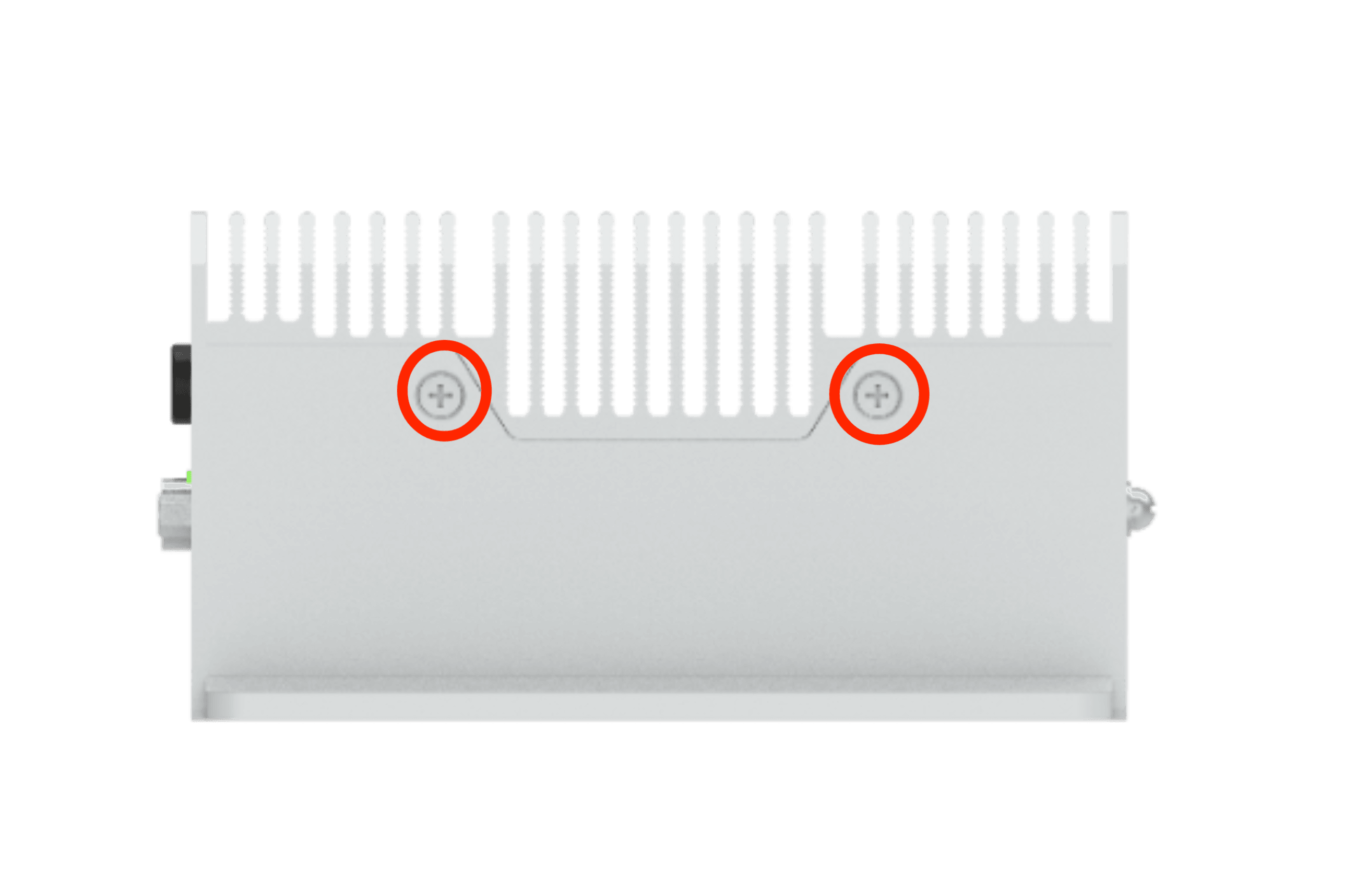

Left:#

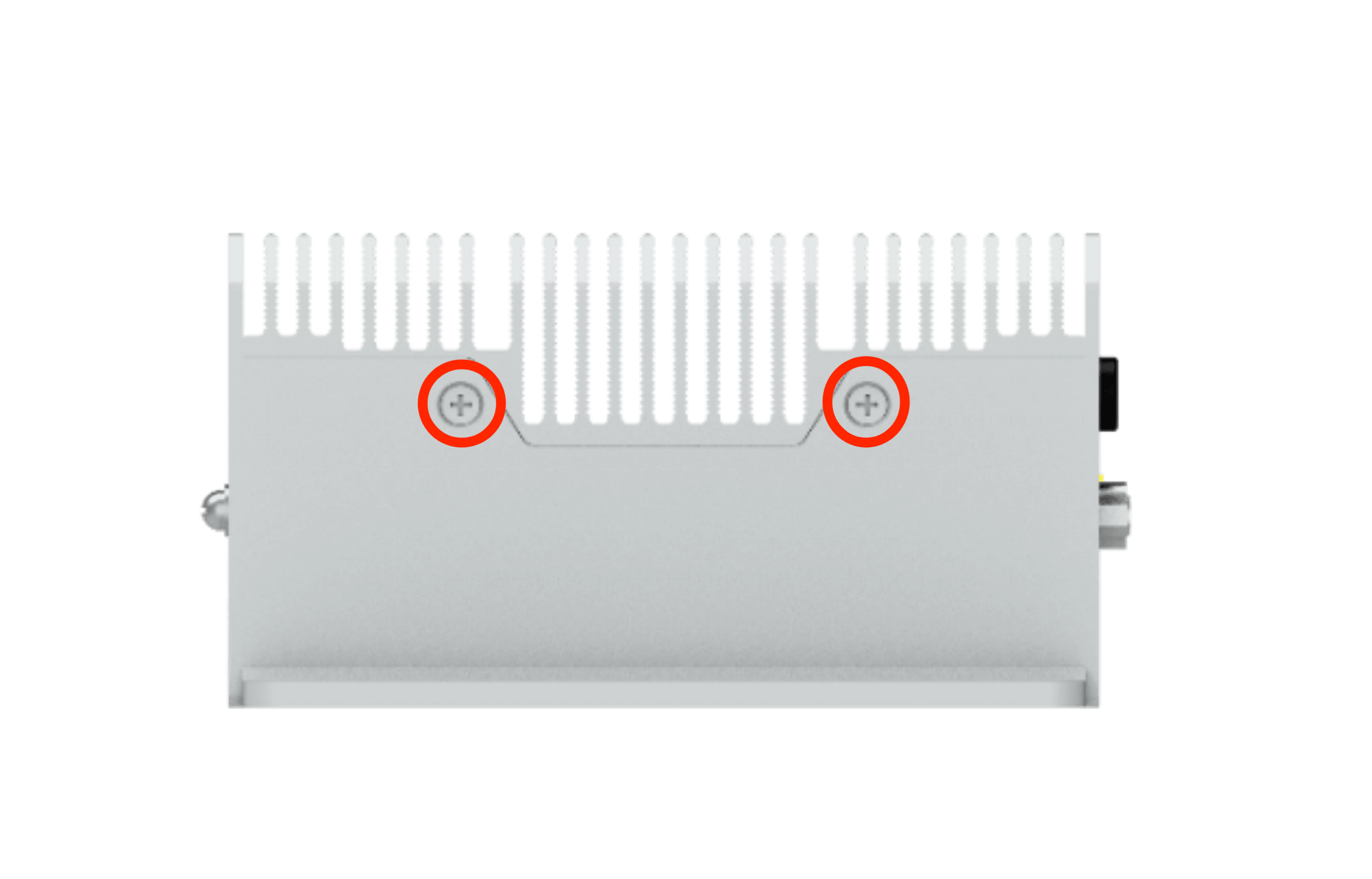

Right:#
#

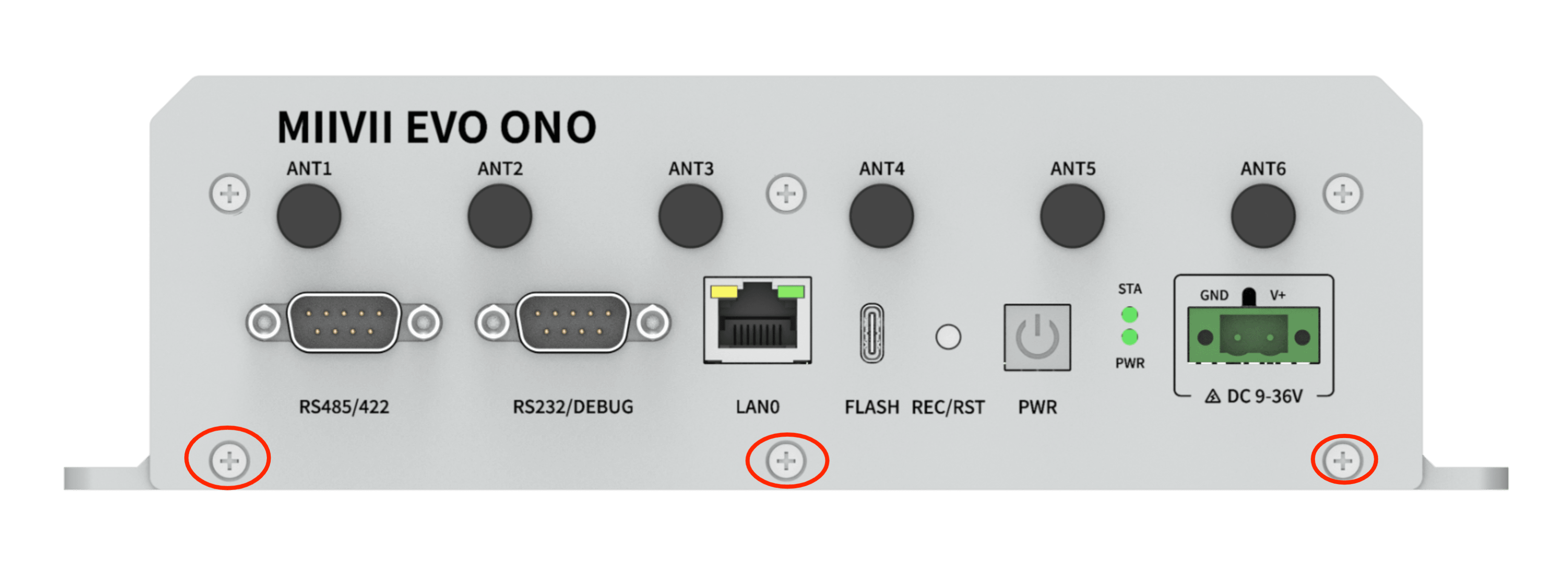

Front：#
#

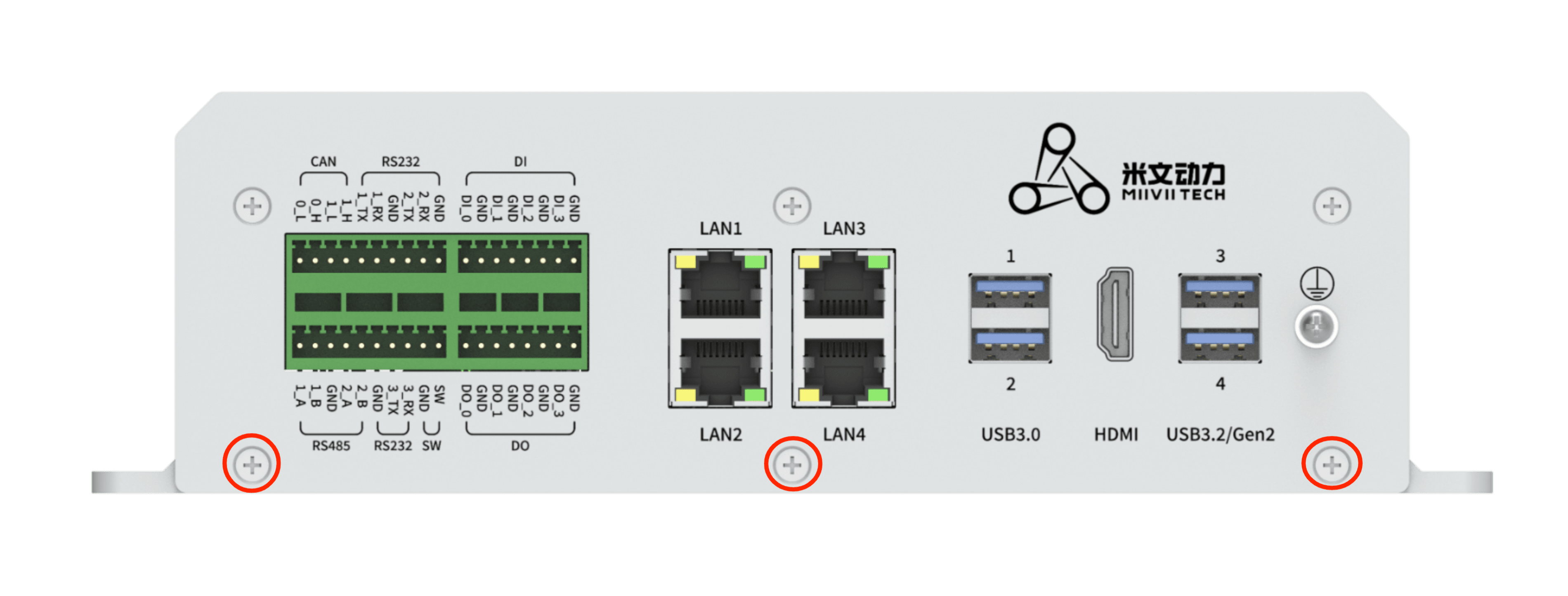

Back：#
#
WIFI Module Installation:#
Installation Steps:#

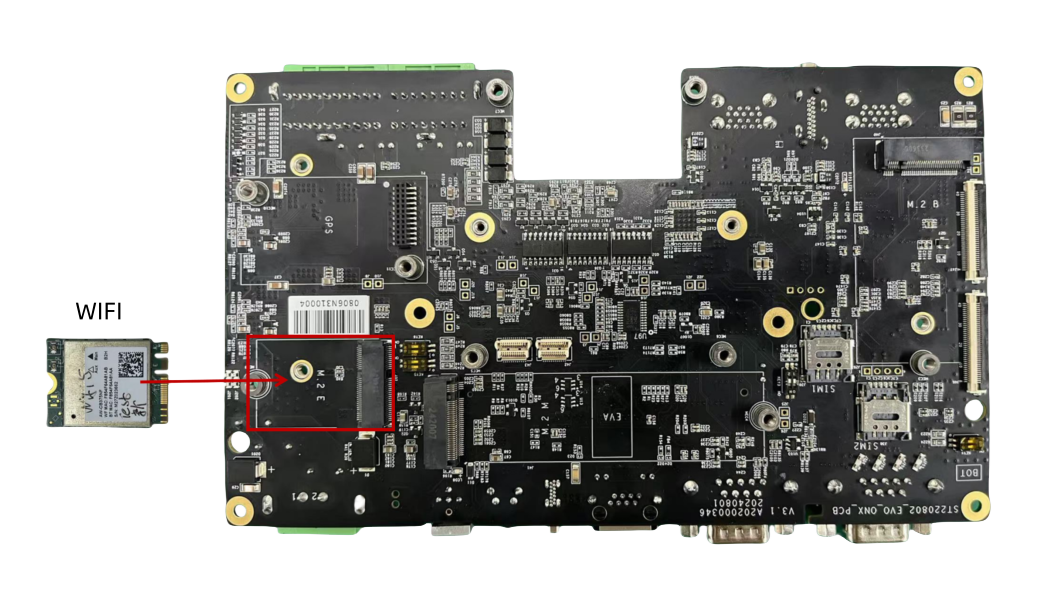

Install the WiFi module on the seat shown in the picture, lock with 1 M3*6 Phillips screws with glue
Prepare antenna adapter cables, IPEX interface snap on the WIFI module, SMA interface female fixed to the device ANT5 and ANT6 antenna interface
3.Fix the antenna to the ANT5 and ANT6 antenna connector of the device.
Reference Image:#
Required Accessories:#
WIFI Module x1
M3*6 Cross-Head Screw with Adhesive x1
IPEX to SMA Antenna Adapter Cable
M.2 E WIFI Support List#
NO. |
Brand |
Product NO. |
Interface |
Module function |
Operating temperature |
Standard |
Spec |
Note |
|---|---|---|---|---|---|---|---|---|
1 |
Azurewave |
AW-CB375NF |
M.2 E KEY |
WIFI+BT |
0°C~70°C |
IEEE 802.11 a/b/g/n/ac and Bluetooth 5.0 |
2.4 GHz:2.412 ~ 2.484 GHz 5 GHz:4.915 ~5.925GHz |
Wireless Setting#
WiFi Setting#

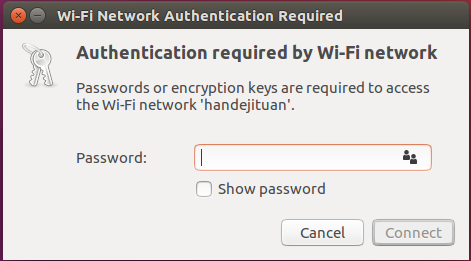

Click the network icon in upper-right corner of the desktop. Find the name of your WiFi network and click on it. Enter your password and click ‘Connect’.
WiFi Connection
