EVO ONO SSD Usage#

SSD Card Installation:#

Remove the following panel:#

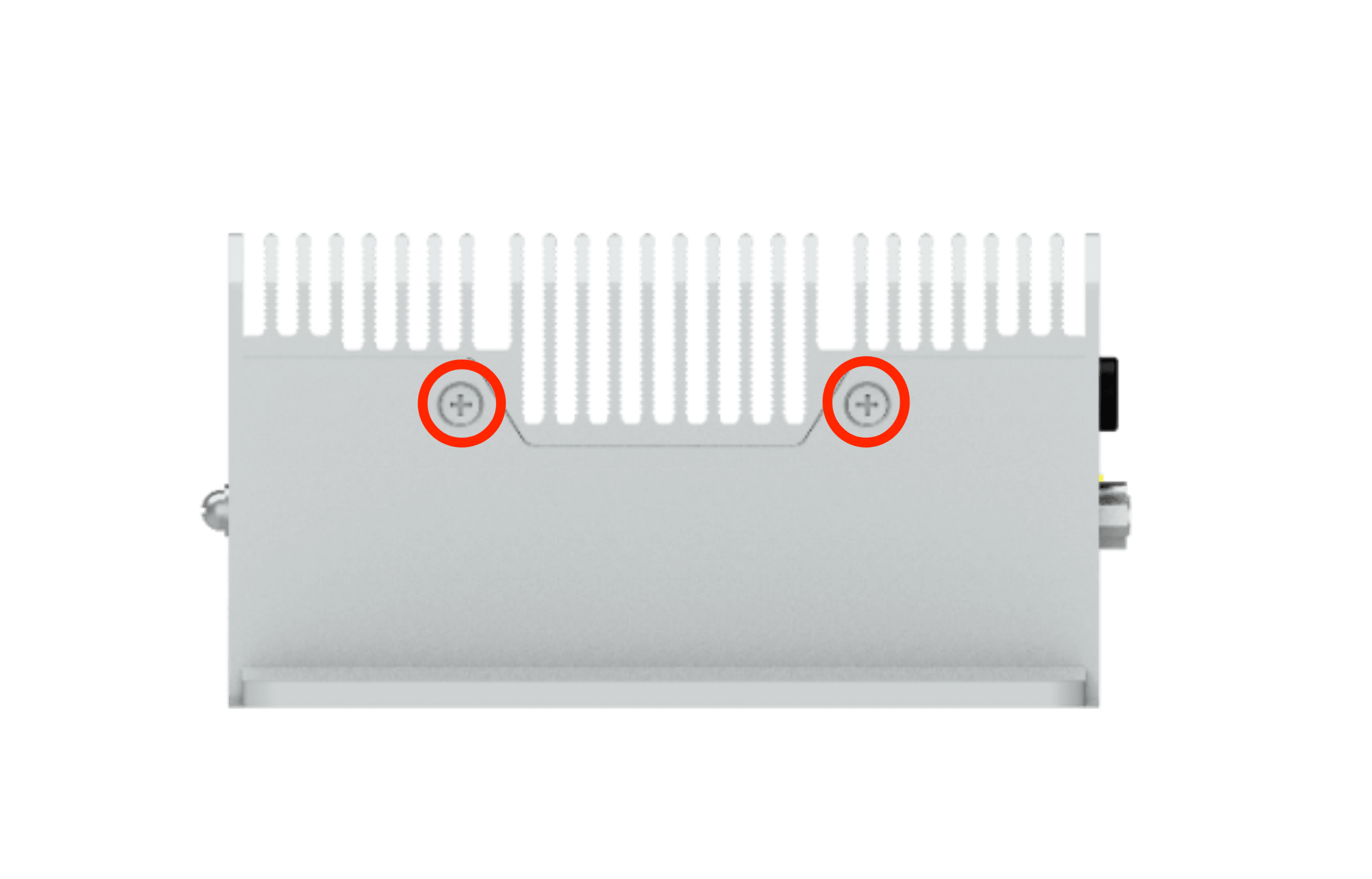

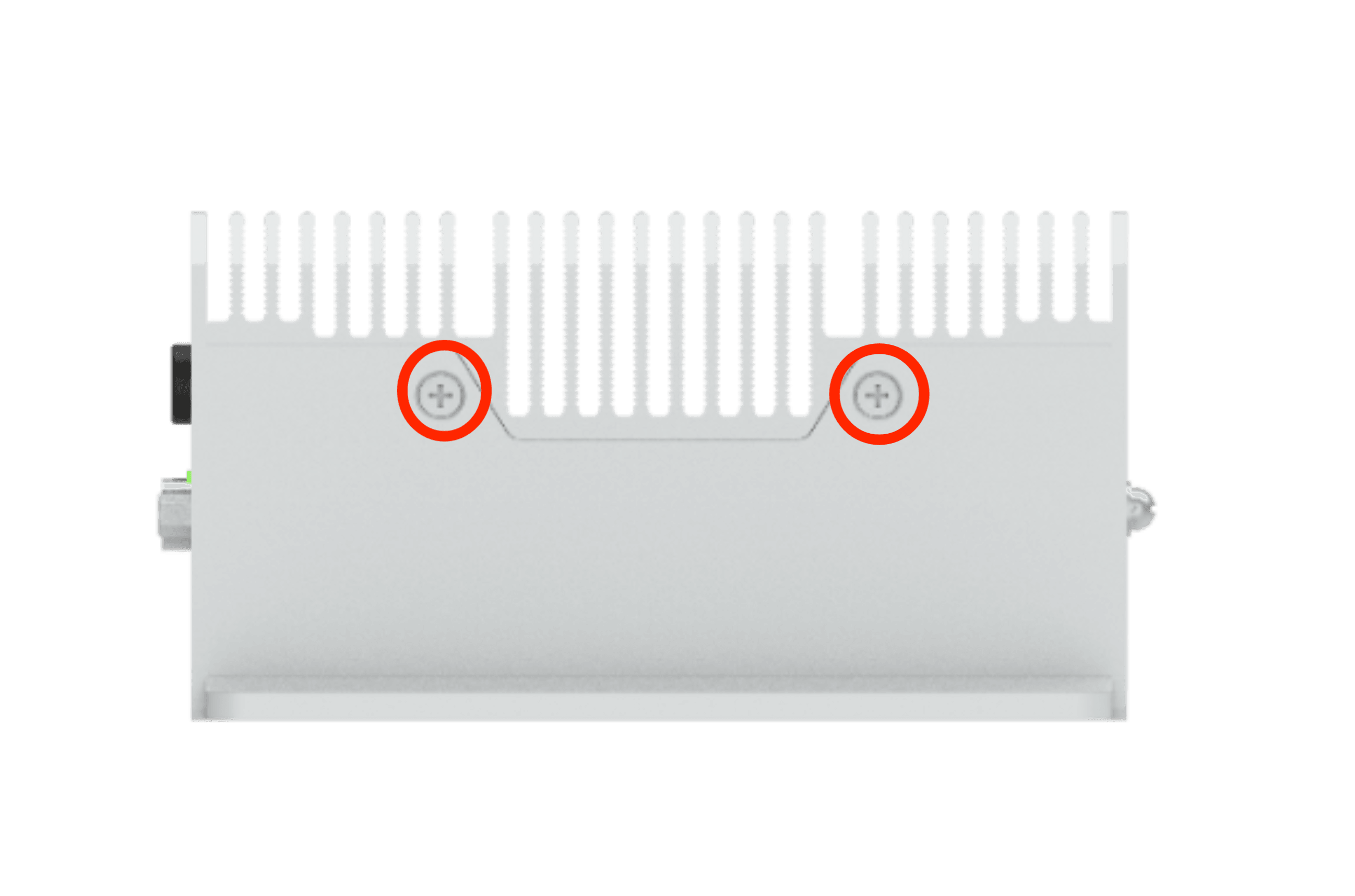

Left:#

#

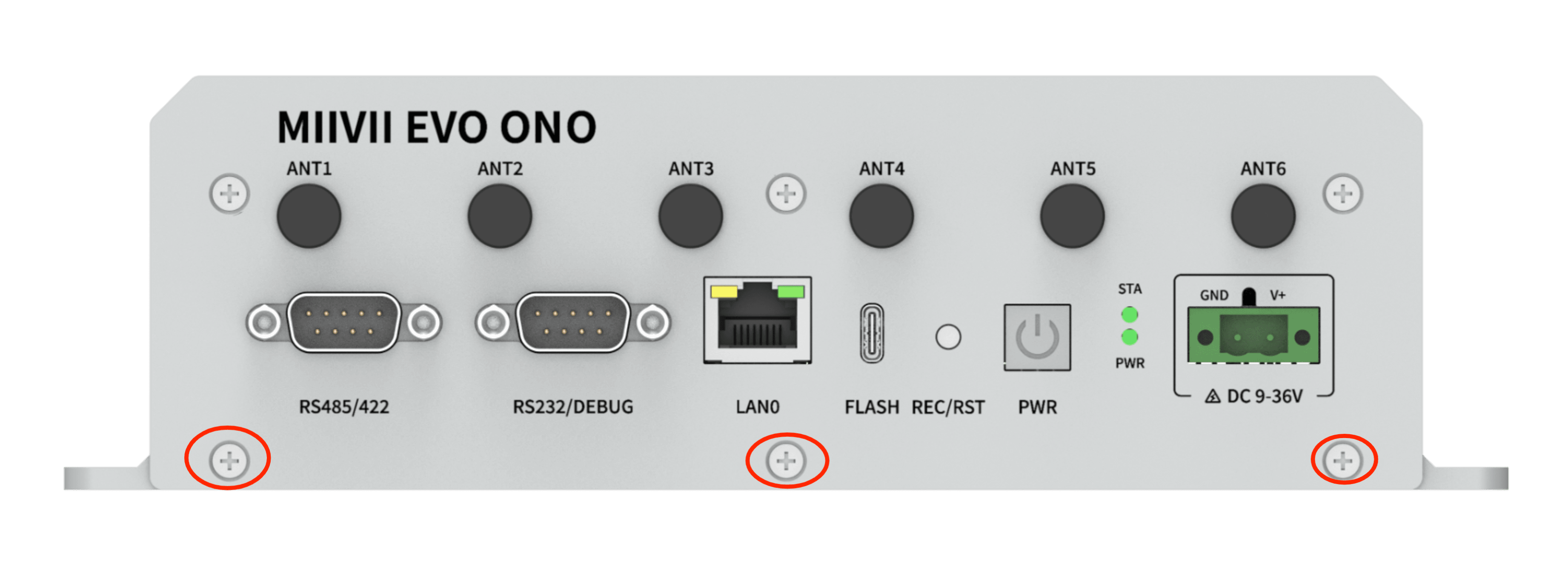

Front：#

#

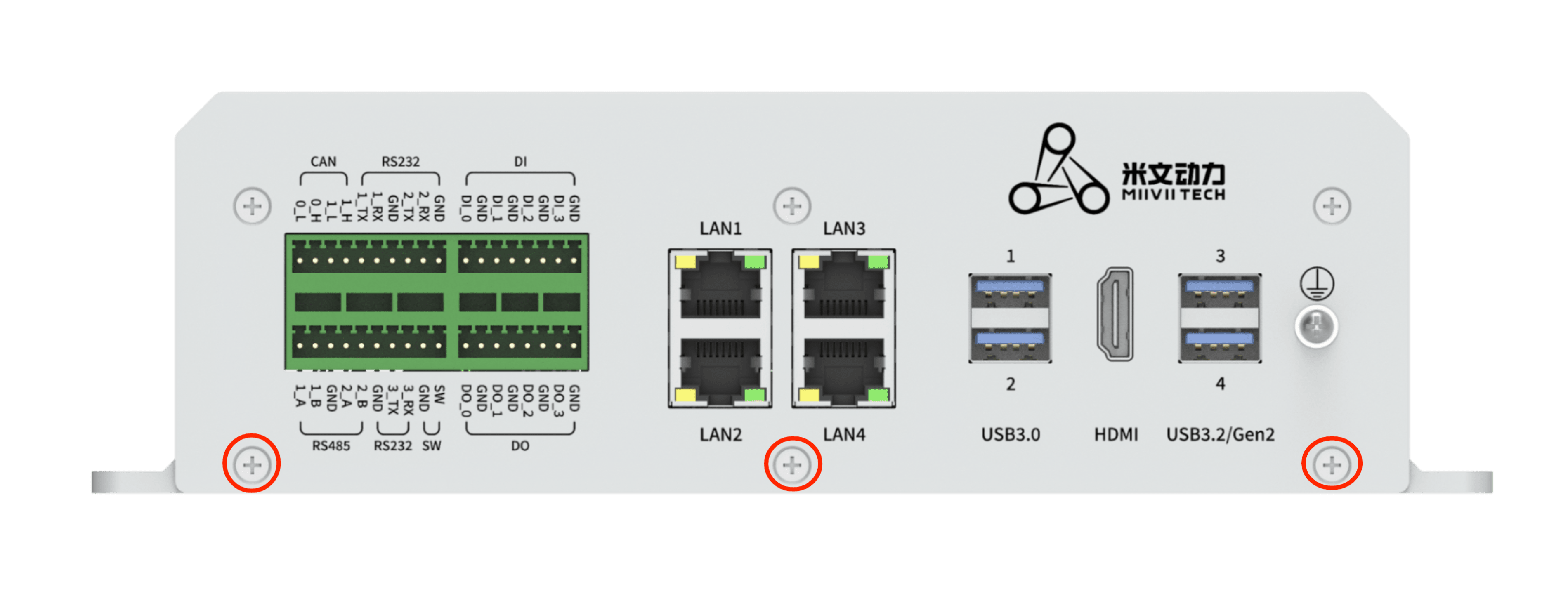

Back：#

#

SSD Card Installation:#

Installation Steps:#

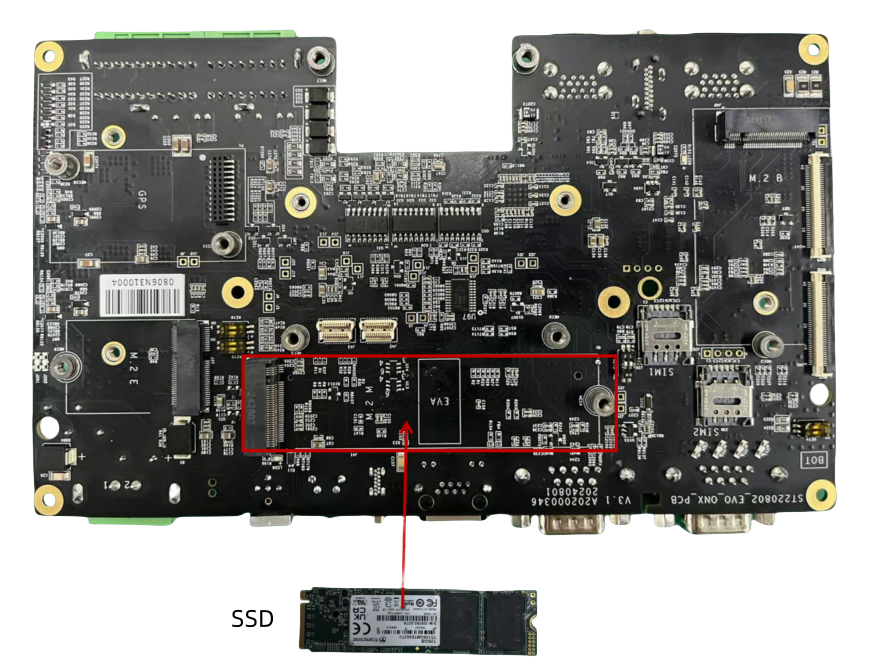

1.Install the SSD on the holder shown in the picture with 1 M3*6 Phillips with adhesive screws.

  1. Put a thermal pad on the SSD, thickness: 2.5mm.

Reference Image:#

Required Accessories:#

  • SSDx1

  • M3*6 Phillips screws with adhesive x1

  • 2.5mm thermal pad x1

Notes:#

  • A thermal pad is required for the 4G/5G module to facilitate heat dissipation.

M. 2 SSD hard disk#

Check ssd information:

sudo fdisk -lu

Figure screenshot of viewing hard disk information page

Format hard disk:

sudo mkfs -t ext4 /dev/nvme0n1

Figure screenshot of formatted hard disk

View hard disk UUID:

sudo blkid /dev/nvme0n1

Figure screenshot of hard disk UUID

Setting method of automatic mounting SSD:** Create a systemd service in the /etc/systemd/system path to automatically mount the **SSD when booting, such as: miivii_mount_ssd.service

#创建服务miivii_mount_ssd.service
vim miivii_mount_ssd.service
[Unit]
Description=MIIVII specific script
After=udev.service

[Service]
ExecStart=/etc/systemd/miivii_mount_ssd.sh

[Install]
WantedBy=multi-user.target

Create a script under the path of / etc / SYSTEMd / to mount the hard disk, such as miivii_ mount_ ssd. sh

#创建服务脚本miivii_mount_ssd.sh
vim miivii_mount_ssd.sh
#!/bin/bash
mount -o rw /dev/nvme0n1 /home/nvidia/workspace

change mode for this script

sudo chmod +x miivii_mount_ssd.sh

Set the mounted SSD service to start at boot

sudo systemctl enable miivii_mount_ssd.service
