EVO ORIN 4G/5G Usage#

4G/5G Module and SIM card installation:#

Disassemble the following panels:#

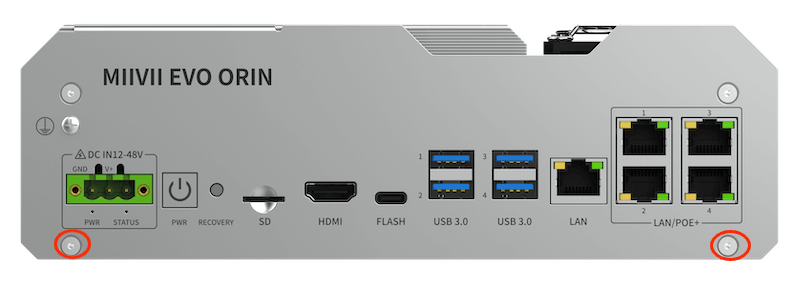

Front:#

#

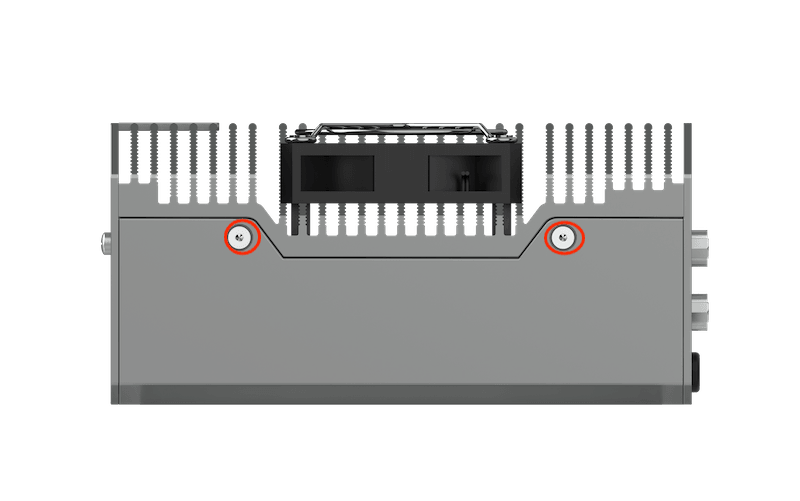

Side (left/right):#

#

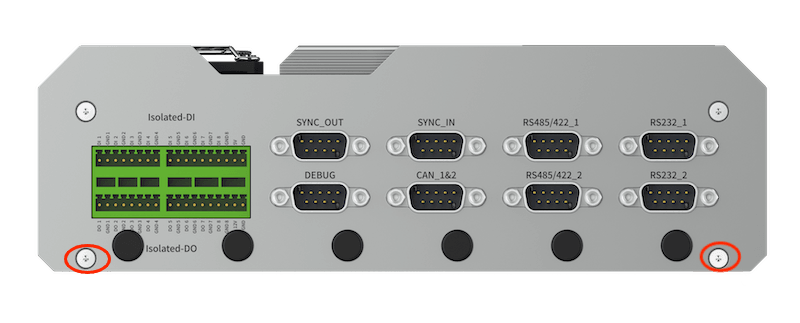

Back:#

#

4G/5G Module and SIM card installation:#

Installation steps:#

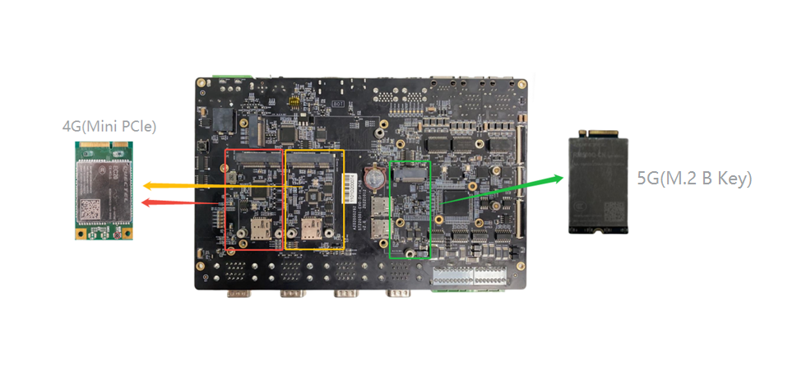

  1. Install the 4G/5G module on the seat shown in the picture, in which 4G is installed with two M2.56 Phillips with adhesive screws, and 5G is installed with one M36 Phillips with adhesive screws.

  2. Separate the  antenna adapter cables, IPEX connector snap on 4G/5G module, SMA female connector fixed to the device antenna interface

  3. Stick the thermal pad on the 4G/5G module (4G thickness: 6mm, 5G thickness: 8mm).

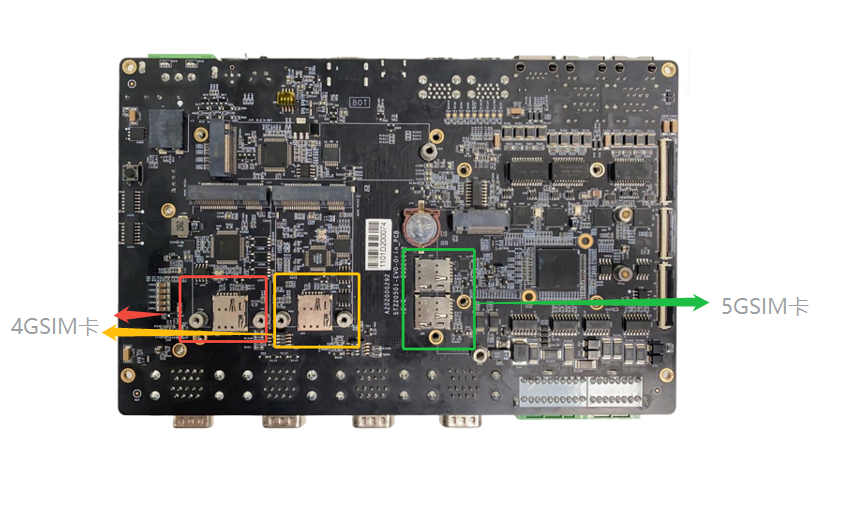

  4. Install the SIM card in the SIM1 or SIM2 holder.

  5. Fix the antenna to the antenna connector of the device.

Reference Photos：#

Required accessories:#

  • 4G module x1

  • SIM card x1

  • M2.5*6 Phillips screws with adhesive x2

  • IPEX to SMA antenna adapter

  • 6mm thermal conductor x1

  • 5G module x1

  • SIM card x1

  • M3*6 Phillips screws with adhesive x1

  • IPEX to SMA antenna adapter

  • 6mm thermal conductor x1

Notes:#

  • 4G/5G modules need to install thermal pads for heat dissipation

Mini PCIe 4G Support List#

NO.

Brand

Product NO.

Interface

Module function

Operating temperature

Spec

Note

1

Quectel

EC20-CEHCLG-MINIPCIE-CB

Mini PCIe

4G

-40ºC - 80ºC

  Speed: Max 130Mbps (Download)/Max 30Mbps (Upload)


M.2 B Key 5G Support List#

NO.

Brand

Product NO.

Interface

Module function

Operating temperature

Spec

Note

1

Quectel

RM520N-CN

M.2 B KEY

5G

-30 °C ~ +75 °C

SA DL 2.4 Gbps; UL 900 Mbps
NSA  DL 3.3 Gbps; UL 550 Mbps
LTE  DL 1.4 Gbps; UL 200 Mbps
WCDMA  DL 42 Mbps; UL 5.76 Mbps


2

Quectel

RM520N-GL

M.2 B KEY

5G

-30 °C ~ +75 °C

SA  DL 2.4 Gbps; UL 900 Mbps
NSA  DL 3.4 Gbps; UL 550 Mbps
LTE DL 1.6 Gbps; UL 200 Mbps
WCDMA DL 42 Mbps; UL 5.76 Mbps


Start-up settings#

The built-in driver of Miivii does not need any additional configuration, it is in the state of automatic startup and automatic dial-up.

Module configuration method#

Please note that if you are using an IoT SIM card, there will be a problem that the SIM card is bound to the device hardware, please confirm with the communication provider in advance.

The corresponding module drivers are integrated in the Mivin system image. After the module is installed, the system will automatically recognize it.

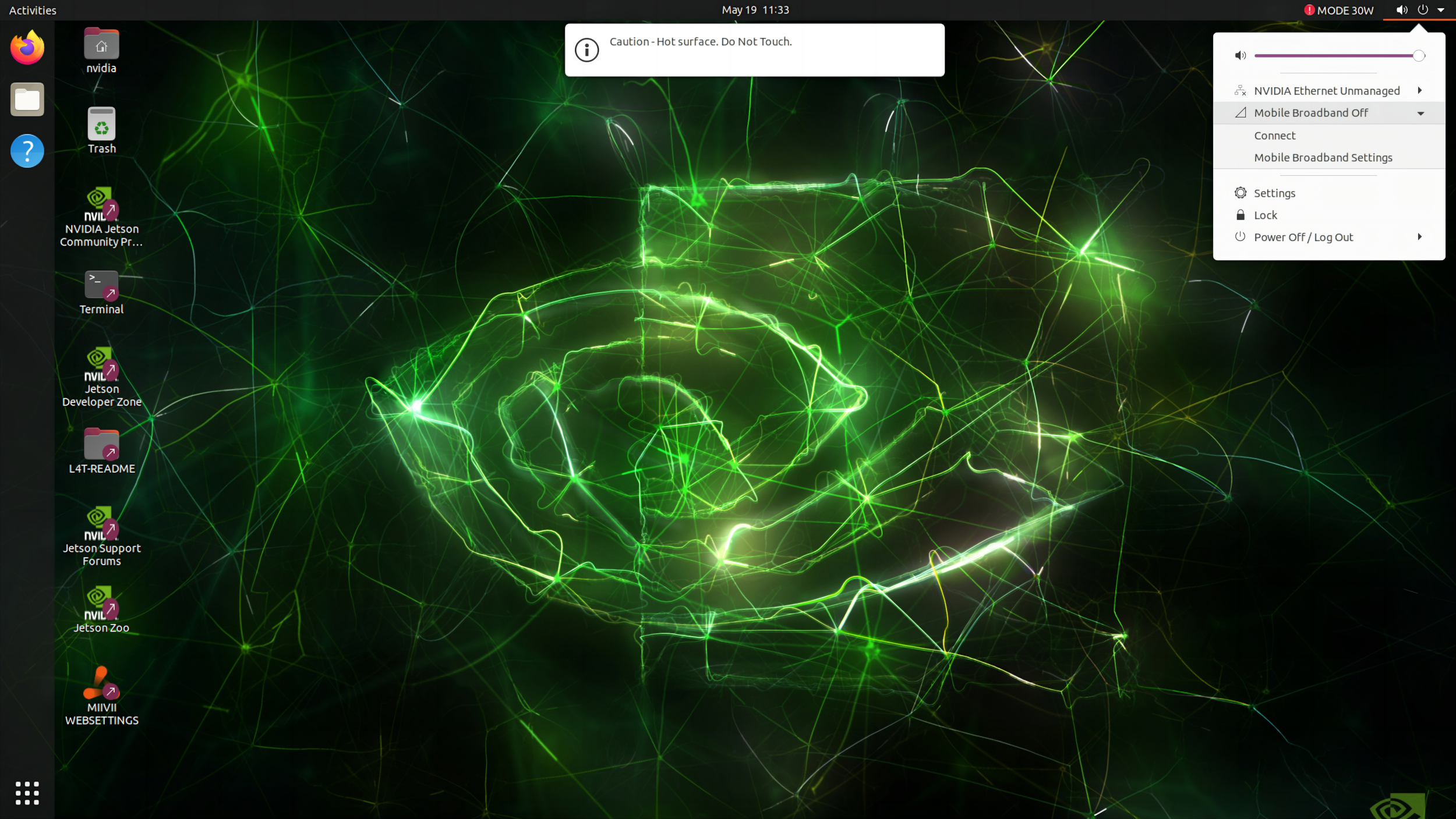

In the network connection icon at the top right of the desktop, find Mobile Broadban Settings.

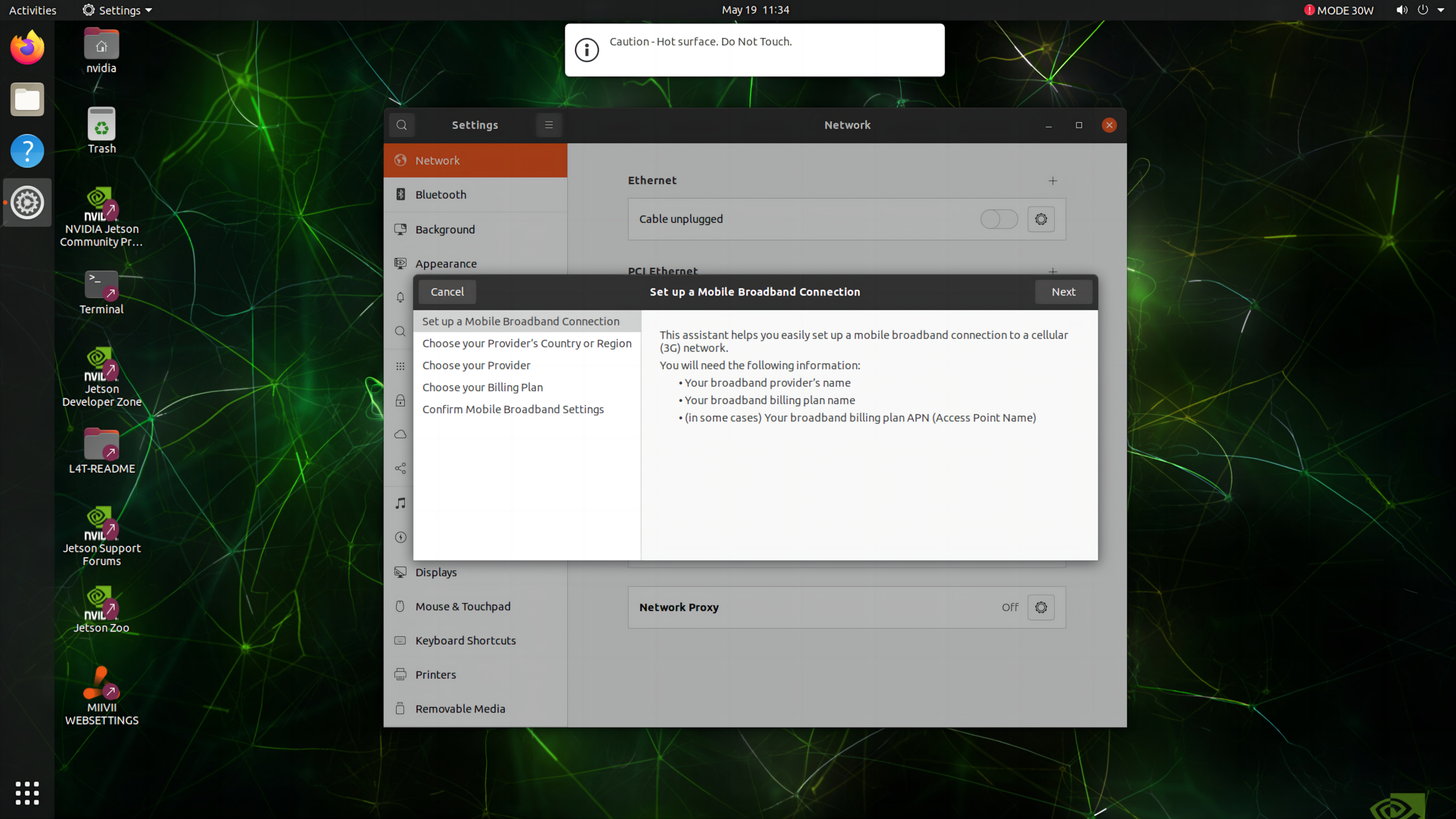

Add new connection.

Select Next.

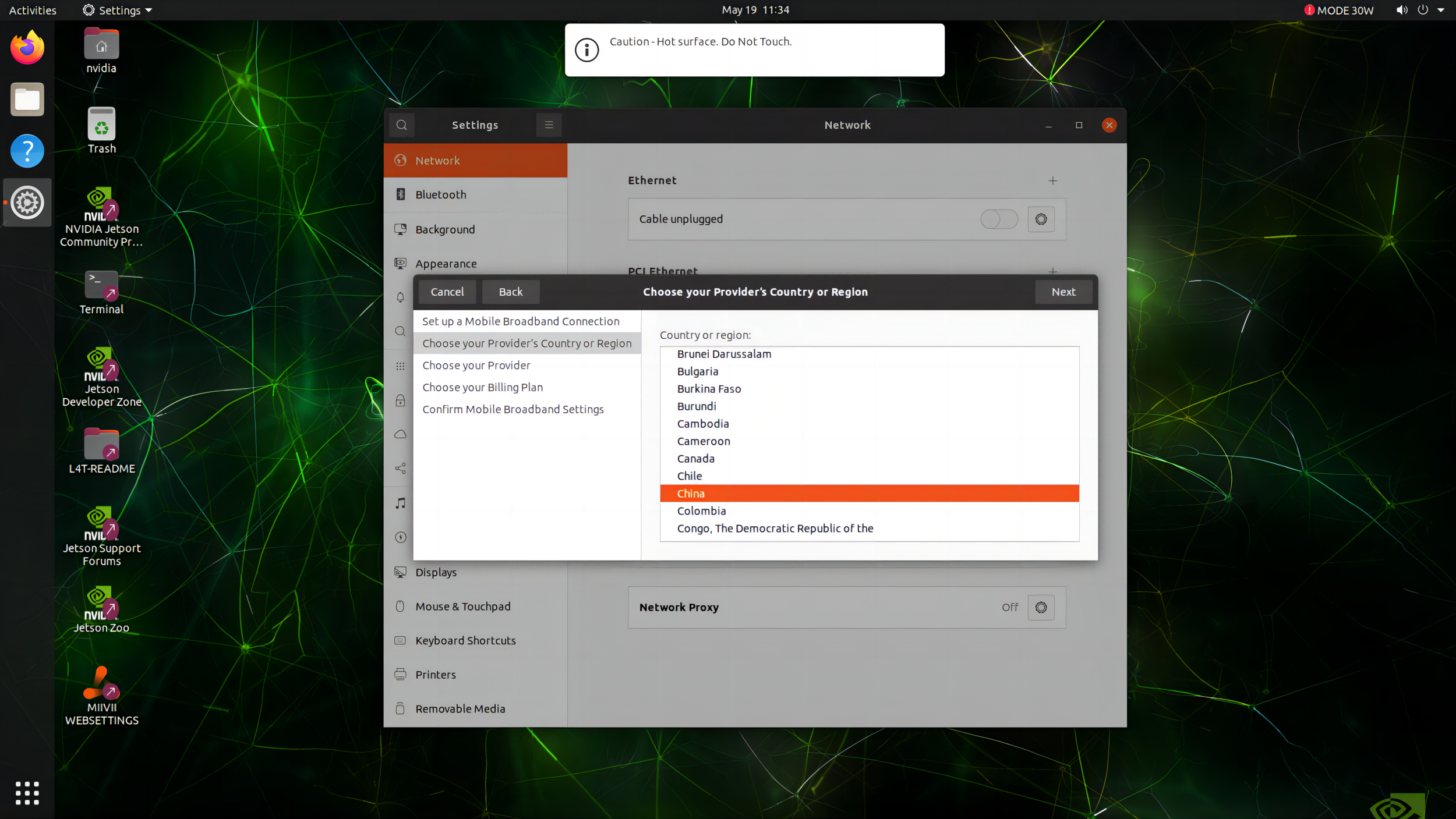

Choose your country.

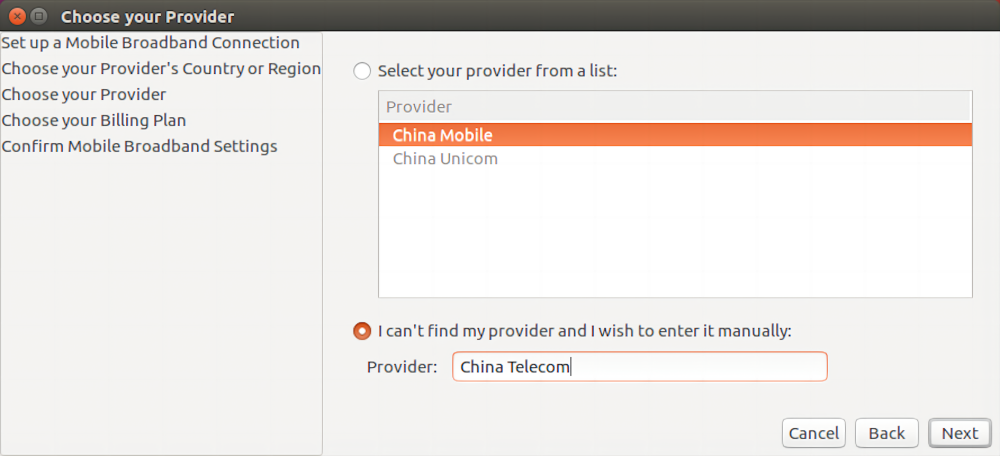

According to the SIM card, choose the corresponding carrier, eg  China Mobile, China Unicom.

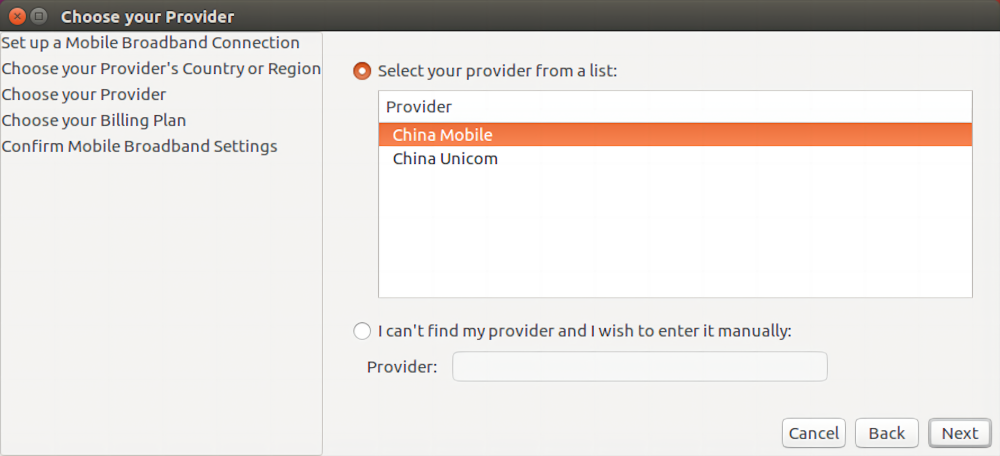

Select operator according to SIM card.

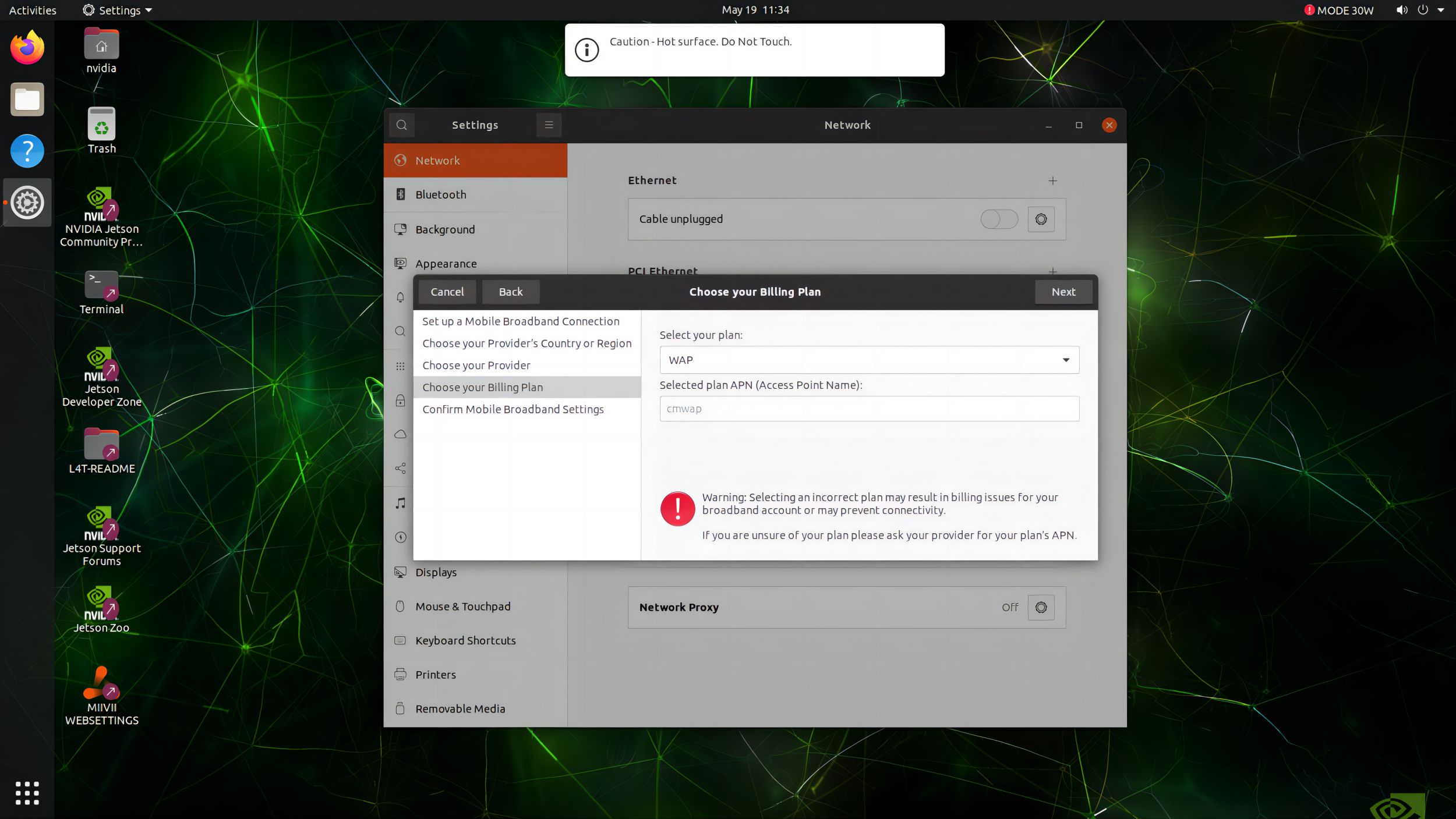

Choose your plan. This item is selected by default, just click Next.

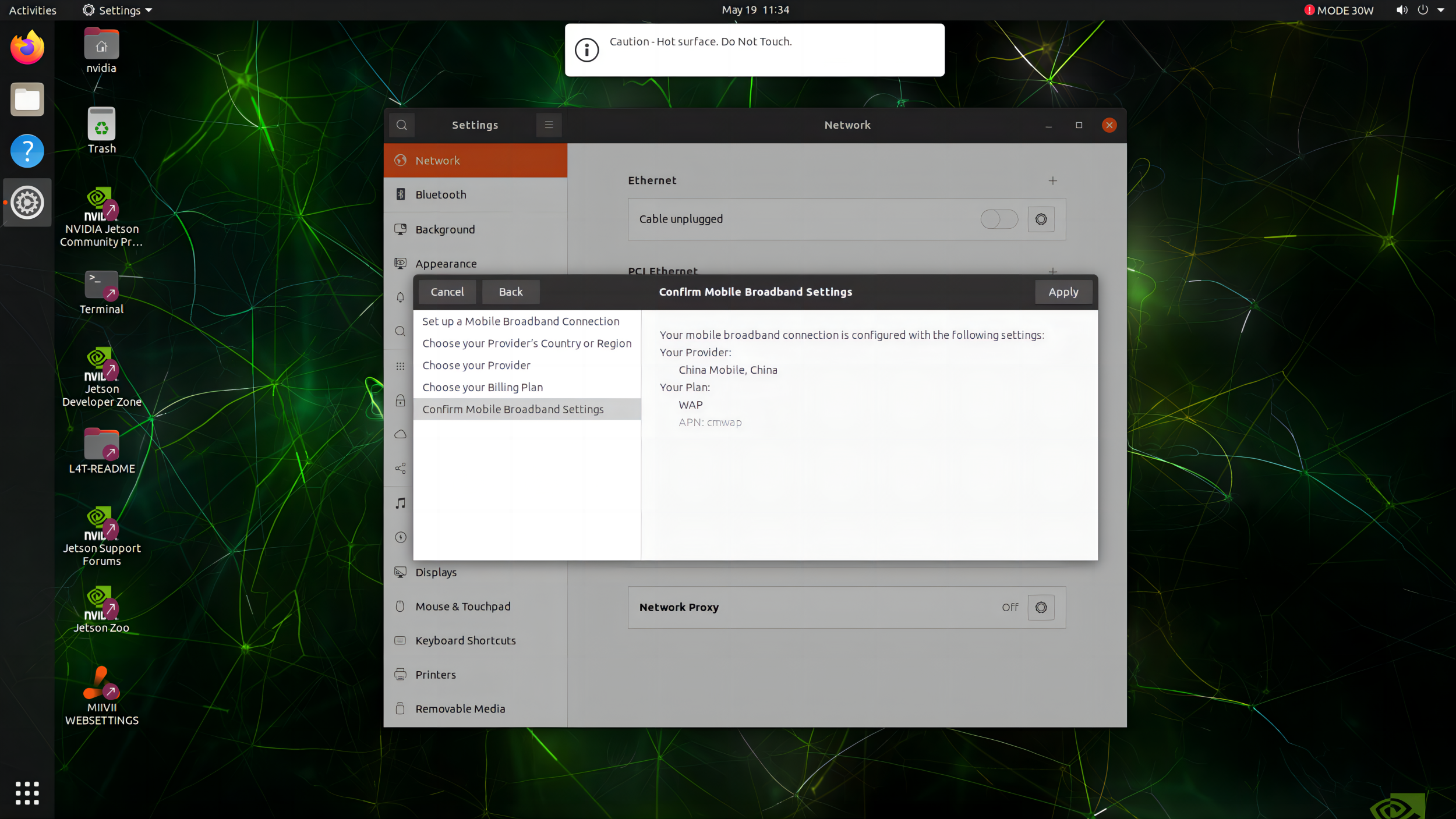

Check the created information, if correct, click Apply.

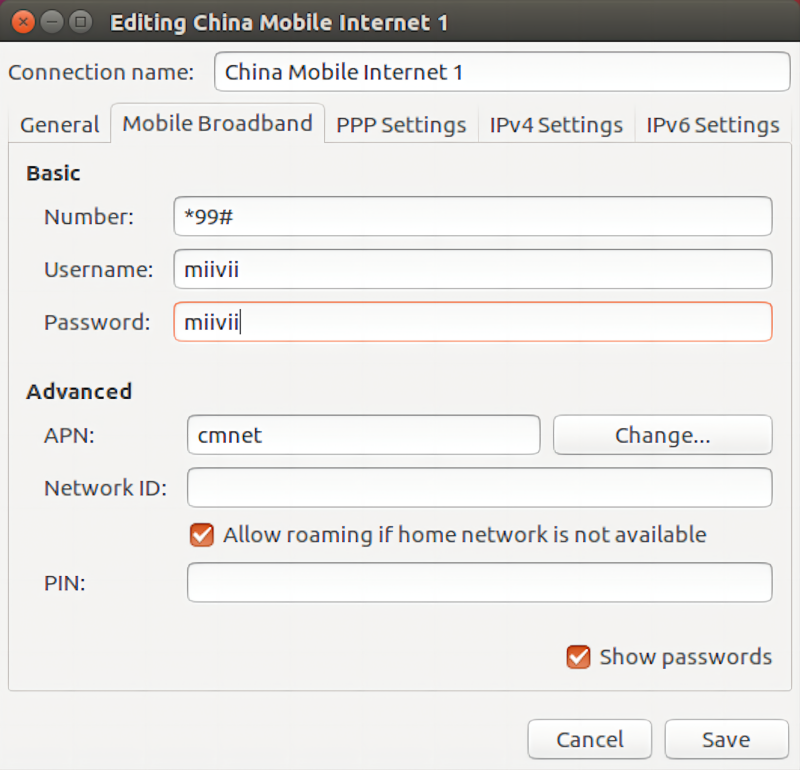

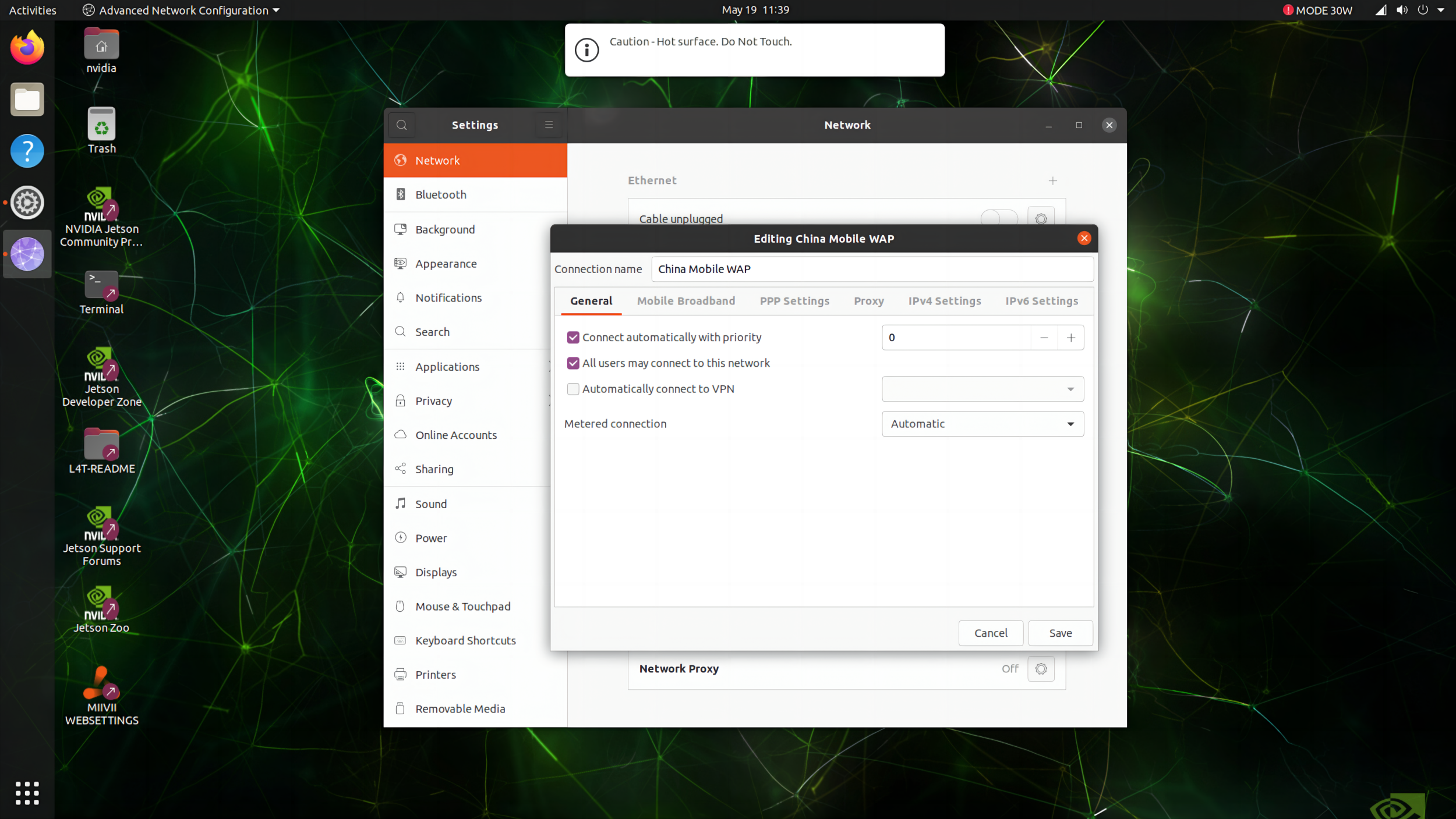

Set user name and password, click save.

After the network is created, select the newly created network connection from the network connection icon at the top right of the desktop, and you can go online normally.

**5G SIM Card **#

SIM 1

SIM 2

5G

Default

Support

For 5G， SIM 1 or SIM 2 can be  selected as follow

# SIM 2
SIM_SET = 2
# SIM 1
SIM_SET = 1
