MIIVII WEB SETTINGS Manual（Jetpack 5.x, 4.6.x ,4.5.x）#

Introduction#

MIIVII WEB SETTINGS  is a graphical tool based on web，for device settings .

Provides such functions as system status detection, remote access, remote login and so on.

This manual applies to  the MIIVII SETTINGS  of  Jetpack 5.x, 4.6.x ,4.5.x .

Access Method：#

Method1- Access shortcut on local desktop：#

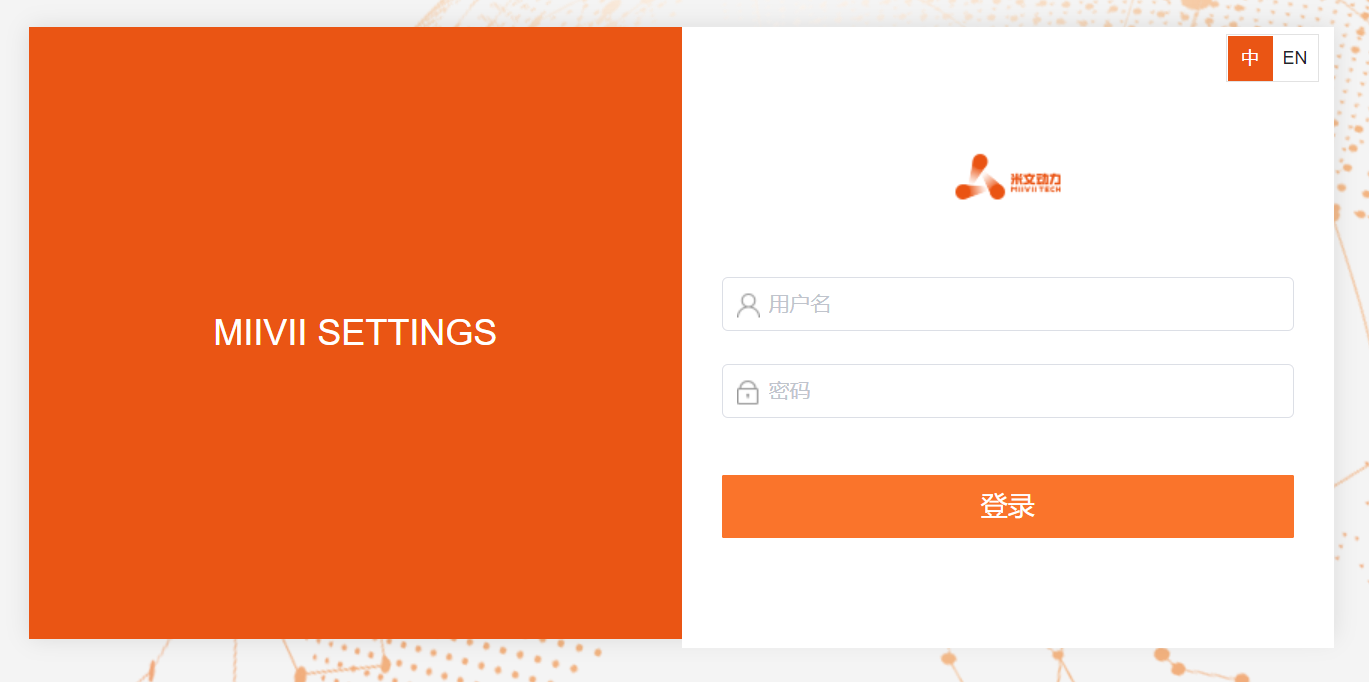

1 Double-click the desktop shortcut of  “MIIVII WEBSETINGS” ，open the application of MIIVII WEBSETINGS 1 The login user must have root permission .  The user without root permission cannot use it .

1 Default ID : nvidia  Default PWD: nvidia

Method2- Access local browser:#

1 Open local browser  1 Input  http://127.0.0.1:3000 1 The login user must have root permission .  The user without root permission cannot use it .

1 Default ID : nvidia  Default PWD: nvidia

Method3- Access  browser of client PC in same LAN:#

1 Open browser of client PC in same LAN 1 Input  “ The LAN IP of device  + port number”，port number is 3000  .  For example   http://192.168.1.100:3000 1 The login user must have root permission .  The user without root permission cannot use it .

1 Default ID : nvidia  Default PWD: nvidia

Function Description#

Switching between Chinese and English interface#

In the upper right corner of the page ，click the switch button   , The interface can be switched between Chinese and English .

（Chinese/English switching is available from MWS V2.5.x and later versions）

System Status#

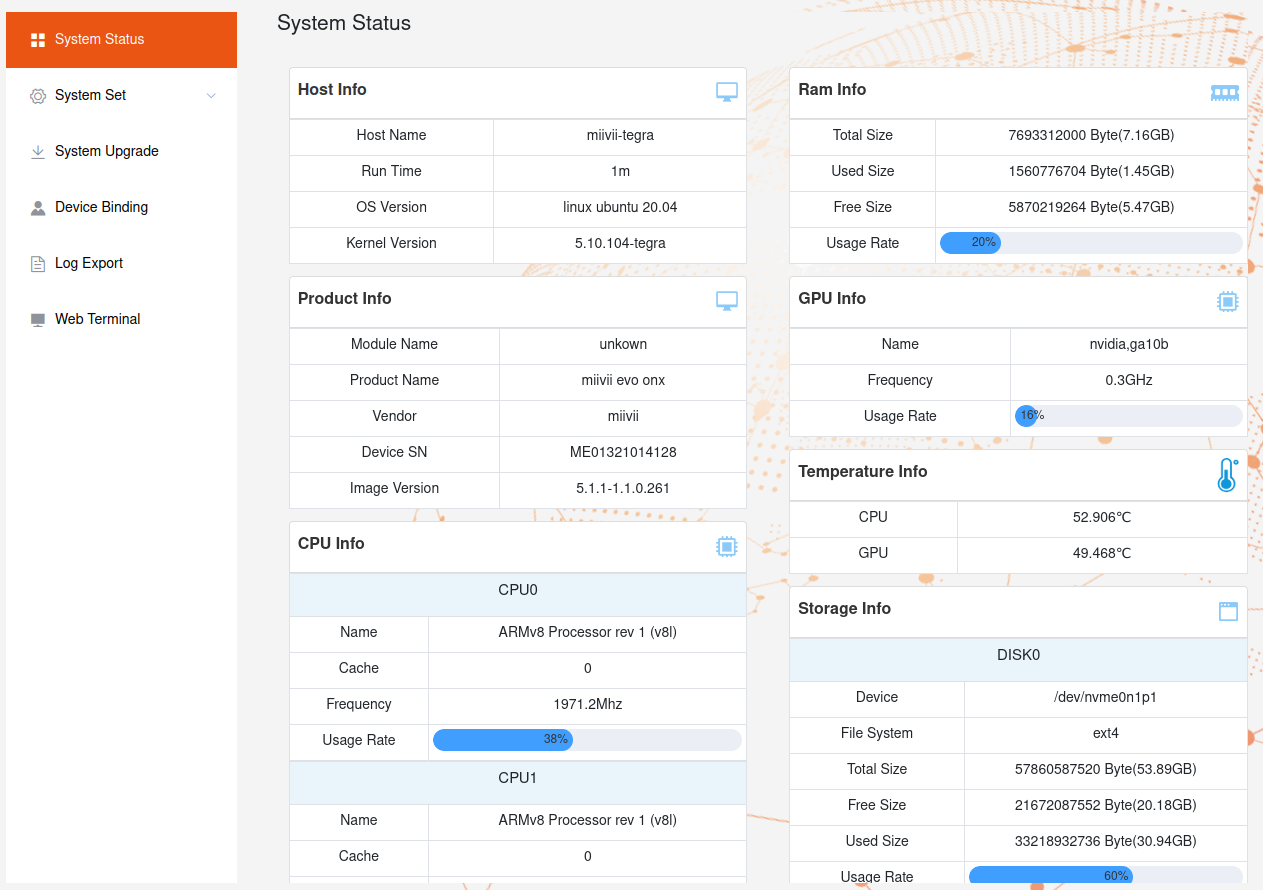

View basic information about the current system, such as CPU usage, memory usage, and storage usage.

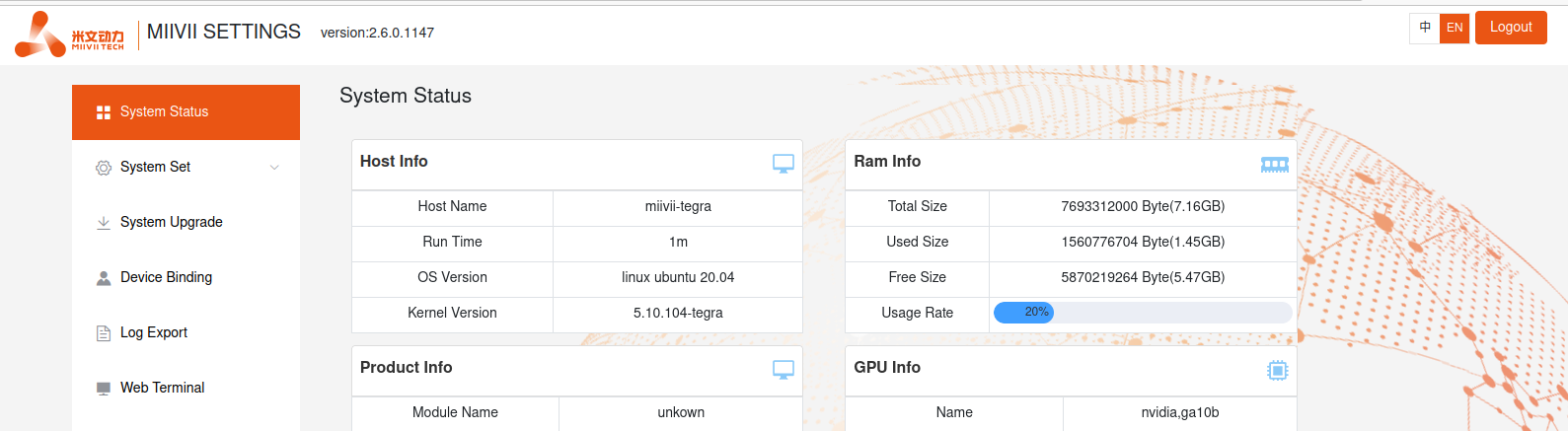

1 Click “System Status” on the left menu bar to enter the page.

You can also view the system version on the CLI（）：

cat /etc/miivii_release
APEX 4.2.2-1.5.0

System Settings#

Set up basic system functions, such as system timing Settings,and so on.

SyncSettings (system timing Settings)#

1 Click the left menu bar “System Set - SYNC Set” to enter the page.

1 Choose  Timing mode ： NTP/GPS/NONE

2 “NTP”  is the default mode.  NTP network timing mode:  - The device is connected to the network and timed by the NTP service.  The device can be used as a synchronous source to time and synchronize the sensor.  2 “GPS” is  GPS  timing mode: - In this case, the device is connected to GPS and timed by GPS.  The device can be used as a synchronization source to time and synchronize the sensor   2 “None” is the asynchronous mode. In this case, the device is not timed but can be used as the synchronization source.   1 Set Sync out ：

2 Adjust the Sync out output frequency. Note that this is not the GMSL frequency.

  • “EVO NX ,EVO TX2” , “S2” don’t have the function of SYNC

  • “LIte xxxx” product series don’t have the function of SYNC

Configuration file path：

/opt/miivii/config/sync/sync.cfg

  • The timing mode is implemented by modifying the X value of “sync_type:X”.

    • 0: GPS timing mode

    • 1: NTP network timing mode

    • 2: Asynchronous mode

  • Adjust the Sync out frequency by changing the XX value of “SYNC_out_freq :XX”.    This adjustment supports only integers.

cat /opt/miivii/config/sync/sync.cfg
sync_out_freq:25
sync_type:2
/*
note:
sync_out_freq---the frequency is 25 for sync out time
sync_type---0 is for GPS calibrate time
1 is for SYS calibrate time
2 can not calibrate time

GPIO Set#

1 Click the left menu bar “System Set-GPIO Set” to enter the page. 1 Choose to set  the  output voltage value.

Note：Only “EVO ONX、EVO ONO” have the function of GPIO Set.

System Upgrade#

MiiVii provides OTA upgrades to equipment systems.

1 Click the left menu bar “System Upgrade” to enter the page.

1 Click “Check Upgrade” , If have new version , click “”

Device Binding#

MiiVii  provides the EdgeService cloud service. Enabling the cloud service requires binding devices.

1 Click the left menu bar “Device Binding” to enter the page.

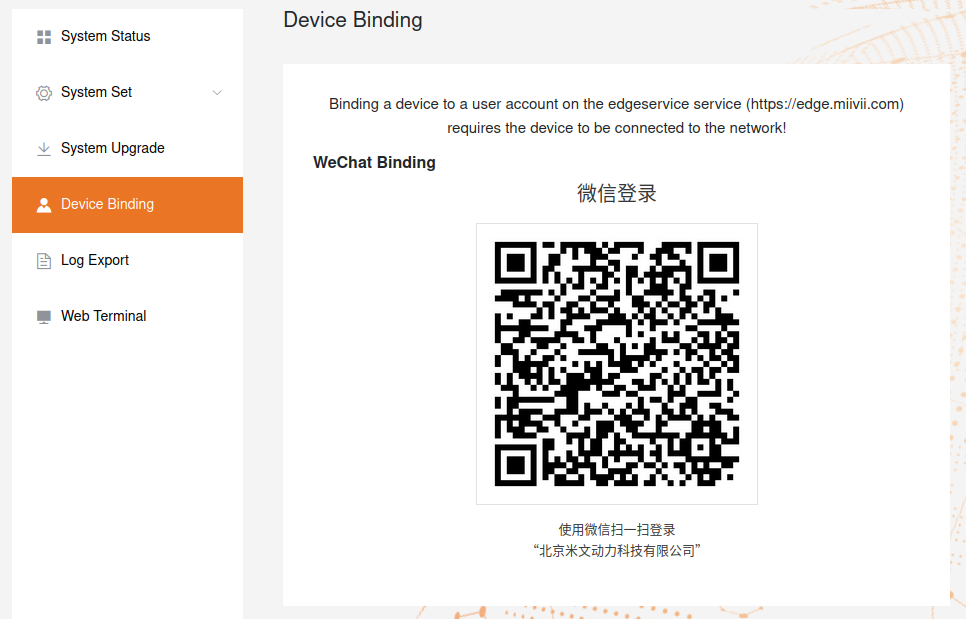

1 Bind the device as prompted. Use wechat to scan.

The log export#

System run logs are stored in logs in /var/log/，The Log Export function allows you to package and download logs to a local PC.

1 Click the left menu bar “Log Export” to enter the page.

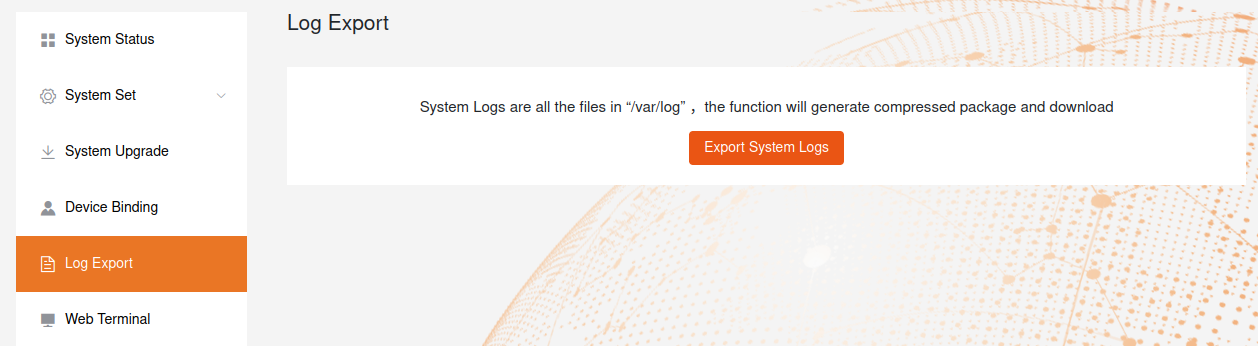

1 Click “Export System Logs” to complete.

WEB Terminal#

MiiVii Web Settings provides the remote terminal function through the WEB

1 Click “WEB Terminal” on the left menu bar to enter the page.

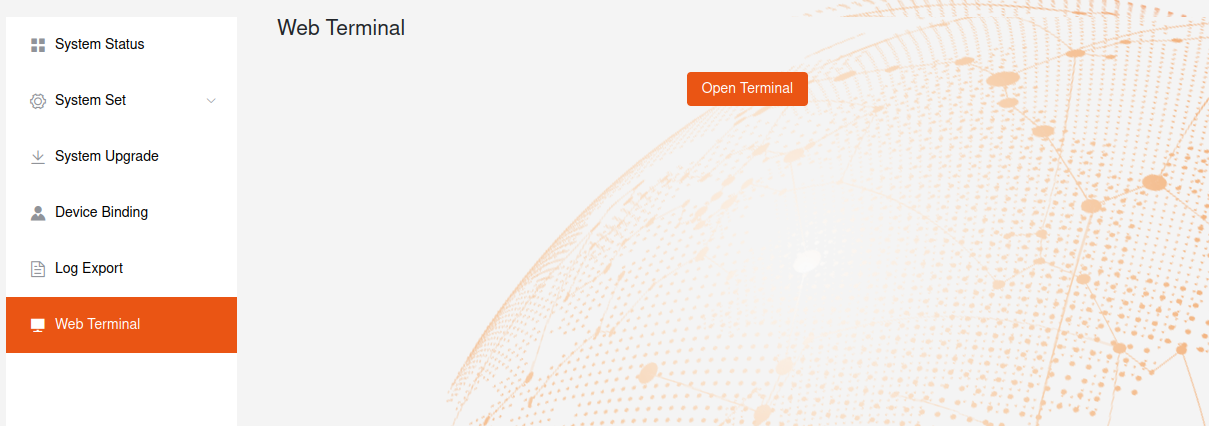

1 Click “Open terminal” to open the WEB terminal (as shown below)
