Apex Xavier II+ Power Interface#
Definition of Aviation Power Connector Pinout#
No |
引脚 |
描述 |
|---|---|---|
1 |
VIN |
DC power supply (positive) |
2 |
GND |
DC power supply (negative) |
3 |
VIN |
DC power supply (positive) |
4 |
GND |
DC power supply (negative) |

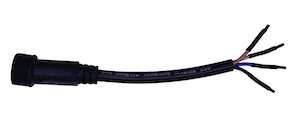

Definition of Aviation Power Adapter Cable Pinout#
颜色 |
引脚 |
描述 |
|---|---|---|
黑 |
GND |
DC power supply (negative) |
蓝 |
GND |
DC power supply (negative) |
灰 |
VIN |
DC power supply (positive) |
棕 |
VIN |
DC power supply (positive) |
Hardware Specifications#
输入 |
规格 |
|---|---|
DC |
9～36V |
