EVO ORIN WIFI Usage#
WIFI Module installation:#
Disassemble the following panels:#

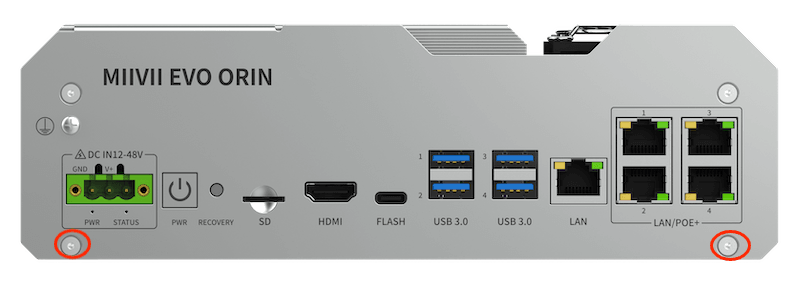

Front:#
#

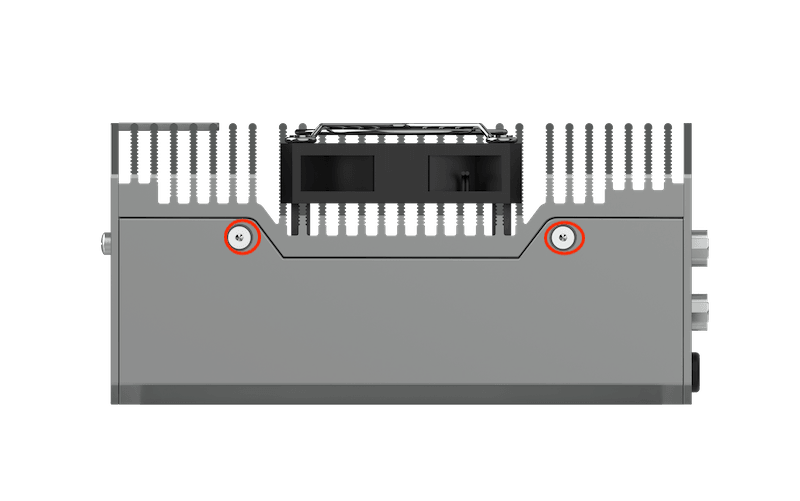

Side (left/right):#
#

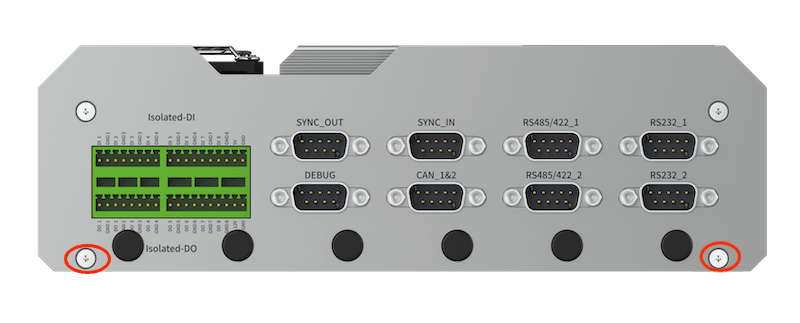

Back:#
#
WIFI Module installation:#
Installation steps:#
First, connect the WIFI module adapter board to the socket as shown in the figure.
Mount the WIFI module on the adapter board and install it with 2 M2.5*6 cross-recessed screws with glue.
Separate the antenna adapter cable, IPEX interface snap on the WIFI module, SMA female fixed to the equipment antenna interface
4.Fix the antenna to the antenna connector of the device.
Reference Photos：#
Required accessories:#
WIFI module x1
M2.5*6 Phillips with adhesive screws x2
IPEX to SMA antenna adapter
Mini-PCIe WIFI Support List#
Brand |
Product NO. |
Interface |
Module function |
Operating temperature |
Standard |
Spec |
Note |
|---|---|---|---|---|---|---|---|
Azurewave |
AW-CB161H |
Mini PCIe |
WIFI+BT |
0ºC - 70ºC |
Wifi 802.11a/b/g/n/ac BT:4.0 |
WIFI rate ≤433.3Mbps |
Wireless Setting#
WiFi Setting#

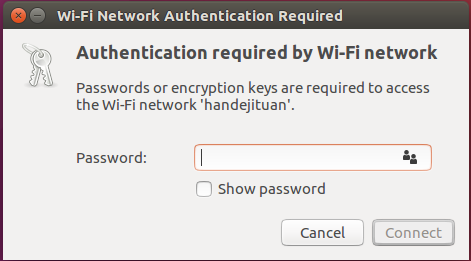

Click the network icon in upper-right corner of the desktop. Find the name of your WiFi network and click on it. Enter your password and click ‘Connect’.
WiFi Connection
