Apex Dual Orin Digital Output Usage#

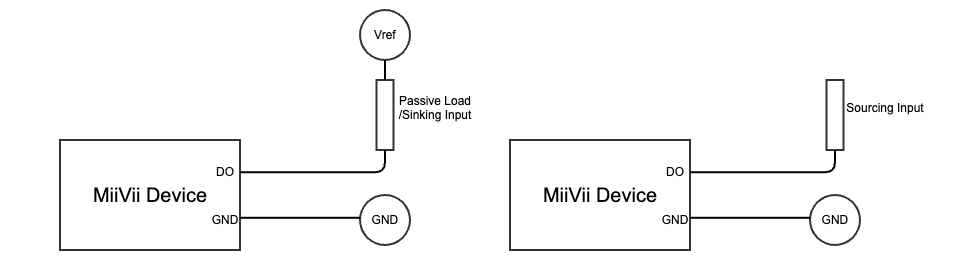

Hardware Connection#

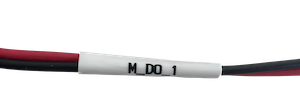

Function Label

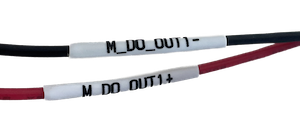

Pin Label
Hardware Specification#
Description |
|
|---|---|
Vref |
Voltage to be supplied externally at the user side. |
Passive Load |
E.g. LED, Relay, Solenoid Valve. |
Active Sourcing Input |
Active Sourcing Input, DI of PLC, e.g. |
Specification |
|
|---|---|
Vref |
3.3~36V |
Function and Device Node#
Function |
Device Node |
|---|---|
M_DO_0 |
gpio286 |
M_DO_1 |
gpio287 |
M_DO_2 |
gpio288 |
M_DO_3 |
gpio289 |
S_DO_4 |
gpio310 |
S_DO_5 |
gpio313 |
Usage#
The example of using the GPIO interface is as follows.
# Use root
sudo su -
# Set output to high
echo 1 > /sys/class/gpio/<device node>/value
# Example: echo 1 > /sys/class/gpio/gpio339/value
# Set output to low
echo 0 > /sys/class/gpio/<device node>/value
# Example: echo 0 > /sys/class/gpio/gpio339/value
